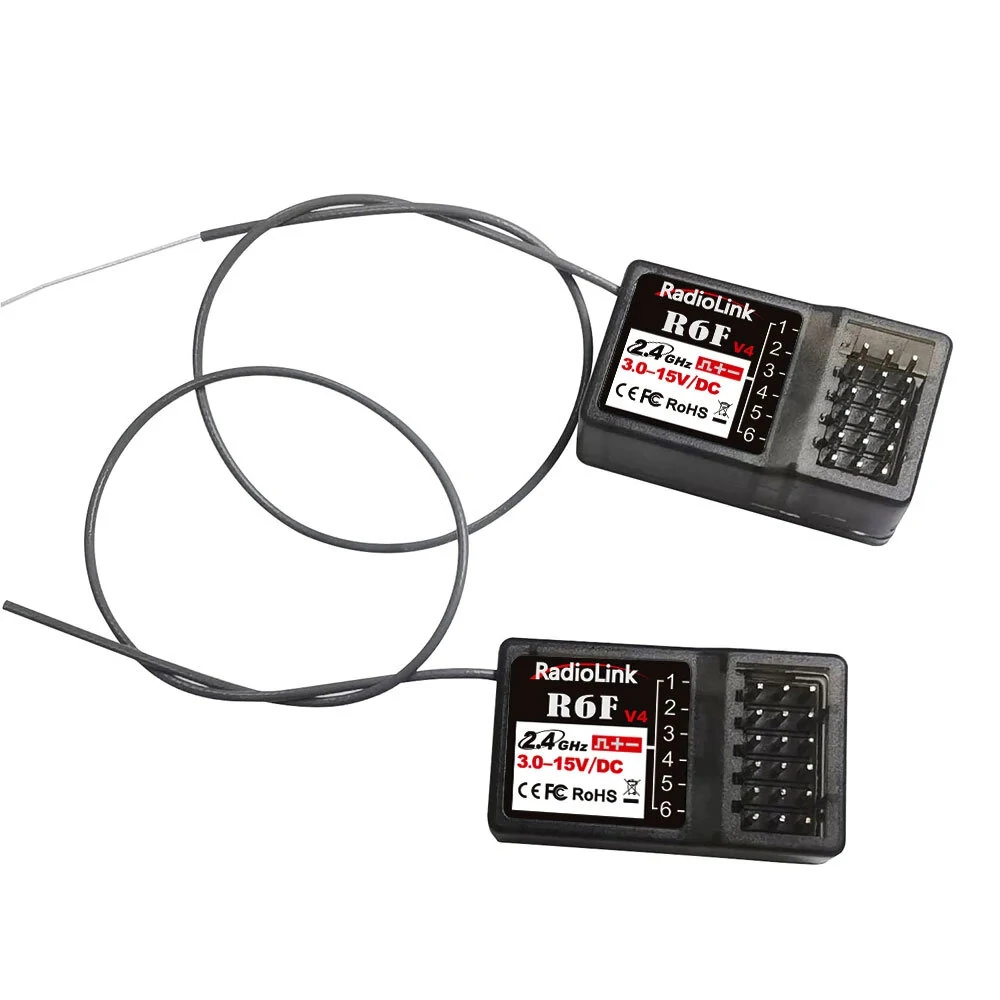

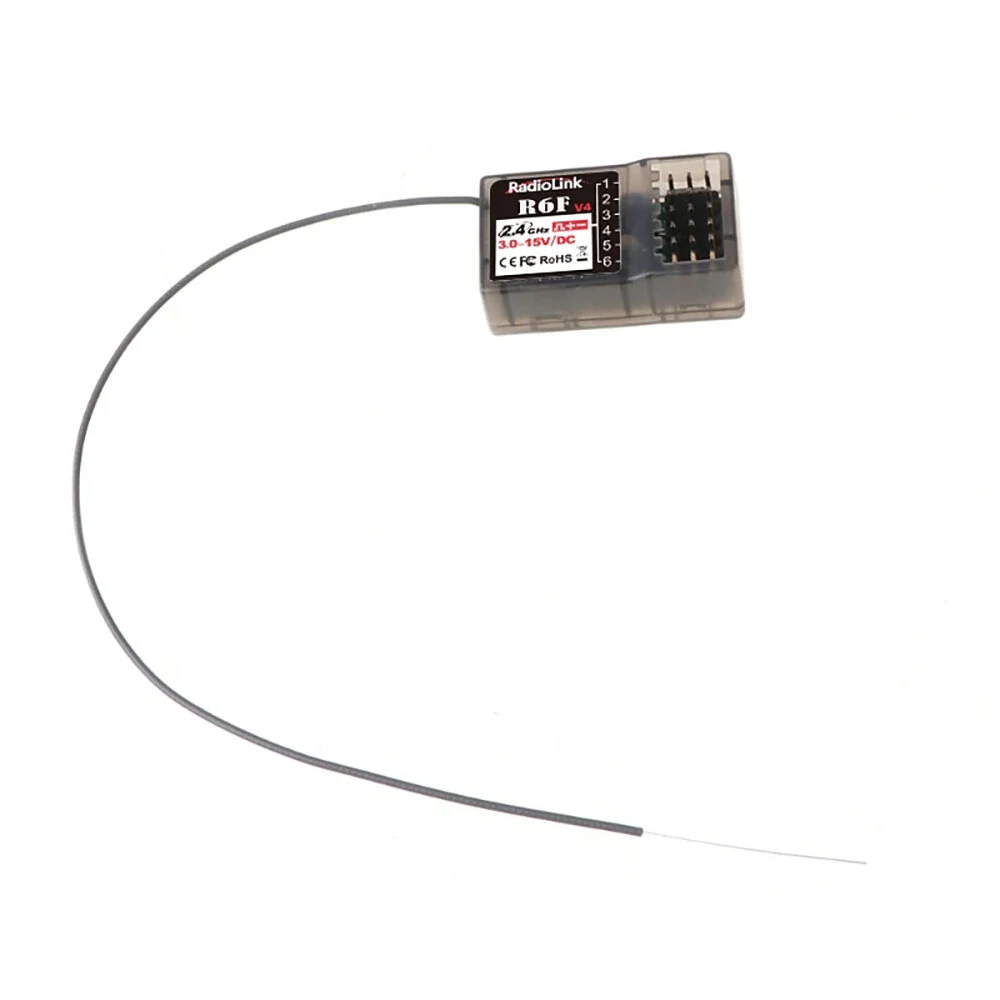

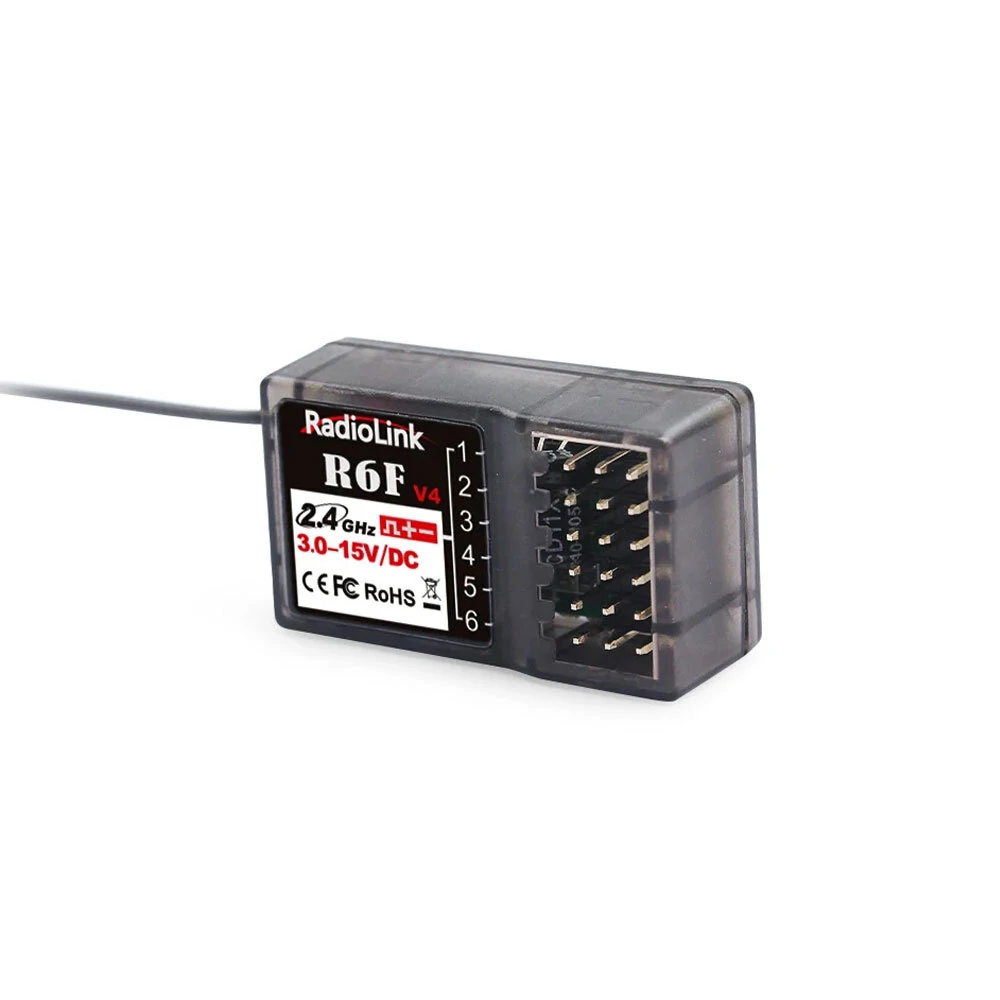

Radiolink R6F V4 2.4GHz 6CH FHSS Long Range Receiver for RC Car Boat RC6GS V2/RC4GS V2/T8FB/T8S Radio Transmitter

Radiolink R6F V4 2.4GHz 6CH FHSS Long Range Receiver for RC Car Boat RC6GS V2/RC4GS V2/T8FB/T8S Radio Transmitter

R6F Receiver Specifications:
Brand: RadioLink

Model: R6F V4
Channel: 6
Model: Cars/boats
Control Distance: more than 400 meters
Spread Spectrum: FHSS
Antenna L
Work Current: 30mA
Power Supply: 3~15V DC
RF Power: <10dbm
Channel Resolution: 4096
Size:35*20*13mm
Weight: 6g
Features:
* 6 Channels: 6 channels receiver suitable for Radiolink’s transmitter RC4GS/RC4GS V2/RC6GS.RC6GS V2/RC4G/T8FB/T8S/RC8X
* FHSS Signal Spread Spectrum: Adopt FHSS spectrum anti-interference technology, keep the signal stable, the size only 35*20*13mm.
* Long Distance Control: R6F receiver with amazing distance control, more than 400 meters on the ground.(The actual control distance depends on the environment).
* Support HV servo: DC R6F rc car and boat receiver support 3~15V of servo.

How to Match Code With Transmitter:
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Turn on the transmitter, then power on the R6F.
3. There is a black button on the R6F, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.
Package Included:
1x R6F Receiver
