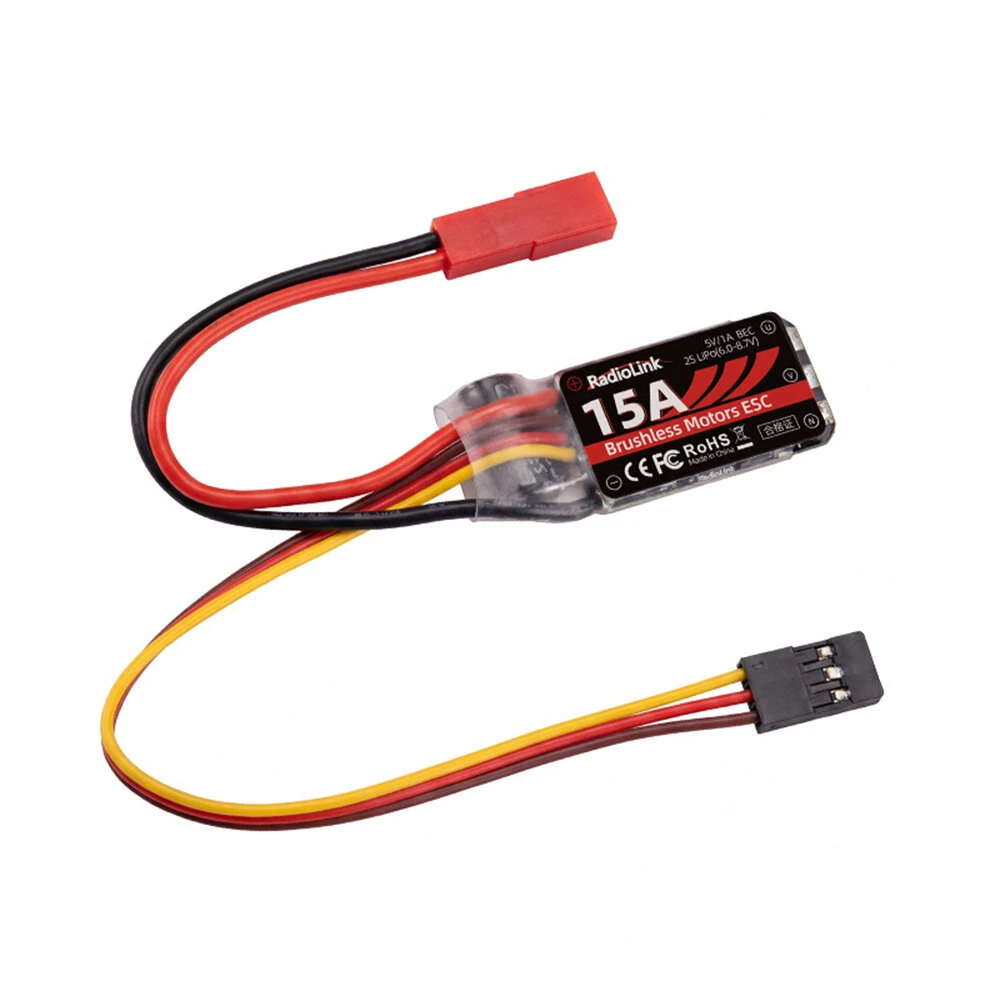

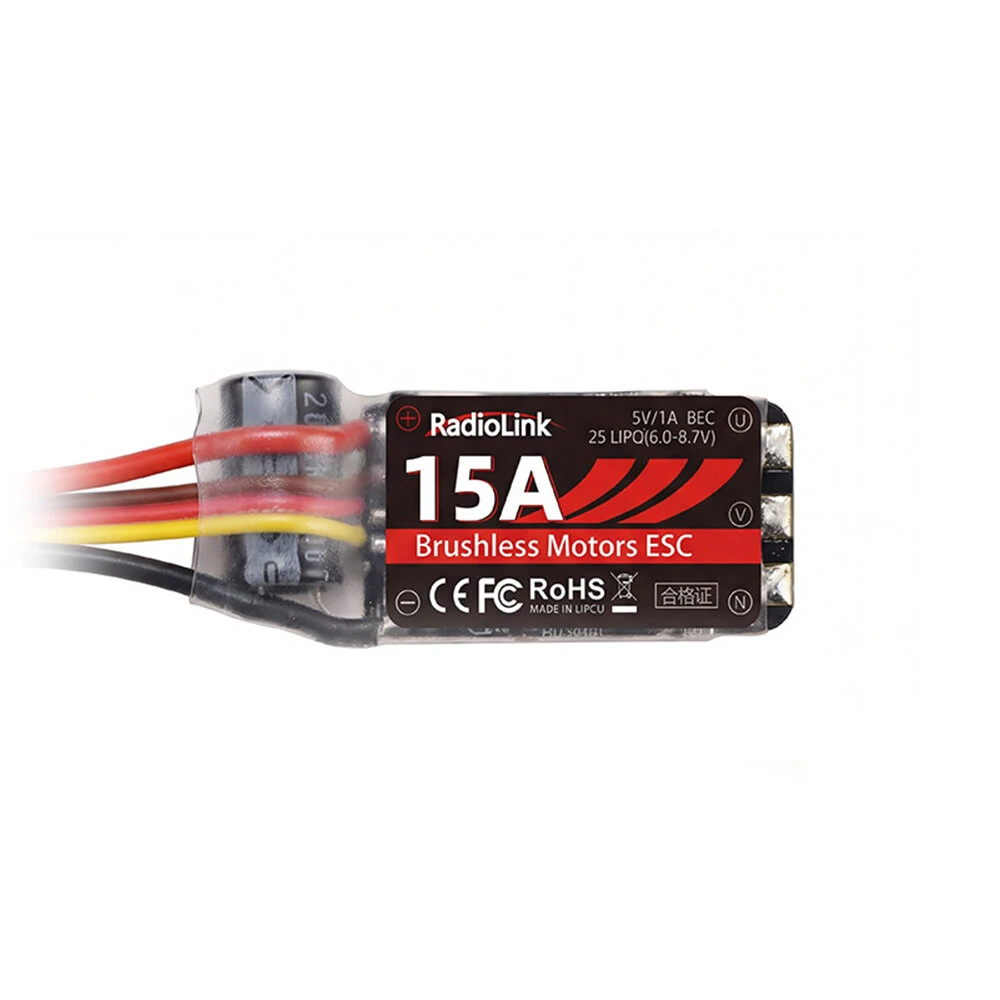

RadioLink RE15A 2S Brushless ESC With 5V/2A BEC PWM & Dshot Dual Protocol For RadioLink A560 SU27 D460 RC Airplane

Specification:

Brand: RadioLink

Product Name: Brushless ESC

Product Model: RE15A 2S

Weight: 7.4g(0.26oz)

Dimensions: 40*16mm(15.75″*6.3″)

Type: Brushless, Sensorless

Input Voltage: 6.0 to 8.7V (2S Battery)

Output Voltage: Equal to Input Voltage

Continuous Current: 15A

Peak Current: 20A (10 seconds)

BEC Output Voltage: 5V

BEC Output Current: 2A

Supported Models: Fixed Wing

Motor Timing: The default timing angle is Medium (15°), with adjustable timing angles of 0°, 7.5°, 15°, 22.5°, and 30°.

Protocol: PWM, Dshot300

MCU: EFM8BB21F16G

ESC Firmware: E_H_30_REV16_7.HEX

Configuration Software: BLHeliSuite.exe

Throttle Range: 1000-1500-2000 Adjustable

Features:

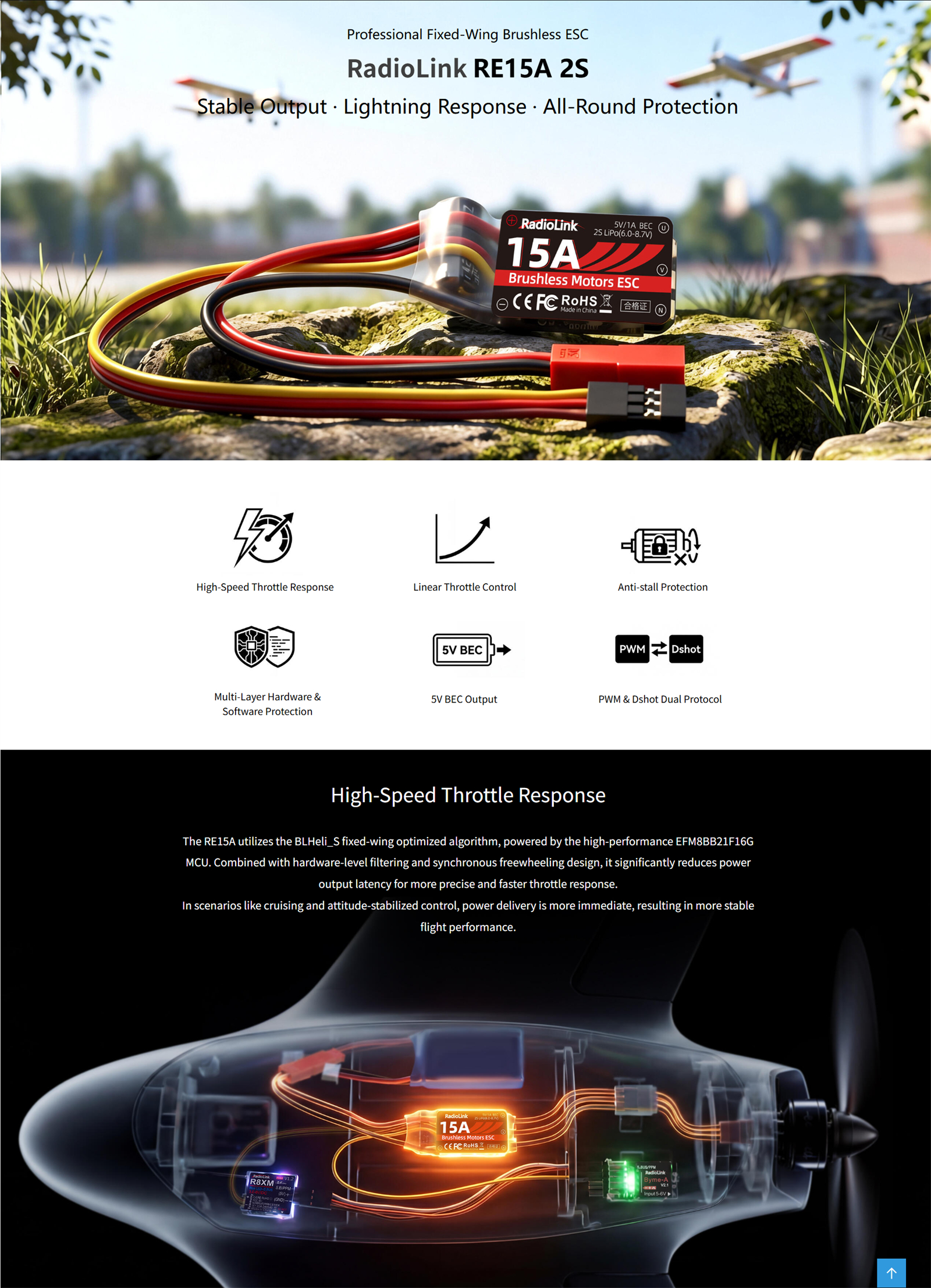

– Precise Throttle Control: Optimized BLHeli_S algorithm ensures accurate linear throttle response for smooth flight operations.

– Multi-Layer Safety Protection: Incorporates temperature, low-power RPM, and stall protection systems for enhanced flight security.

– Stable 5V BEC Output: Provides reliable power for receivers and servos, ensuring stable component functionality.

– Multiple Protocol Compatibility: Supports both PWM and Dshot protocols for widespread fixed-wing model adaptability.

– Adjustable Motor Timing: Fine-tuned motor timing allows flexibility for various high-RPM motors and flight conditions.

Package included:

1 x RE15A 2S Brushless ESC
