Radiomaster ERS-CV01 Precision Plug-and-Play Cell Voltage Sensor for Compatible ExpressLRS PWM Receivers

Radiomaster ERS-CV01 Precision Plug-and-Play Cell Voltage Sensor for Compatible ExpressLRS PWM Receivers

Description:

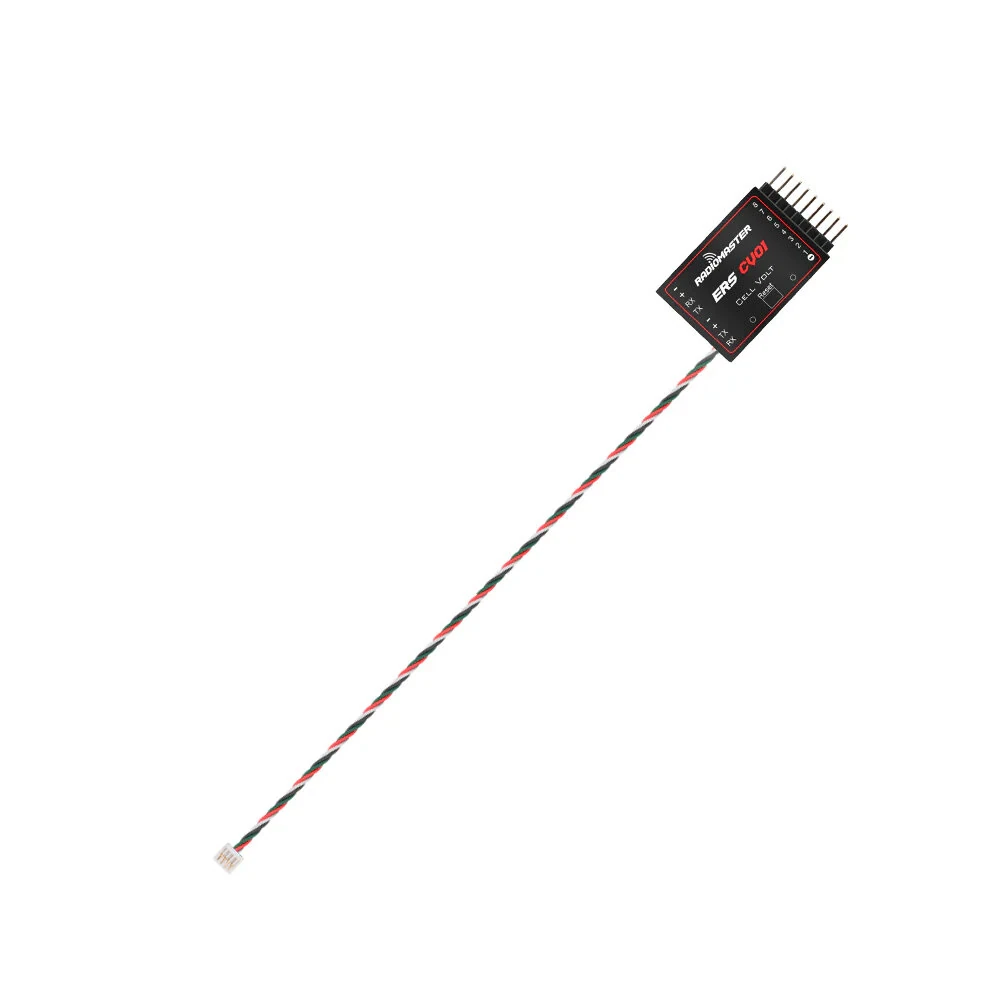

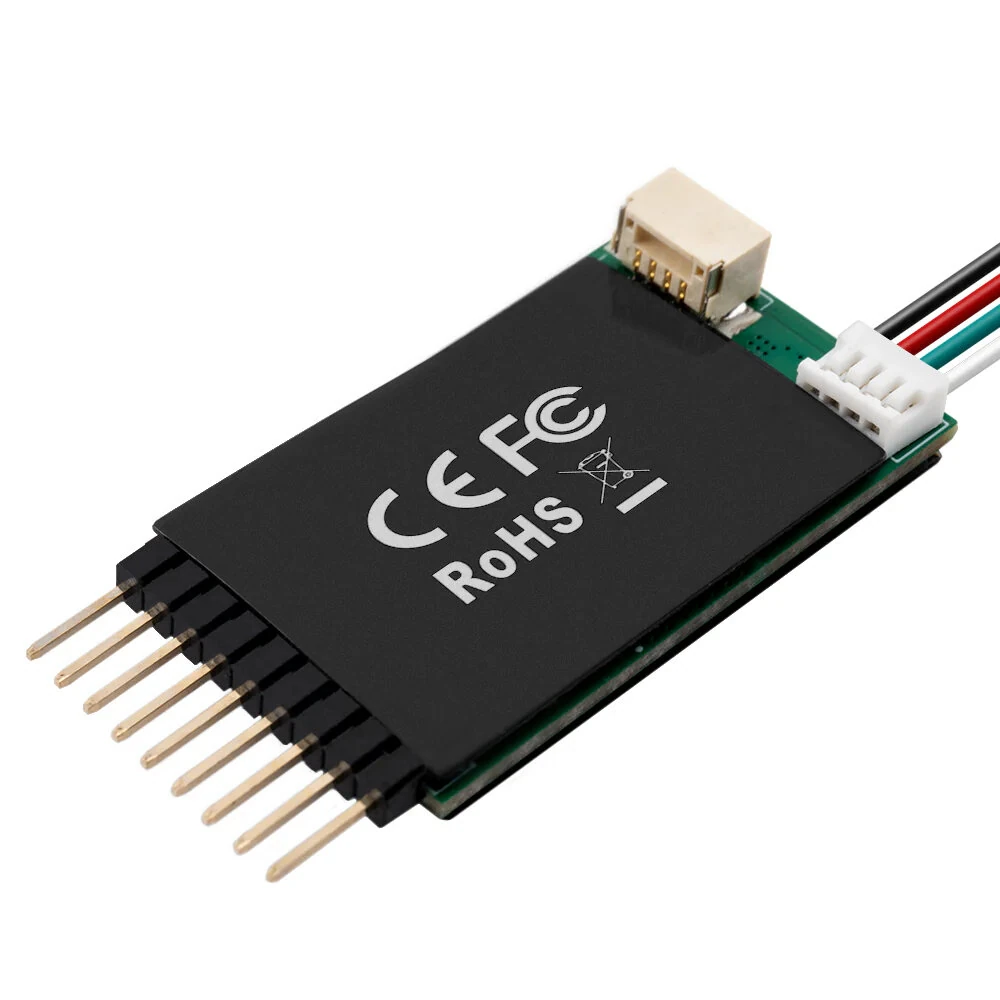

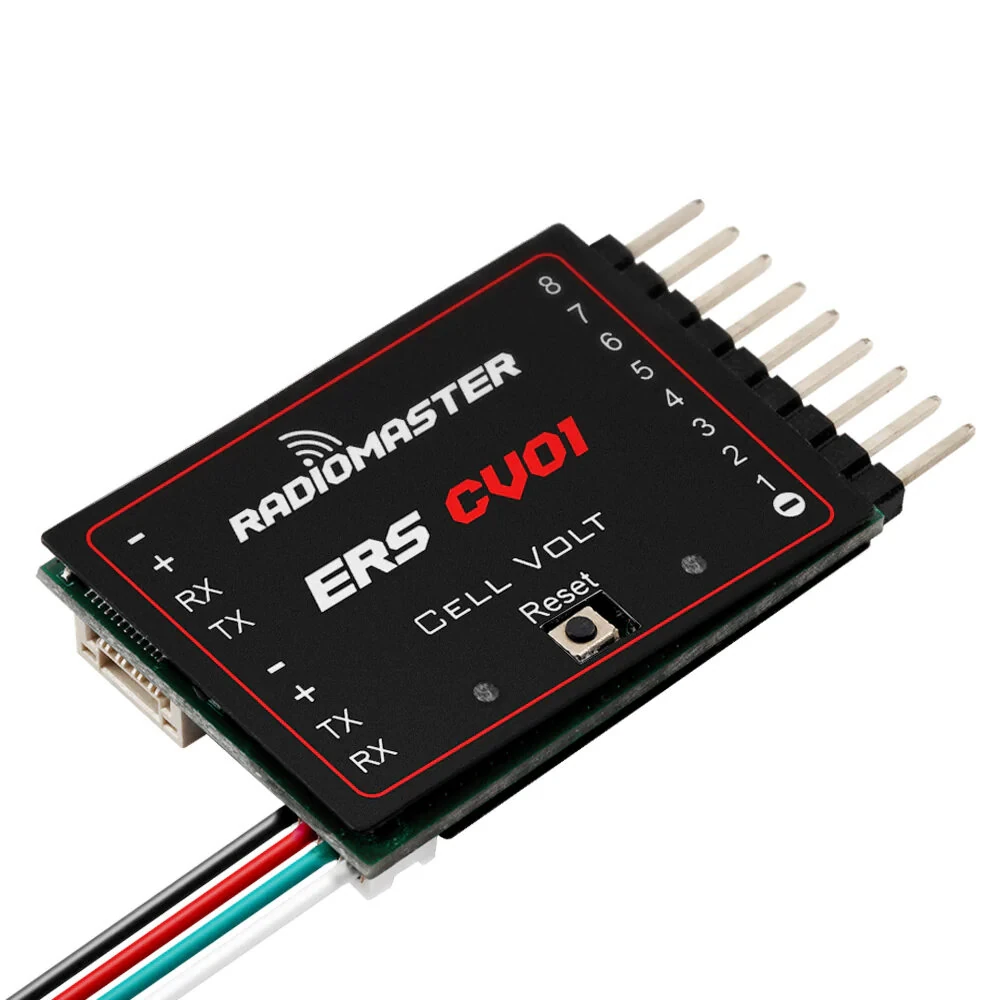

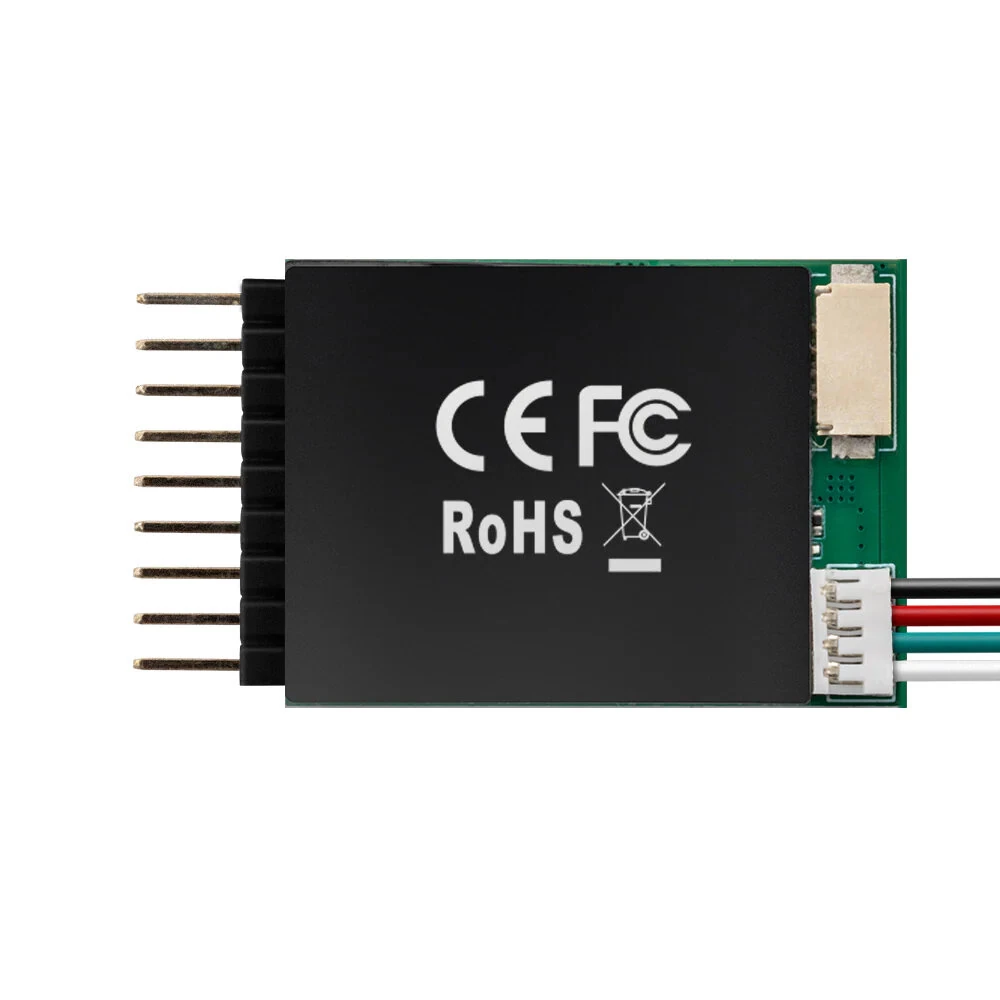

The ERS-CV01 Cell Voltage Sensor is a compact, plug-and-play telemetry module for use with compatible ExpressLRS receivers. Just connect the sensor to your battery’s balance port, and it will monitor the real-time voltage of each cell, transmit the data via the ExpressLRS receiver, and display it directly on your EdgeTX radio.
As part of the ERS sensor family, the ERS-CV01 also supports pass-through expansion, allowing easy daisy-chaining with additional telemetry modules.
Feature:
1. Real-Time Per-Cell Voltage Monitoring: Instantly view individual cell voltages through your radio for improved battery safety and performance.

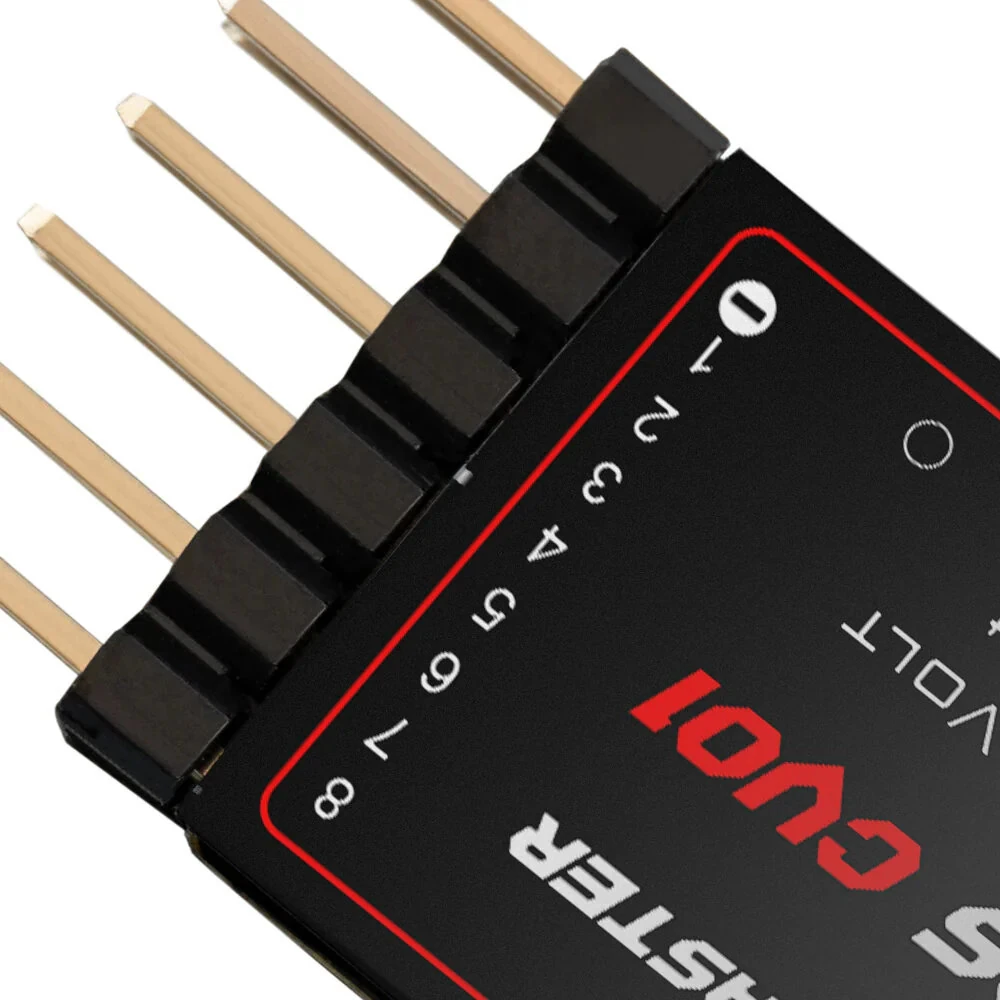

2. Plug-and-Play Balance Port Connection: Easily connects to the battery’s balance port for accurate cell-level voltage readings.
3. Future-Ready Pass-Through: Includes an in-&-out port to daisy-chain additional ERS telemetry sensors as your setup grows.
4. Seamless ExpressLRS Integration: Designed to work effortlessly with compatible ER series ExpressLRS PWM receiver.
Plug and Play Compatible Receivers:
– ER6 2.4GHz ExpressLRSPWM Receiver
– ER8 2.4GHz ExpressLRSPWM Receiver
– ER8G & ER8GV ExpressLRS PWM Receiver
Specification:
Brand: Radiomaster
Item: ERS-CV01 Cell Voltage Sensor
Operating voltage (serial port): 5–8.4V
Operating current (serial): 8mA
Balance port current (8S): 2mA
Supported cells: 2–8S
Battery types: LiPo, LiHV, LiFe, LiIon
Voltage accuracy: ±0.01V
Temperature range: –10 ℃ to +85 ℃
Size: 43.5 × 25 × 7mm
Weight: 6.5g

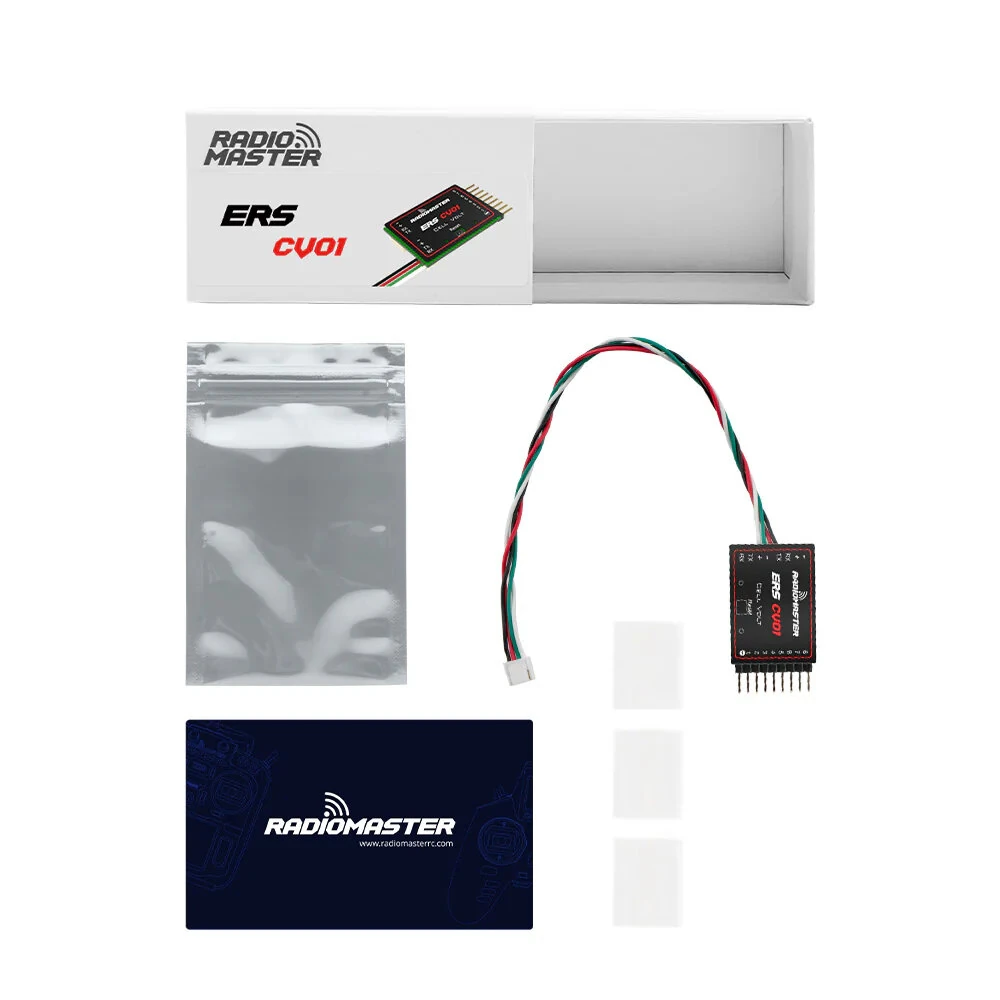

Package Included:
1 x ERS-CV01 Cell Voltage Sensor
3 x Heat-Shrinkable Tube
1 x Manual QR Code Card
