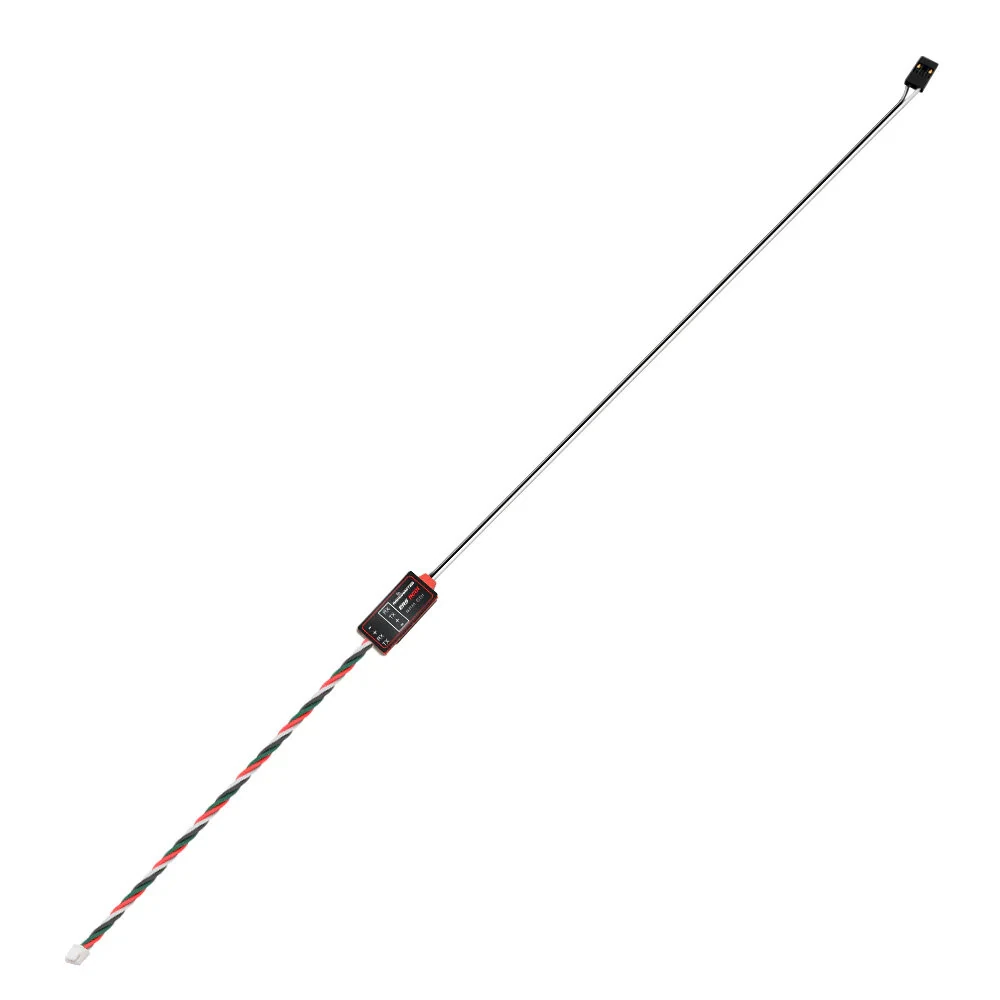

Radiomaster ERS-RC01 Plug and Play CDI Gas Engine Tachometer for Compatible ExpressLRS PWM Receivers

Description:

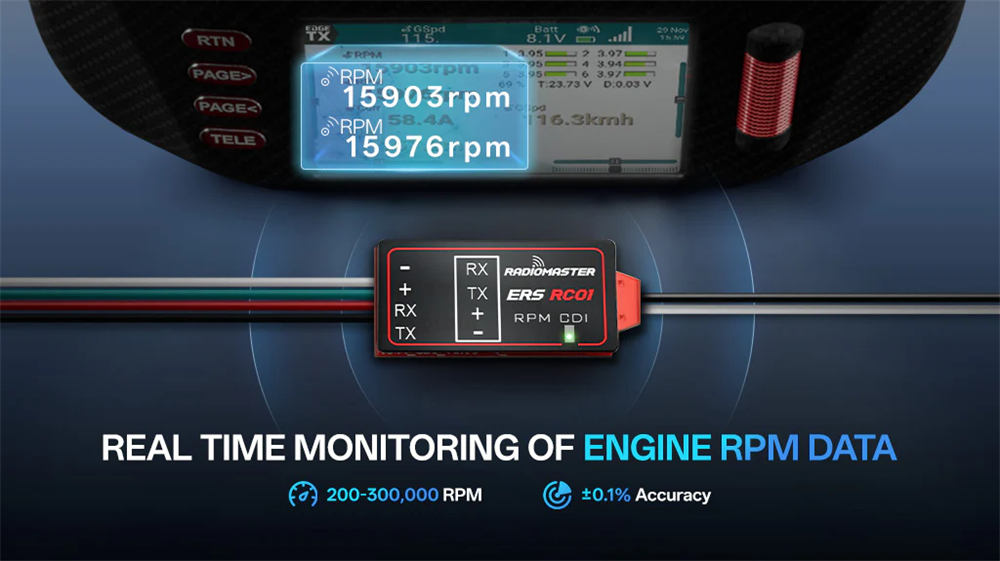

The ERS-RC01 Gasoline Engine Tachometer measures RPM by connecting directly to your engine’s CDI speed output. The sensor accurately detects engine speed, transmits the data to a compatible ExpressLRS receiver through the CRSF interface, and then sends it back to your EdgeTX radio for real-time monitoring. Ideal for any application requiring accurate RPM feedback.
As part of the ERS sensor family, the ERS-RC01 also supports pass-through expansion, allowing easy daisy-chaining with additional telemetry modules.
Feature:
1. Accurate Engine RPM: Monitors gasoline engine speed in real time with precision.
2. ExpressLRS Integration: Sends RPM data directly to compatible 3. 3. ExpressLRS receivers via the CRSF interface.
4. Versatile Applications: Ideal for any application requiring accurate RPM feedback.
5. Compact & Lightweight: Easy to install without adding unnecessary weight.
6. Plug-and-Play: Simple connection to the CDI output for fast setup.

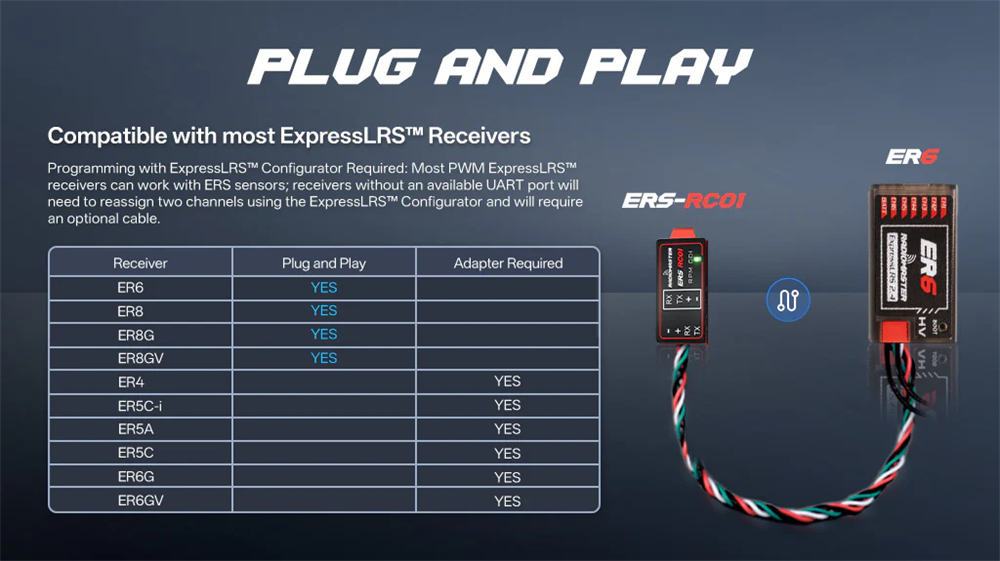

Plug and Play Compatible Receivers:
ER6 2.4GHz ExpressLRSPWM Receiver
ER8 2.4GHz ExpressLRSPWM Receiver
ER8G & ER8GV ExpressLRS PWM Receiver

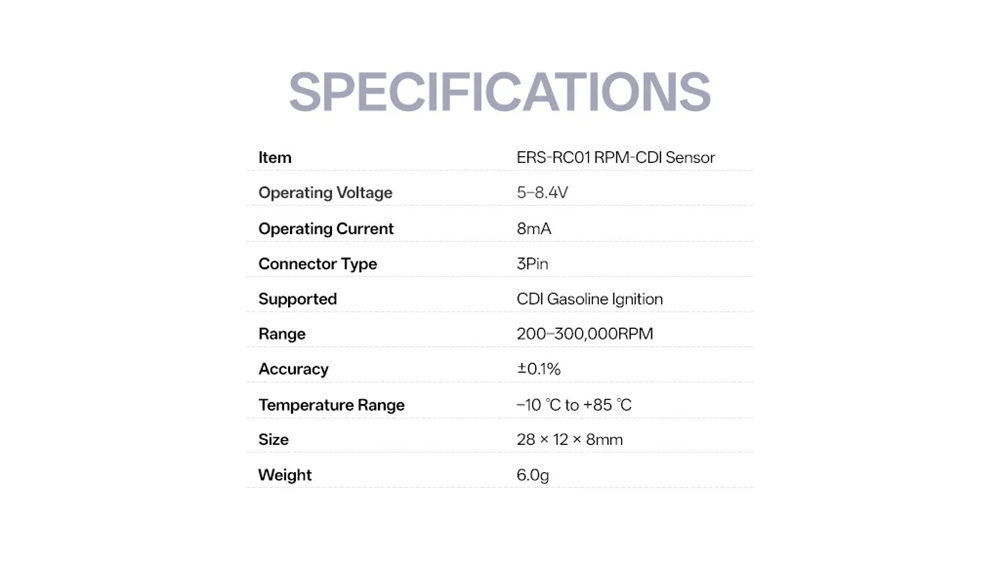

Specification:
Brand: Radiomaster
Item: ERS-RC01 RPM-CDI Sensor
Operating voltage: 5–8.4V
Operating current: 8mA

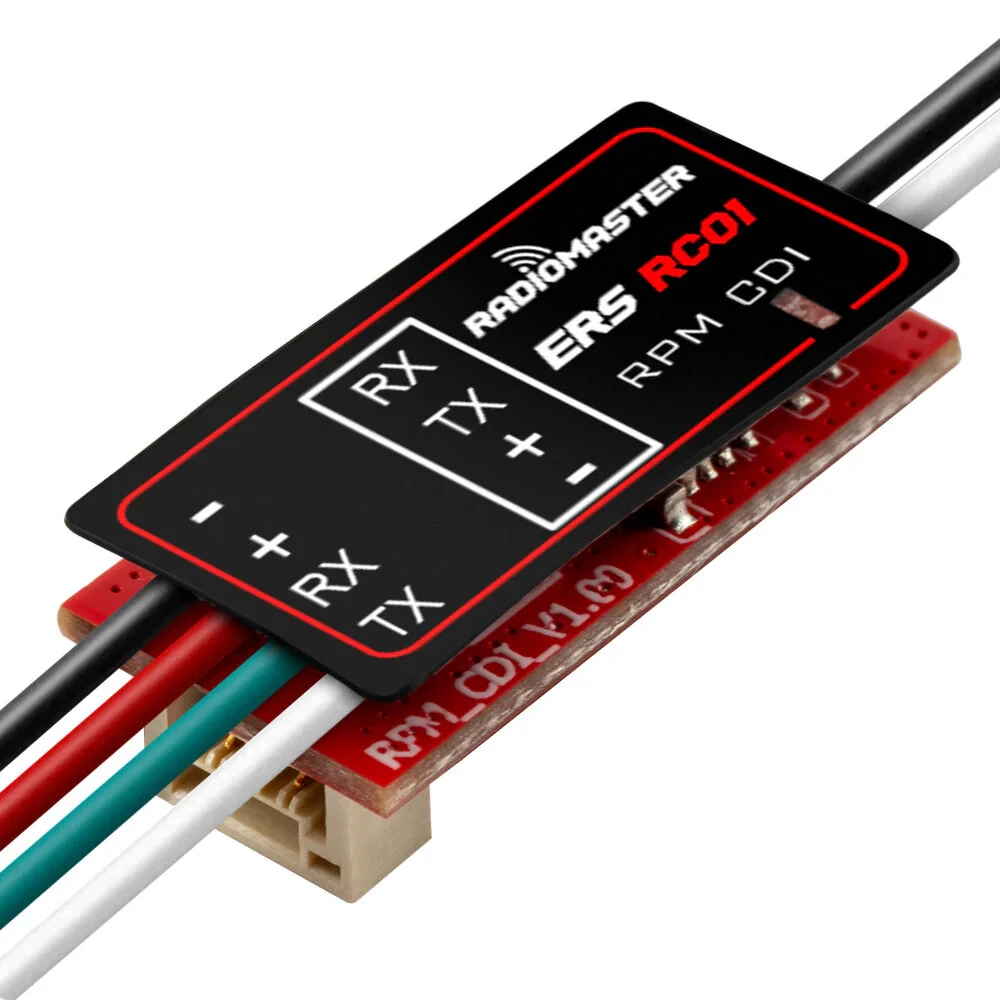

Connector type: 3 pin
Supported: CDI gasoline ignition
Range: 200–300, 000RPM
Accuracy: ±0.1%
Temperature range: –10 ℃ to +85 ℃

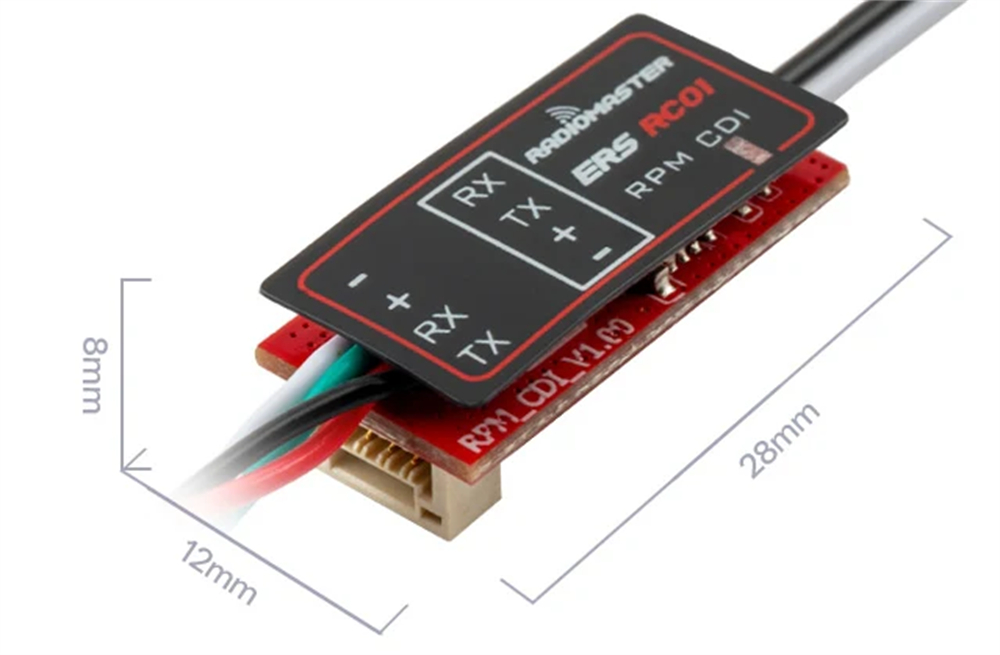

Size: 28 × 12 × 8mm

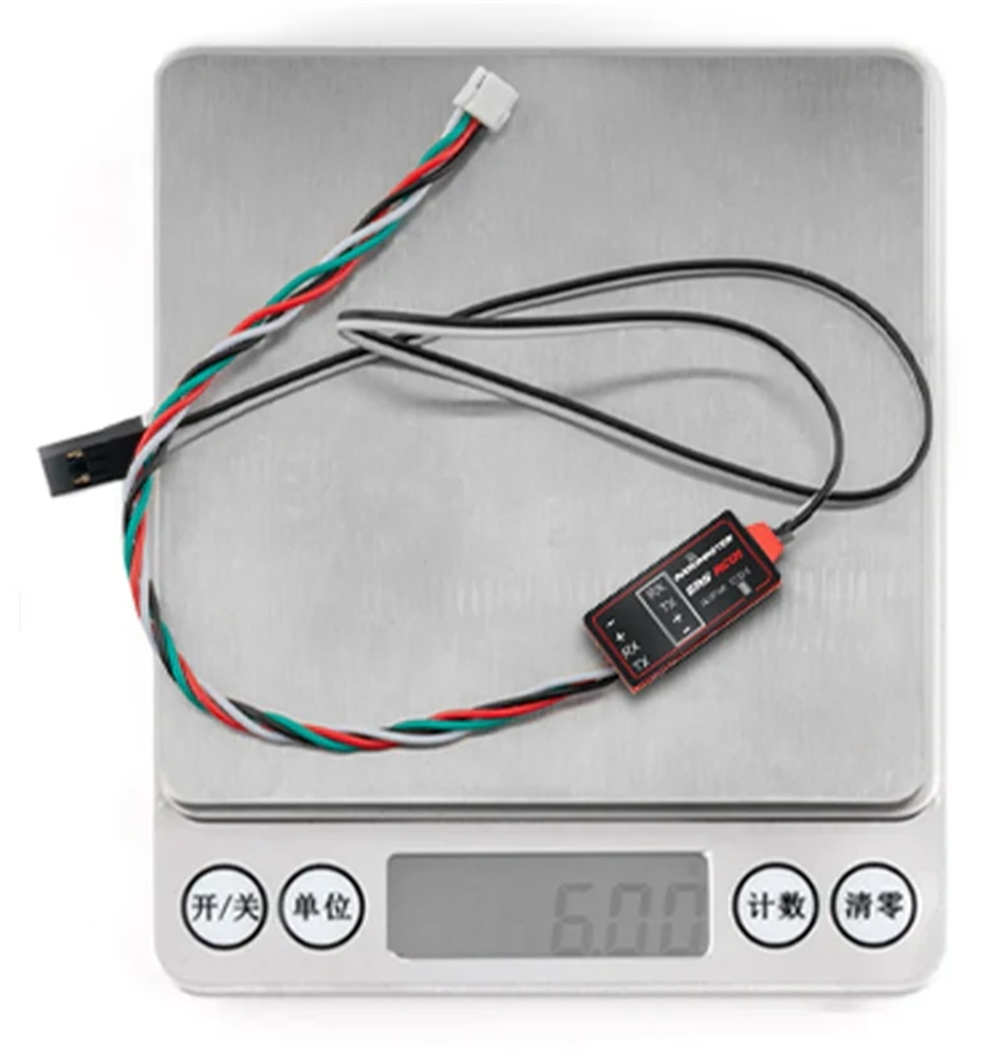

Weight: 6.0g

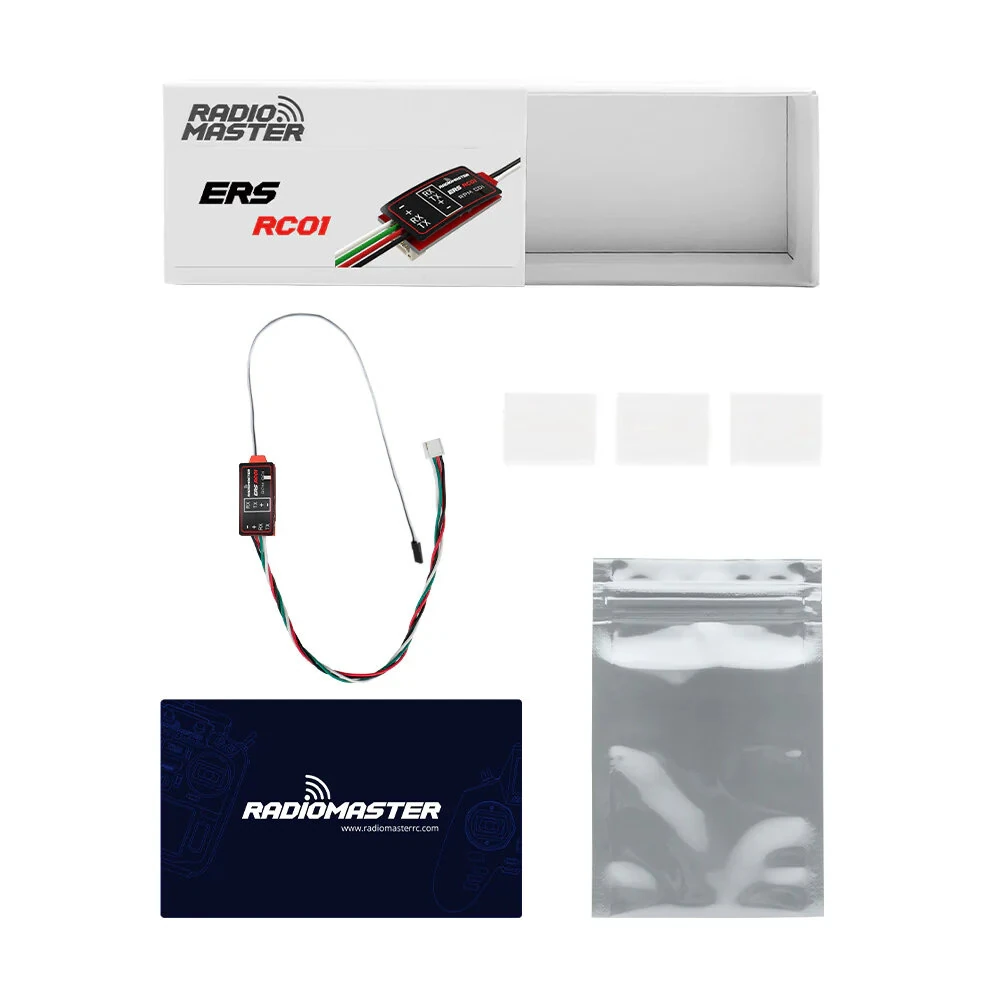

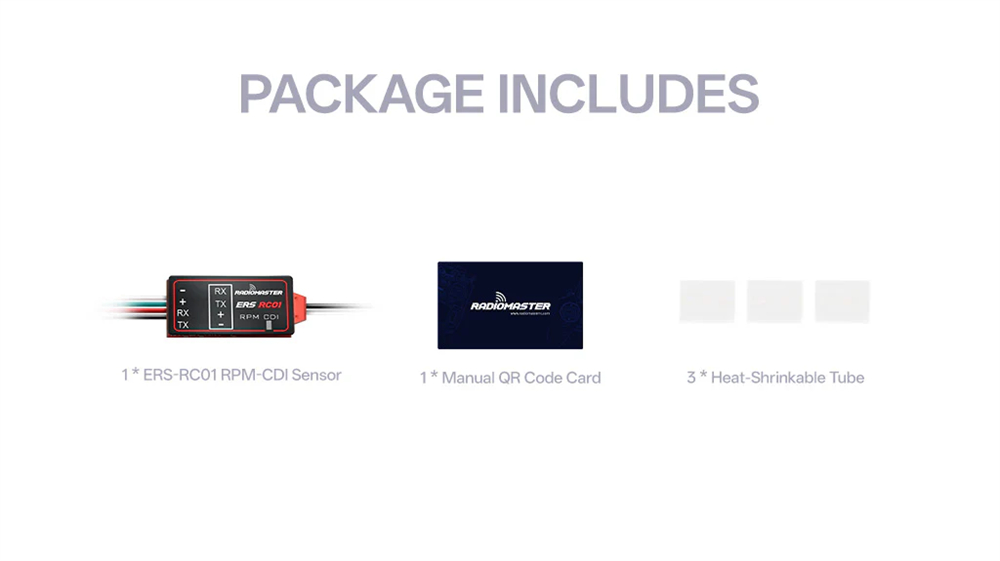

Package Included:
1 x ERS-RC01 RPM-CDI Sensor
3 x Heat-Shrinkable Tube
1 x Manual QR Code Card
