Radiomaster ERS Sensor UART to Dual PWM Adapter for ERS Receiver
1 in stock
- SKU : 2049799
- Condition : New
- Brand : Radiomaster
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$14.99 $27.99
Description:

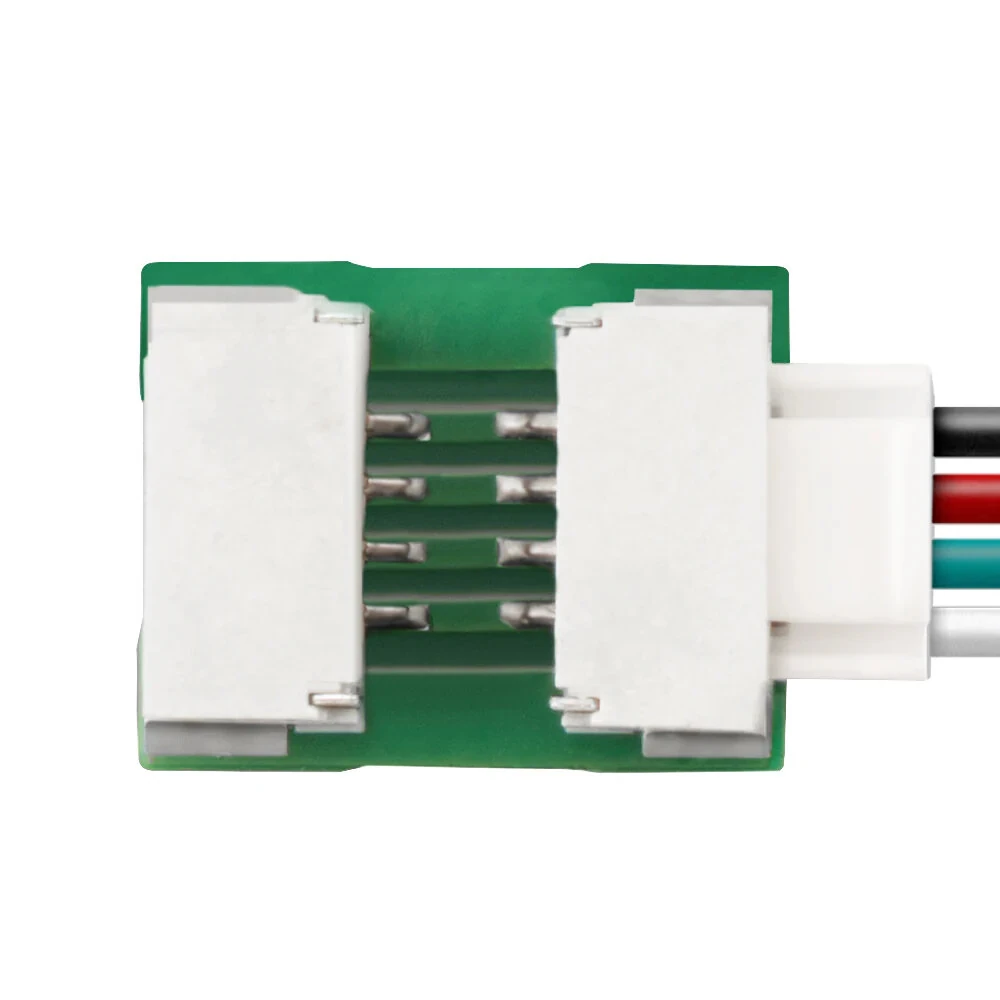

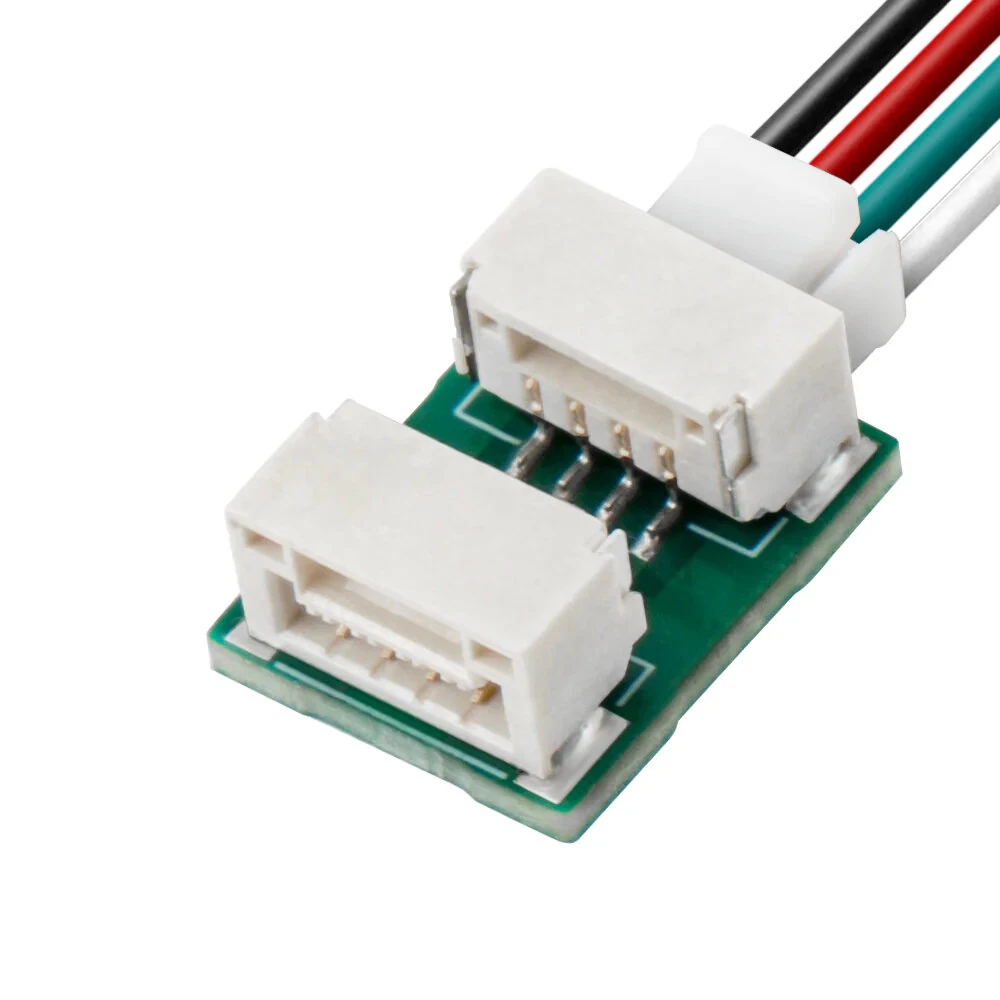

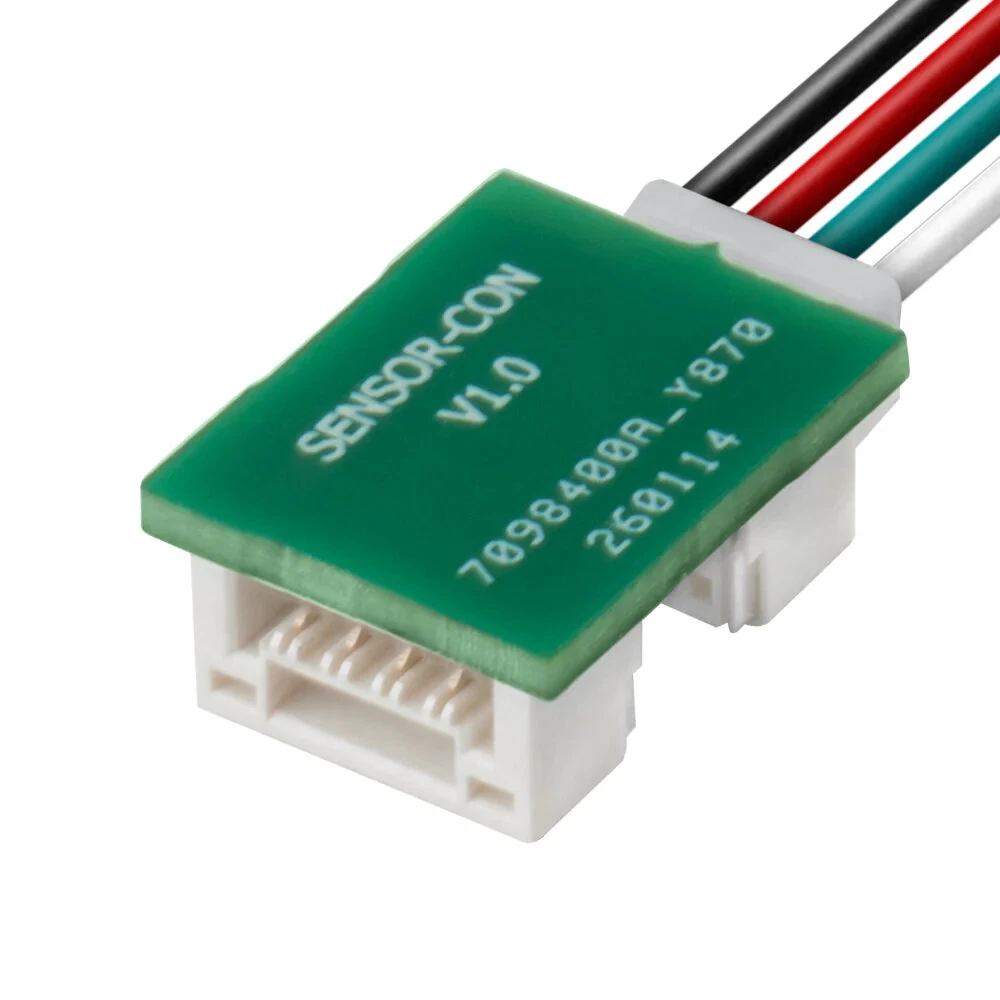

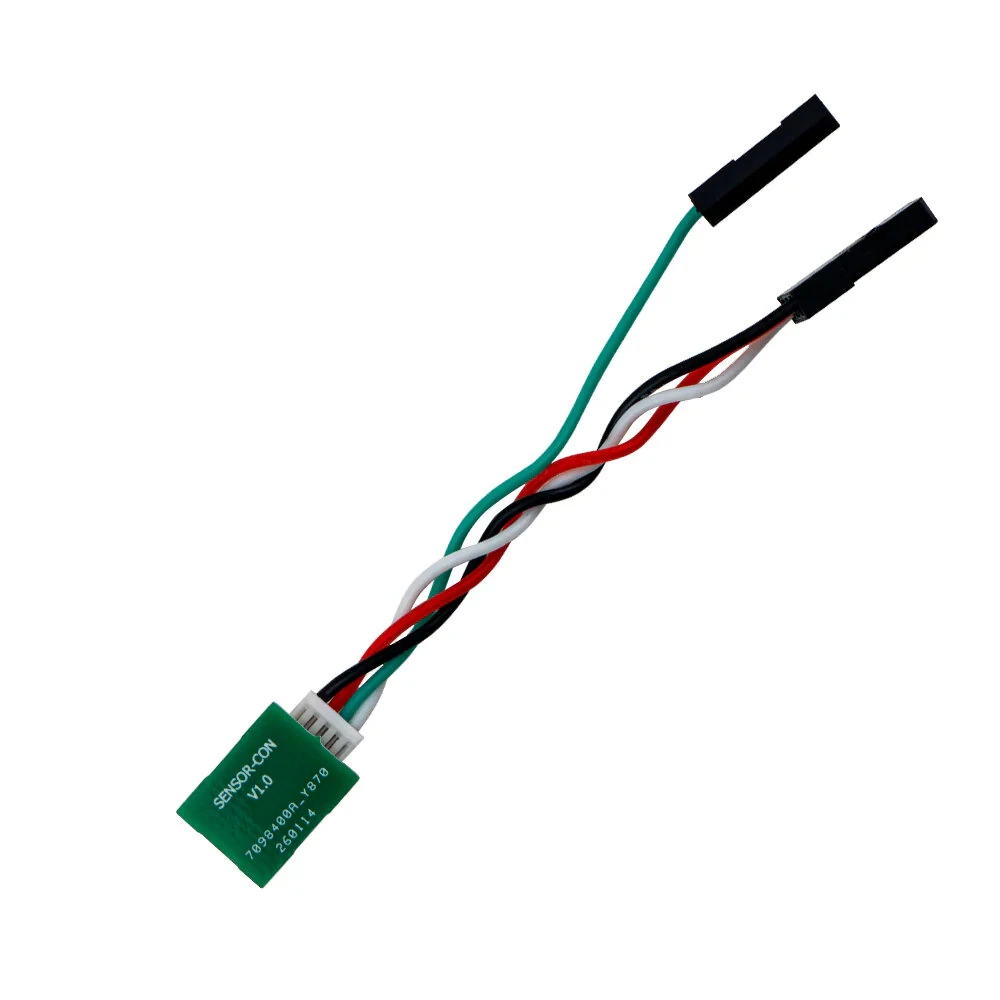

Connect your ERS sensor to most PWM ExpressLRS receiver—even those without a dedicated UART port. This compact PCB adapter converts the sensor’s female JST-GH UART connector into two outputs: a standard servo-style plug and a single-pin Dupont signal line, allowing connection to two PWM channels.
For receivers without a plug-and-play UART, reassign two PWM outputs as TX and RX using the receiver’s Web UI (WiFi mode) or the ExpressLRS LUA script. This enables full sensor functionality while keeping remaining PWM channels free for servos or ESCs.
Specification:
Brand: Radiomaster
Item: ERS Sensor UART to Dual PWM Adapter
Connector type: JST-GH to 3p Servo/ 1p Dupont
S
Weight: 1.81g
Package Included:
1 x ERS Sensor UART to Dual PWM Adapter
2 x Clear Shrink Tube
