Radiomaster R85C 2.4GHz 4-in-1 RX Built-in TCXO Frsky D8/D16/SFHSS Compatible Receiver for MT12 Transmitter

Radiomaster R85C 2.4GHz 4-in-1 RX Built-in TCXO Frsky D8/D16/SFHSS Compatible Receiver for MT12 Transmitter

The R85C receiver is Frsky D8 / D16 and Futba SFHSS compatible and offers a range suitable to many RC modelers. Built-in a TCXO (temperature compensated crystal oscillator), ensures high stability and accuracy in frequency control, compensating for temperature variations.* Suitable only for Radiommaster Multi-Protocal radios with ability to fine tune protocols. Not compatible with FrSky radios.

Description:

Brand: RadioMaster

Item: R85C ReceiverPower supply: DC 4.5 – 8.4VFrequency range: 2400-2483.5MhzSupport protocol: D8/D16/SFHSSOutput channel: 5CH PWMAntenna type: high-sensitivity 2.4G antennaTelemetry power: 100mW / 20dBmWeight: 5.55 gramsDimensions: 31.0*18.5*13.0 mm

Features:

* Compatible with Frsky D8 / D16 and Futba SFHSS

* High-sensitivity 2.4G Antenna

* Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment

TCXO The TCXO (temperature compensated crystal oscillator) ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.

Package Included:

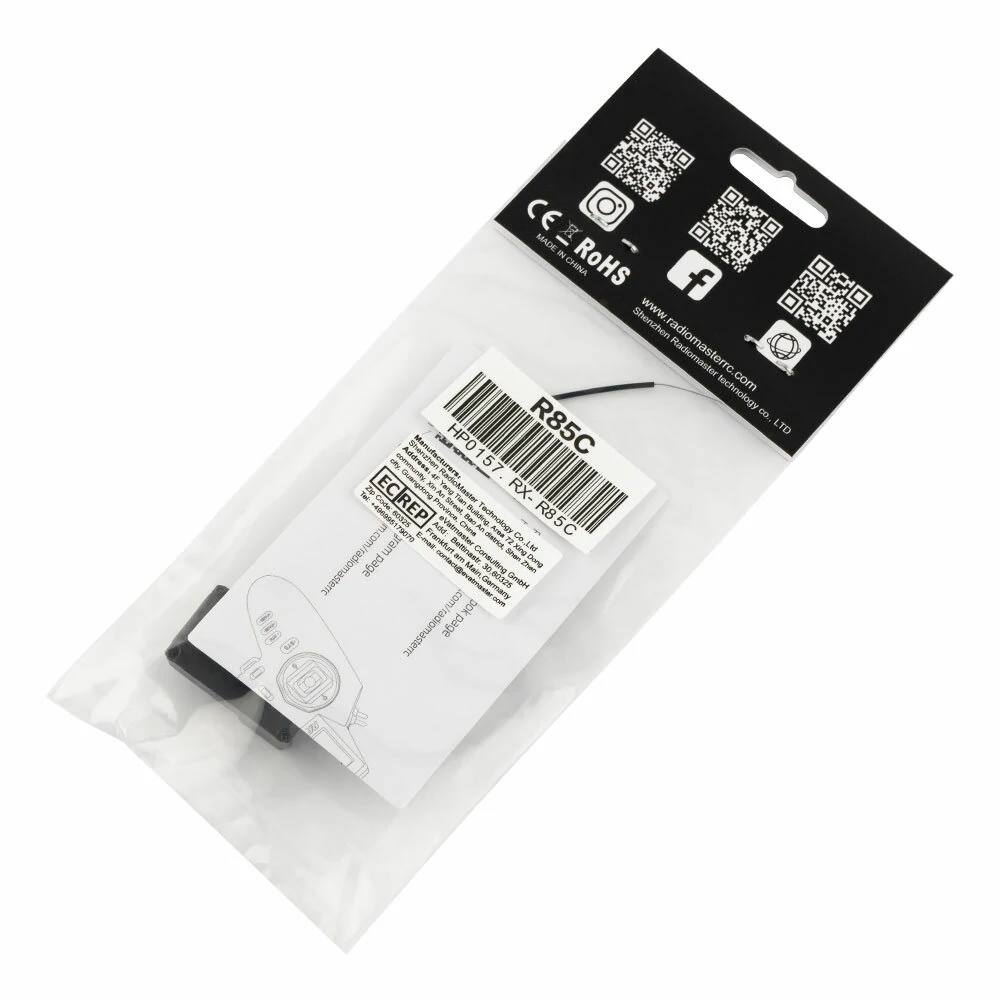

1 * R85C Receiver1 * User Card
