RATE F4V4 F435 / F405 Flight Controller with 5V 10V BEC Output & 65A 3-6S 32-bit ESC Stack for RC FPV Racing Drones
RATE F4V4 F435 / F405 Flight Controller with 5V 10V BEC Output & 65A 3-6S 32-bit ESC Stack for RC FPV Racing Drones - Image 2

RATE F4V4 F435 / F405 Flight Controller with 5V 10V BEC Output & 65A 3-6S 32-bit ESC Stack for RC FPV Racing Drones

Availability:

1 in stock
Compare
  • SKU : 2051041
  • Condition : New
  • Brand : RATE
  • Processing Time : Ships Within 24-48 Hours
  • Return Policy : 30-day refund or replacement

Price range: $50.99 through $91.99

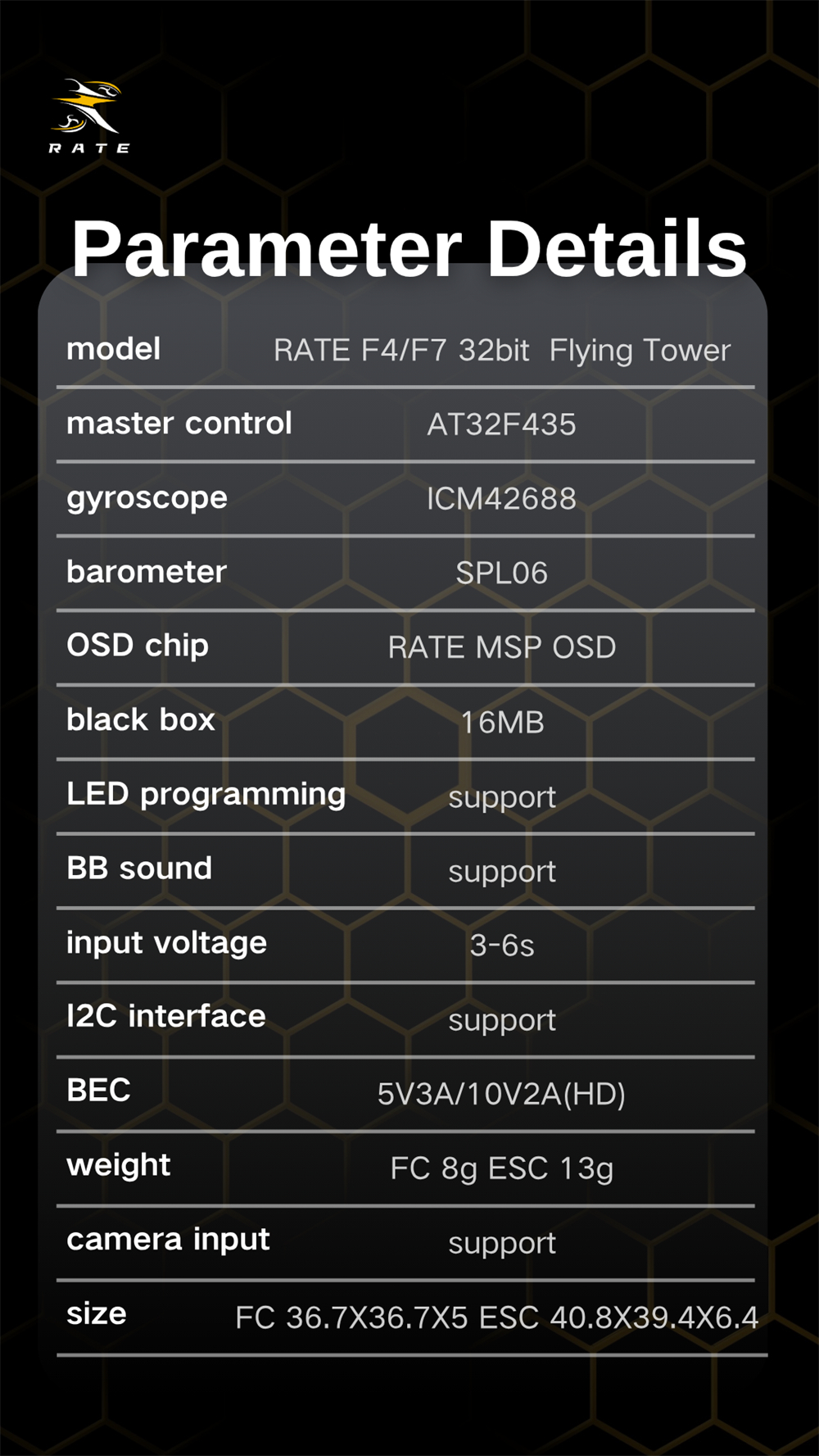

Specification:
Brand: RATE
Model: RATE F4 32-bit Stack

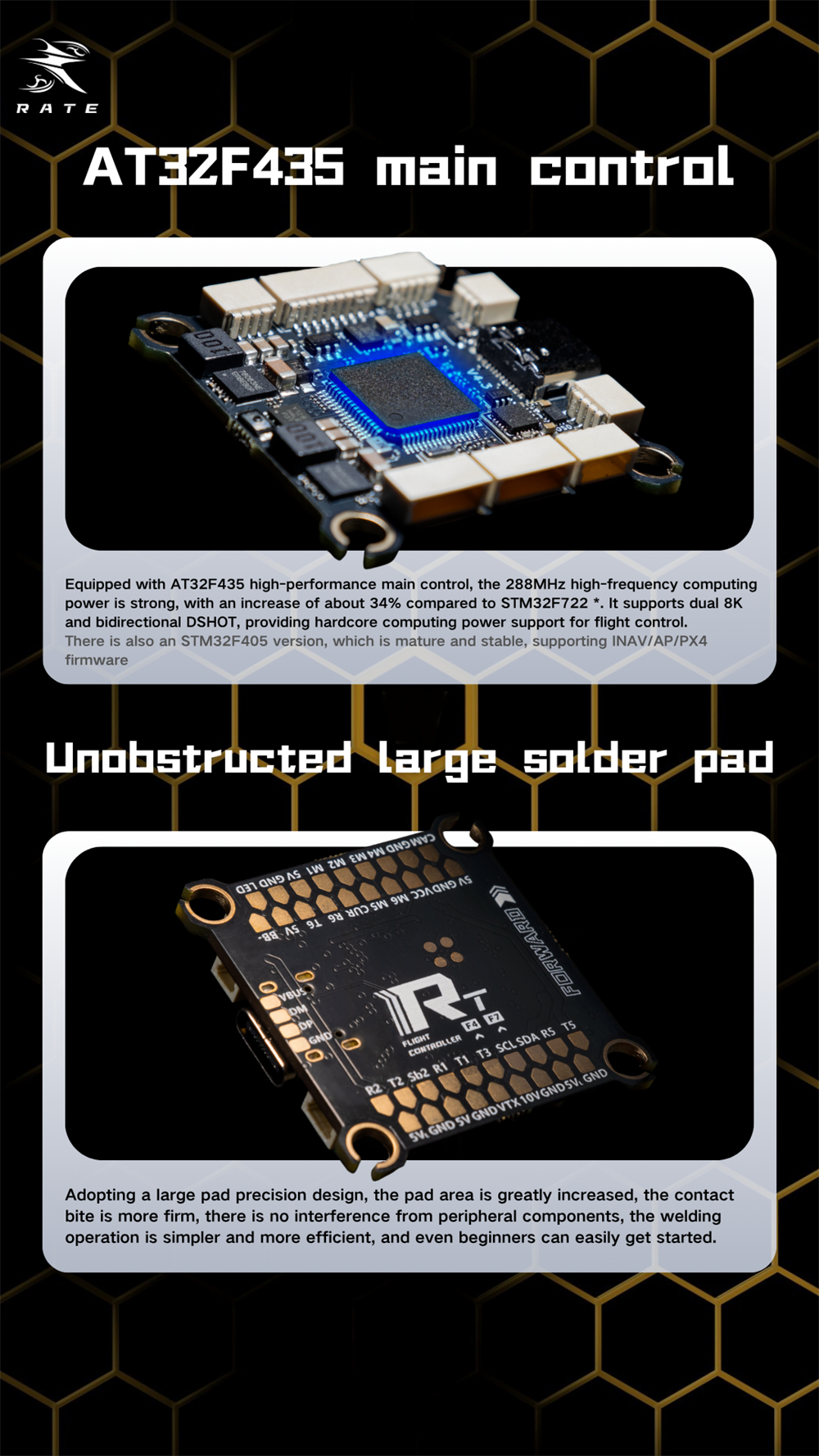

Main Controller (MCU): AT32F435 / AT32F405 (Optional)
Gyroscope: ICM42688
Barometer: SPL06
OSD Chip: RATE MSP OSD
Black Box (flash): 16 MB
LED Programming: Supported
Buzzer (BB) Sound: Supported
Input Voltage: 3–6S
I2C Interface: Supported
BEC: 5V 3A / 10V 2A (HD)
Weight: FC 8 g; ESC 13 g
Camera Input: Supported
Size: FC 36.7 × 36.7 × 5; ESC 40.8 × 39.4 × 6.4

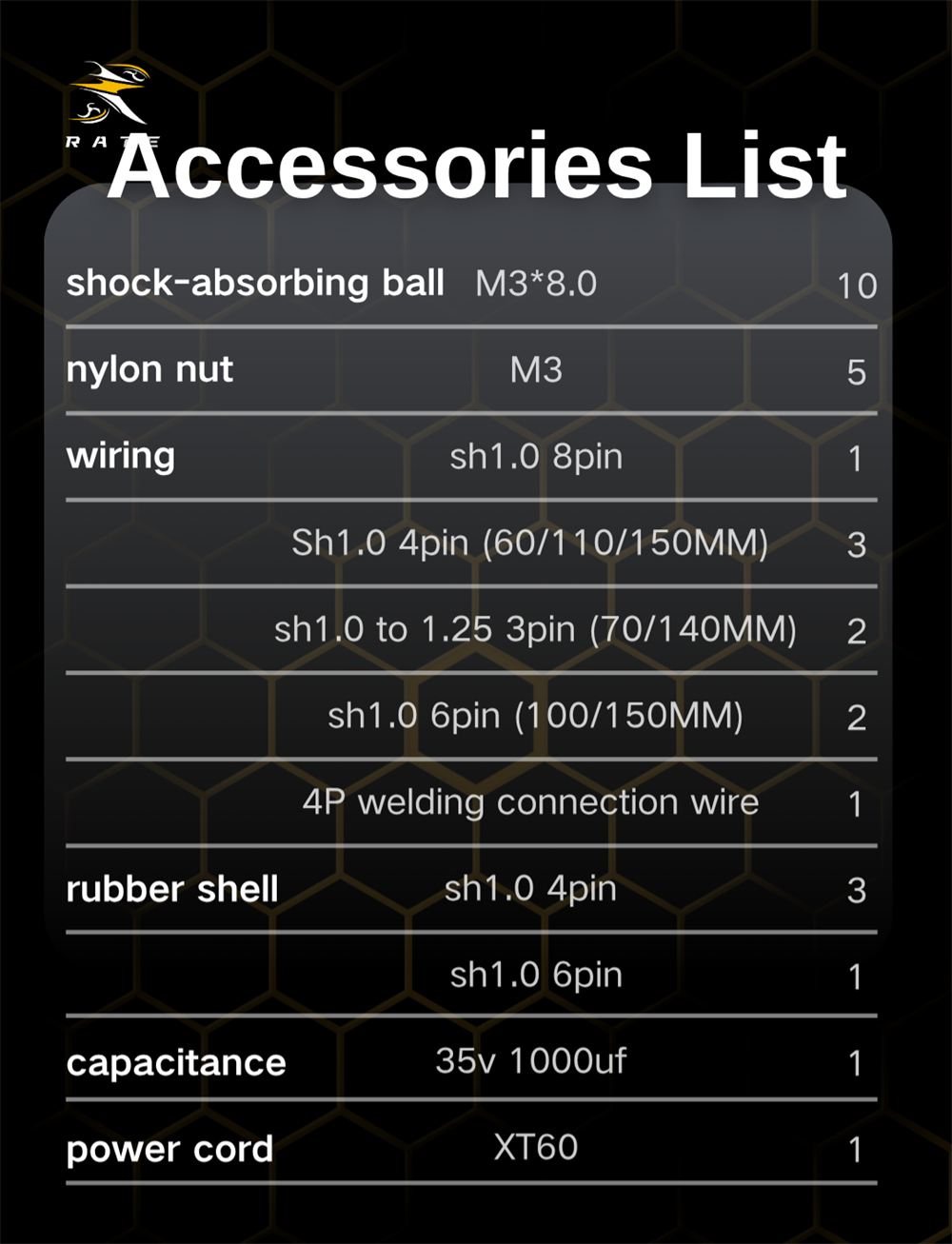

Package included:

Model Packgde
F435 Flight Controller + 65A ESC Stack 1 x F435 Flight Controller
1 x 65A ESC
10 x Shock-absorbing ball: M3×8.0
5 x Nylon nut: M3
1 x SH1.0 8-pin
3 x SH1.0 4-pin (60/110/150 mm)
2 x SH1.0 to 1.25, 3-pin (70/140 mm)
2 x SH1.0 6-pin (100/150 mm)
1 x 4P welding connection wire
3 x SH1.0 4-pin
1 x SH1.0 6-pin
1 x Capacitor: 35 V, 1000 µF
1 x Power cord: XT60
F405 Flight Controller + 65A ESC Stack 1 x F405 Flight Controller
1 x 65A ESC
10 x Shock-absorbing ball: M3×8.0
5 x Nylon nut: M3
1 x SH1.0 8-pin
3 x SH1.0 4-pin (60/110/150 mm)
2 x SH1.0 to 1.25, 3-pin (70/140 mm)
2 x SH1.0 6-pin (100/150 mm)
1 x 4P welding connection wire
3 x SH1.0 4-pin
1 x SH1.0 6-pin
1 x Capacitor: 35 V, 1000 µF
1 x Power cord: XT60
Only F435 Flight Controller 1 x F435 Flight Controller
Only 65A ESC: 1 x 65A ESC
