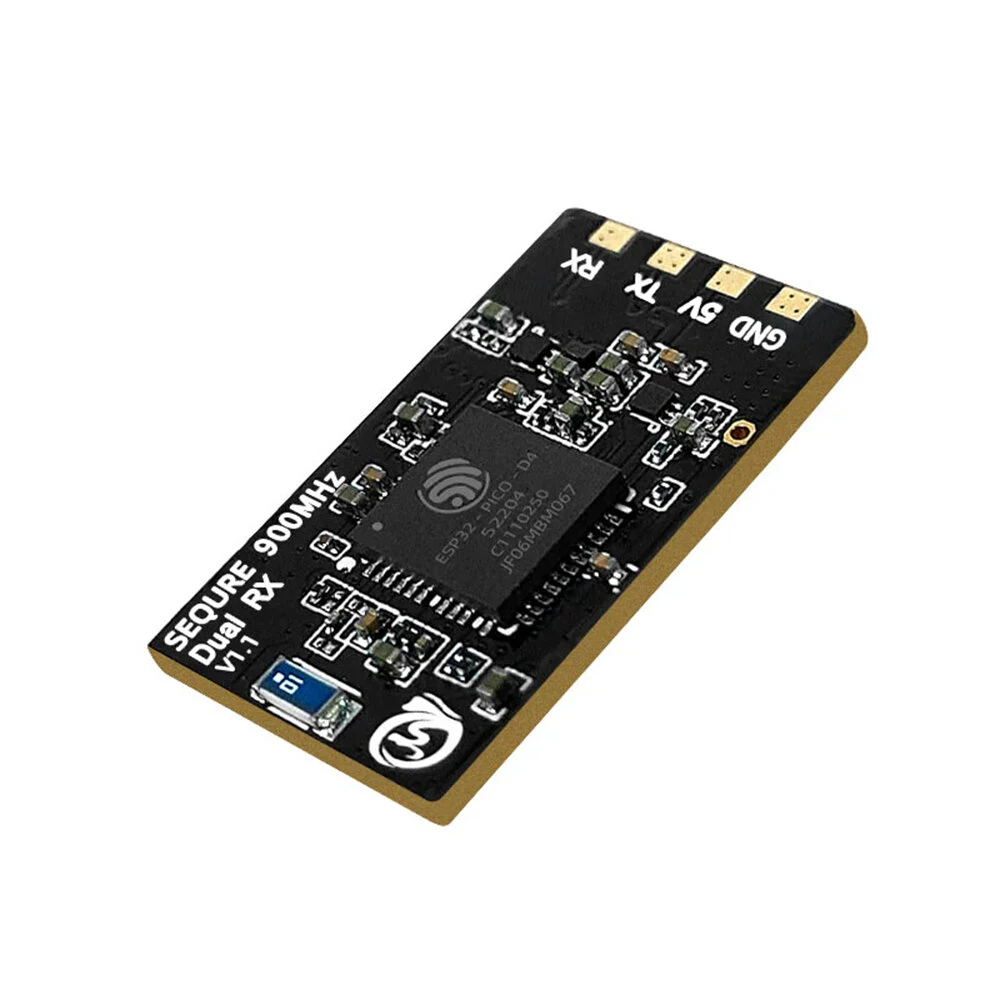

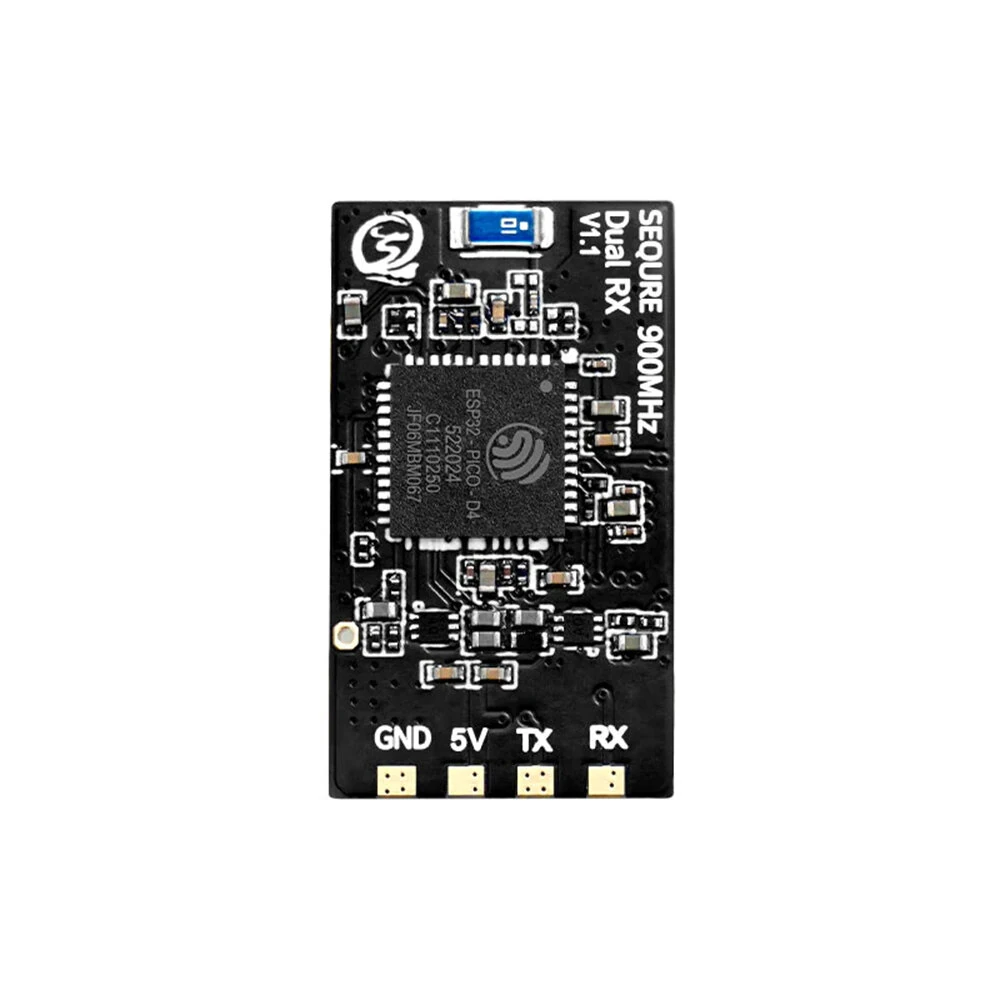

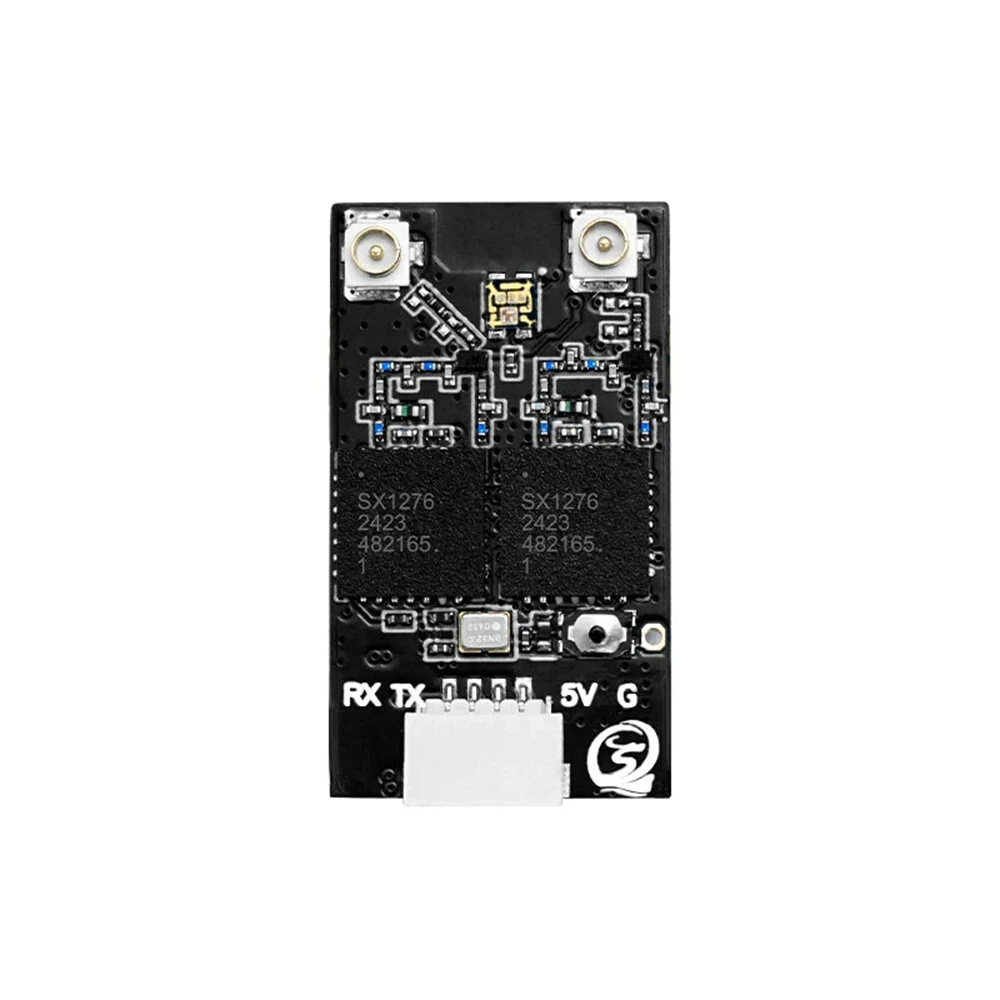

SEQURE ELRS 915MHz/868MHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone RC Airplane Helicopter

SEQURE ELRS 915MHz/868MHz Dual RX True Diversity Dual Antenna Long Range High Refresh Rate Receiver for FPV Racing Drone RC Airplane Helicopter

Feature:
(1) High-performance ESP32-PICO-D4 master control, dual-frequency SX1276 chip, true diversity dual antenna receiver.
(2) Operates at 915MHz & 868MHz frequency with strong diffraction capability and long flight range.
(3) Onboard temperature-compensated crystal oscillator (TCXO), refuses ambient temperature to affect flight, maintains stable operation in high or cold environments, making flight safer.
(4) Support 50mW (17dBm)*2 telemetry feedback, the return of flight data is more stable.
(5) Onboard RGB color indicator, quickly identify different working status.
(6) Support SH1.0-4P socket and 2.54-4P pad, two connection methods to meet various scenarios.
Specification:
Brand: SEQURE
Model: ELRS 915MHz/868MHz Dual RX
Factory Firmware: SEQURE 900MHz Dual RX_3.5.0
MCU: ESP32-PICO-D4
RF Chip: SX1276*2
Crystal Oscillator Type: Temperature Compensated Crystal Oscillator（TCXO）
Telemetry Power: 50mW（17dBm）* 2
Indicator Light: Colorful RGB Light
Frequency Band: 915MHz FCC / 868MHz EU
Protocol: CRSF
RF Mode: Dual /True Diversity/True diversity dual antenna
Antenna Interface: Ipex1*2
Receiver Interface: SH1.0-4P connector, 2.54-4P pad
Working voltage: 5V

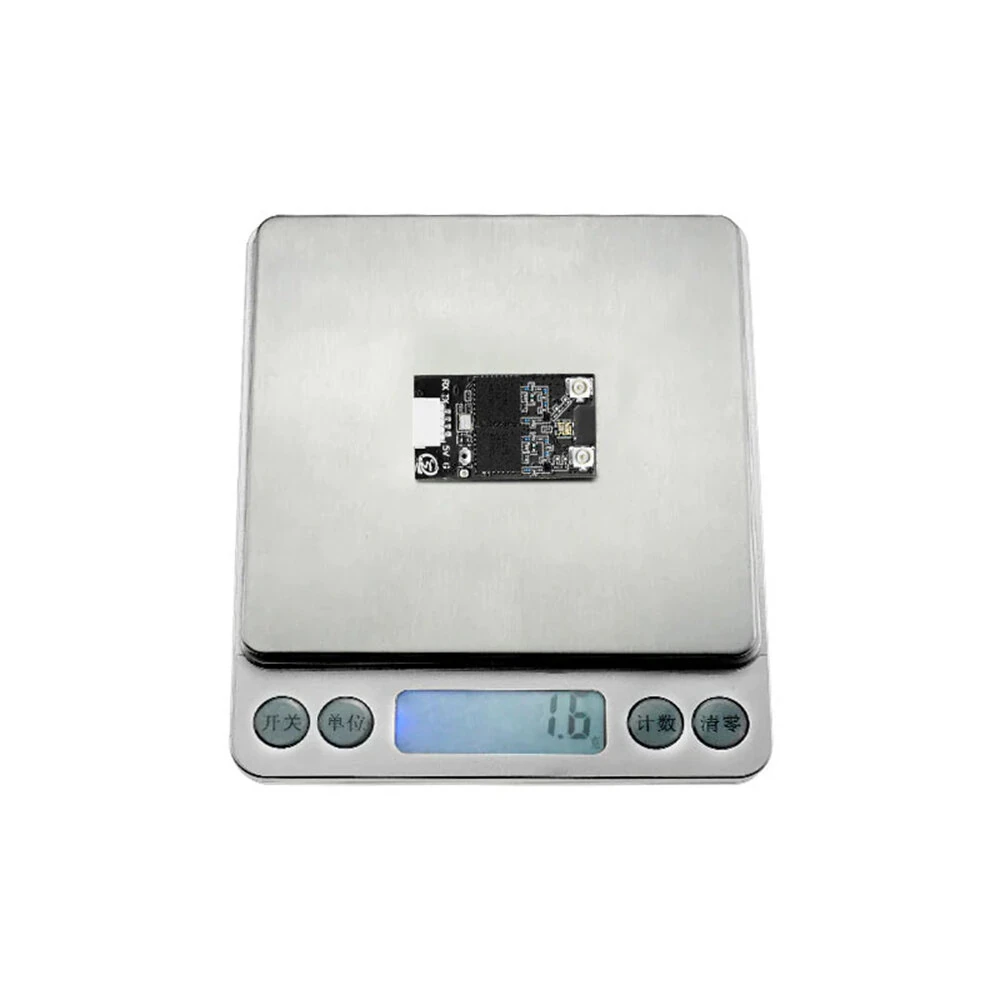

Weight: 1.6g

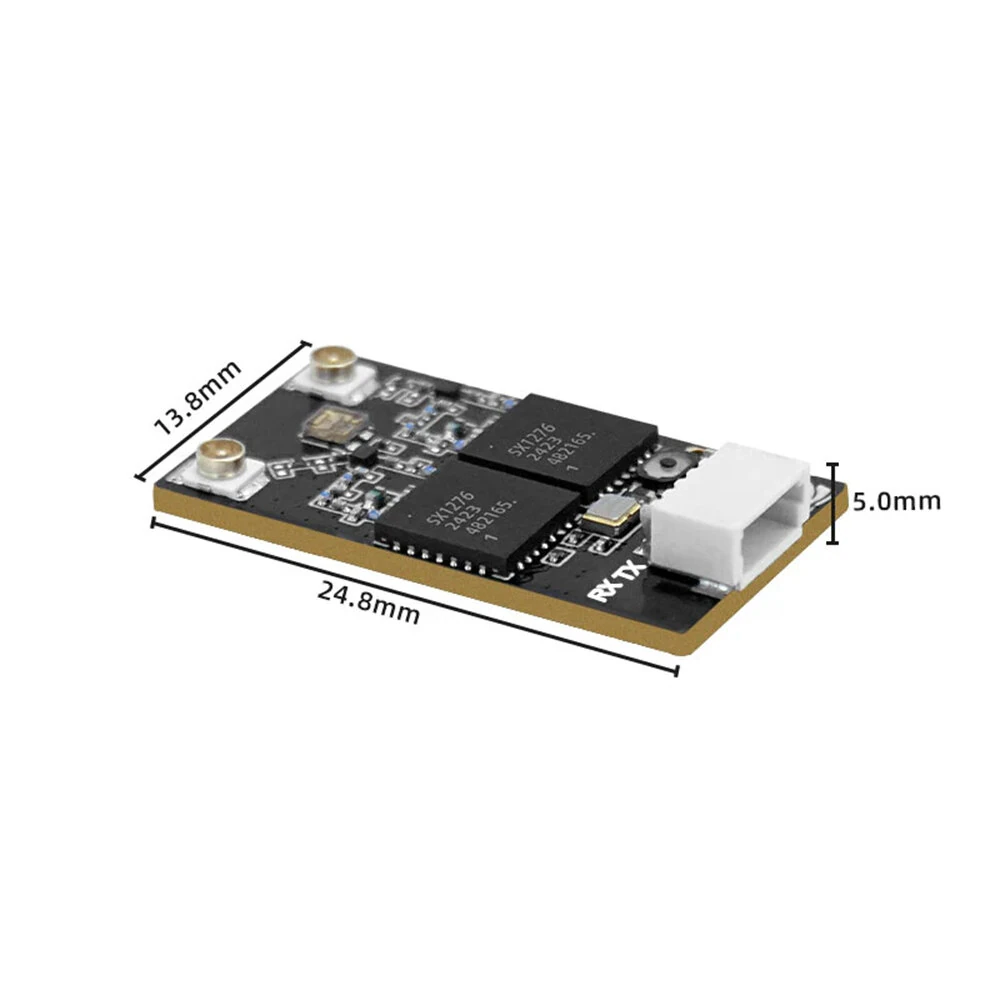

Size: 24.8*13.8*5mm

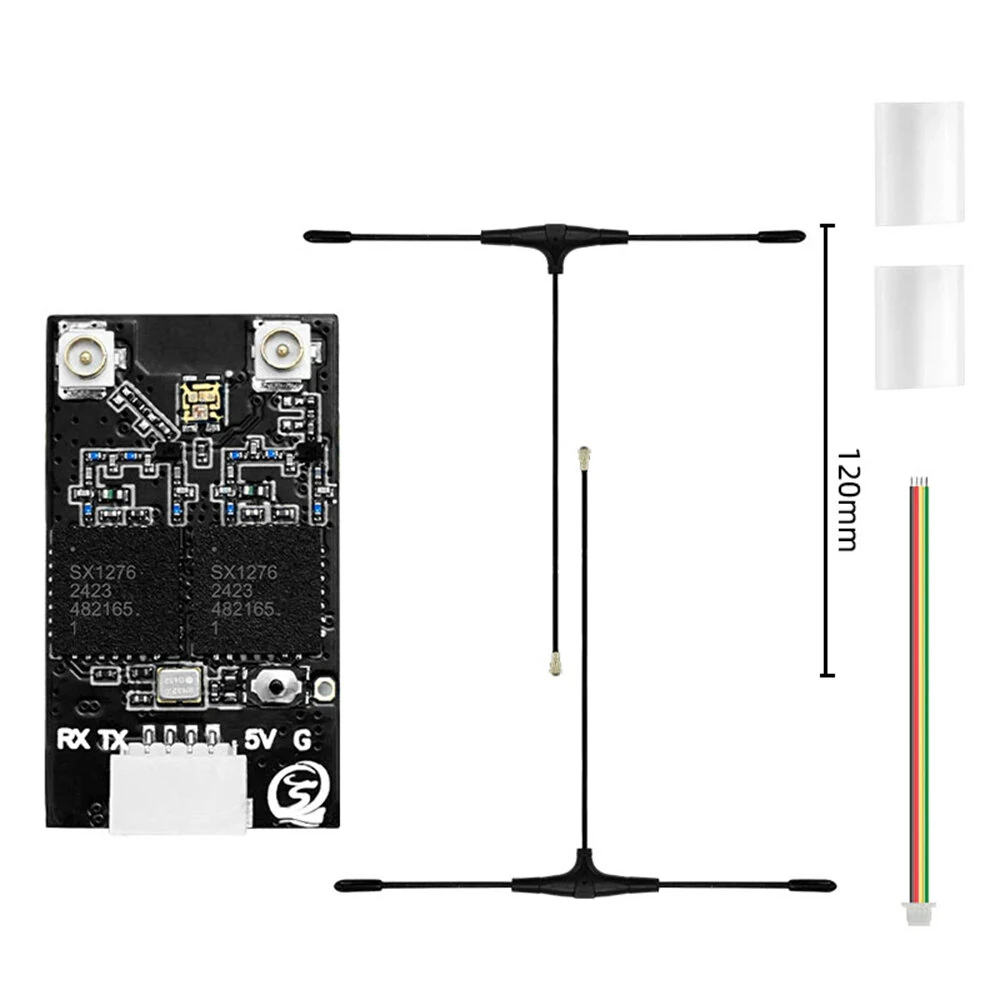

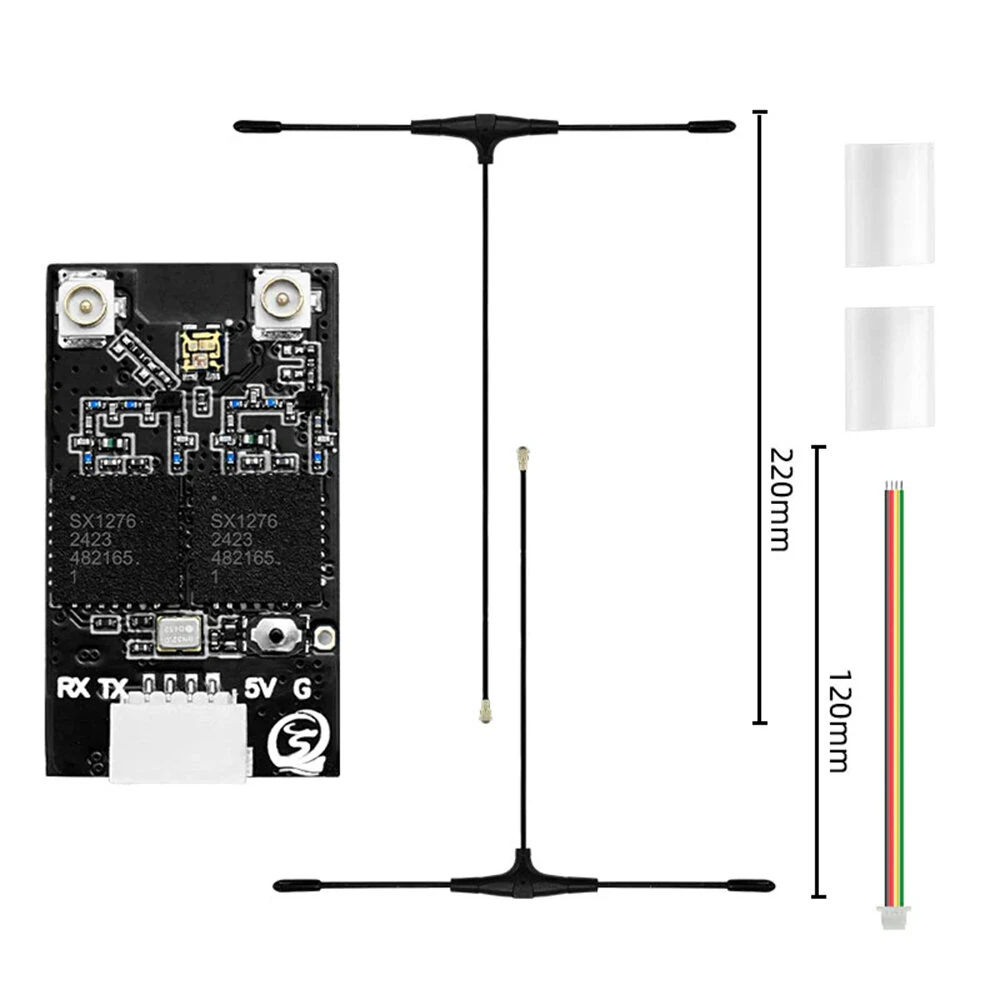

Package included:
1 x SEQURE 915MHz/868MHz Dual RX
2 x 900M Antenna
1 x 30AWG 100mm Single-end SH1.0-4P Cable
2 x 12*30mm Heat Shrink Tube
