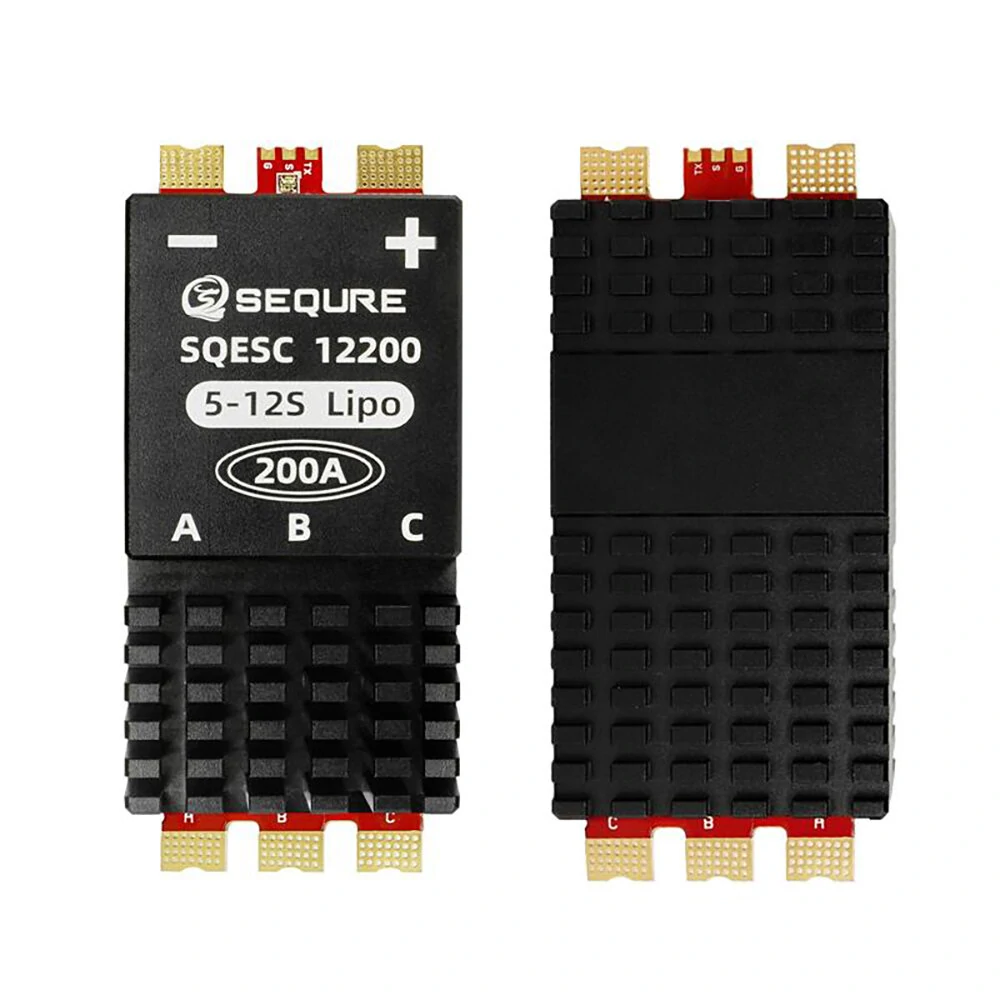

SEQURE SQESC 12200 Brushless Electric Speed Controller ESC 5-12S Power Supply 200A BLHeli_32 / AM32 Firmware Support 128KHz PWM Frequency Suitable For Multi-Rotor Aircrafts Airplane Models Plant Protection Machine Boat Models RC Car Models

10.5000pt;1.0000pt;Product Description:10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(3) Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(4) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(5) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(6) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(7) Onboard RGB LED color light settings, multiple LED colors can be customized.10.5000pt;1.0000pt;

10.5000pt;1.0000pt;(8) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.

10.5000pt;1.0000pt;
10.5000pt;1.0000pt;

10.5000pt;1.0000pt; SQESC 12200 Parameters:

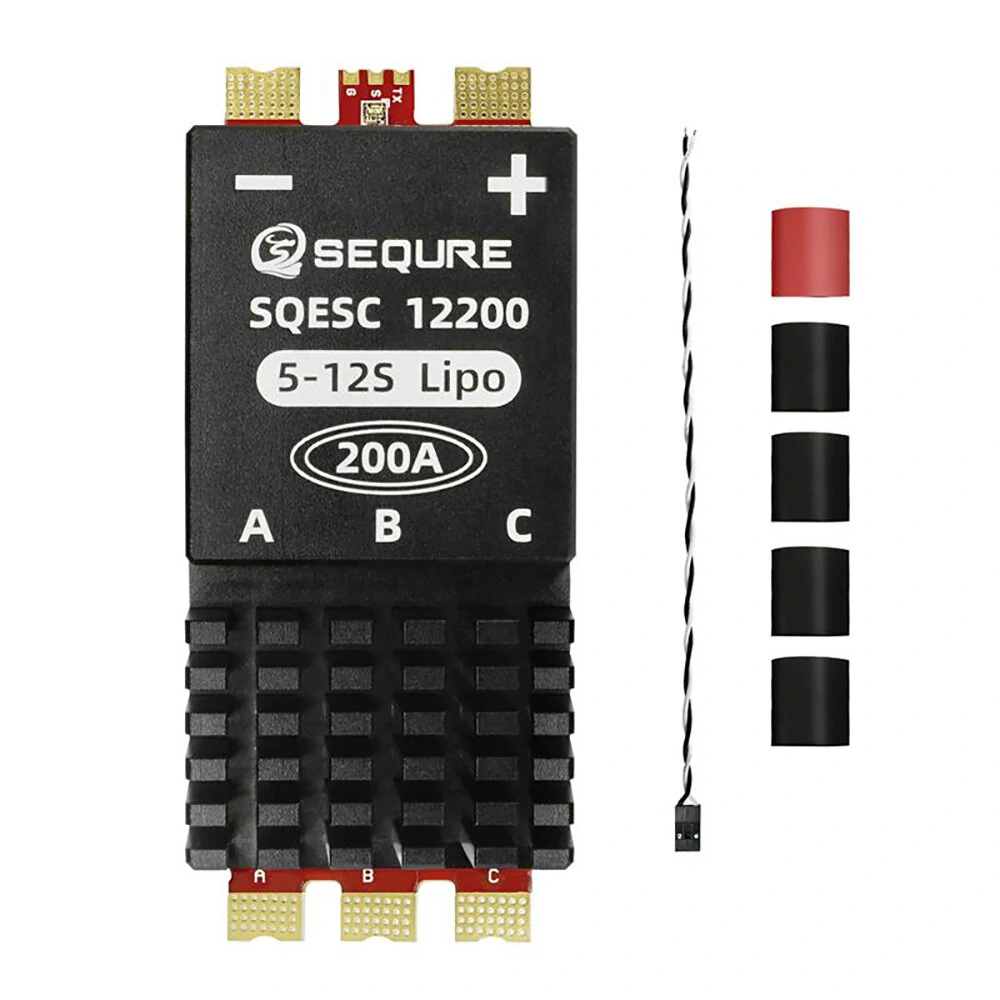

10.5000pt;1.0000pt;12200（BLHeli_32）/12200（AM32）Package included:

10.5000pt;1.0000pt;12200 Set × 1 (show as the image)
