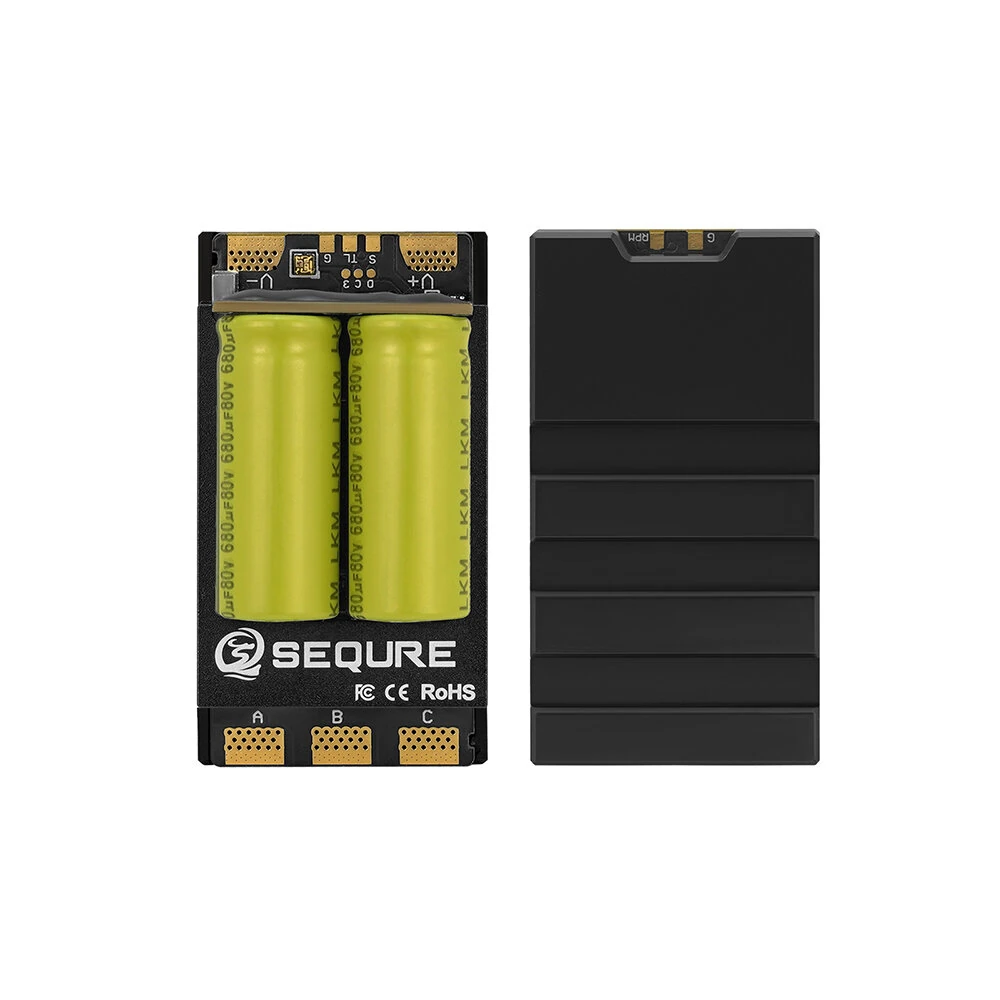

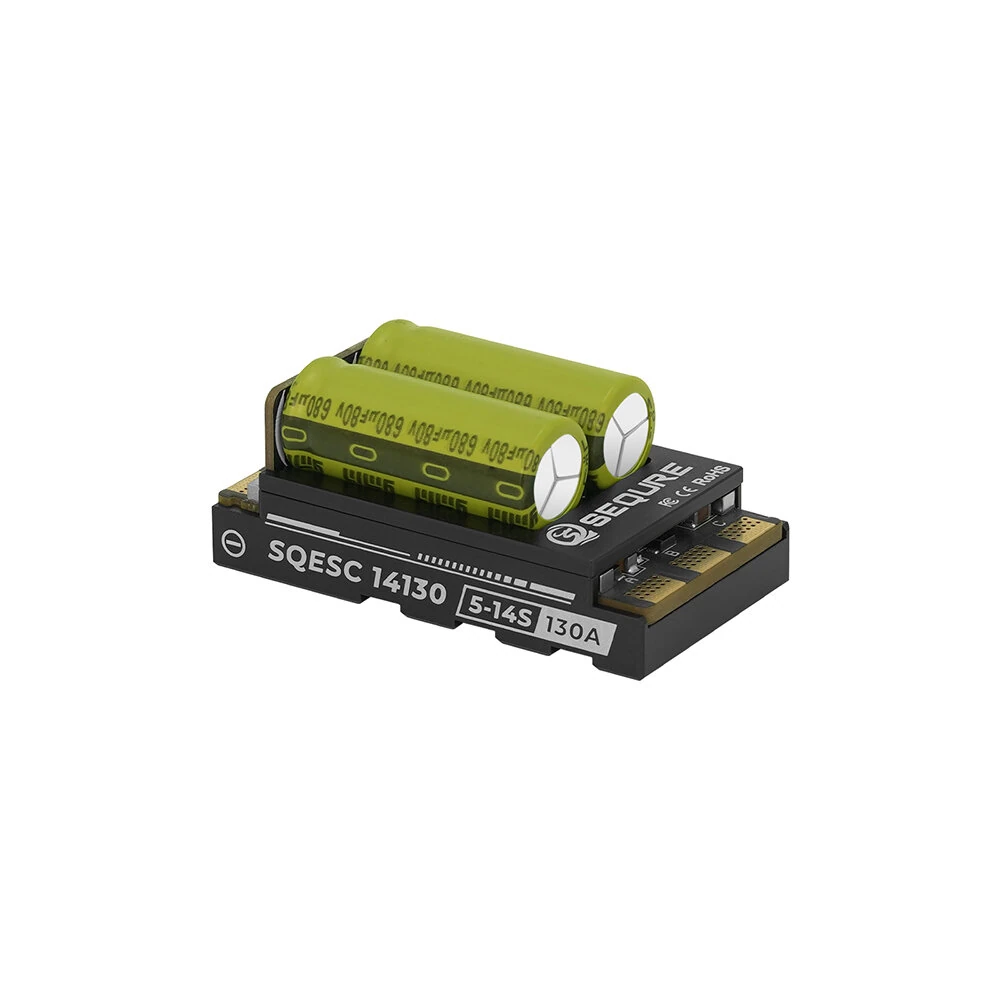

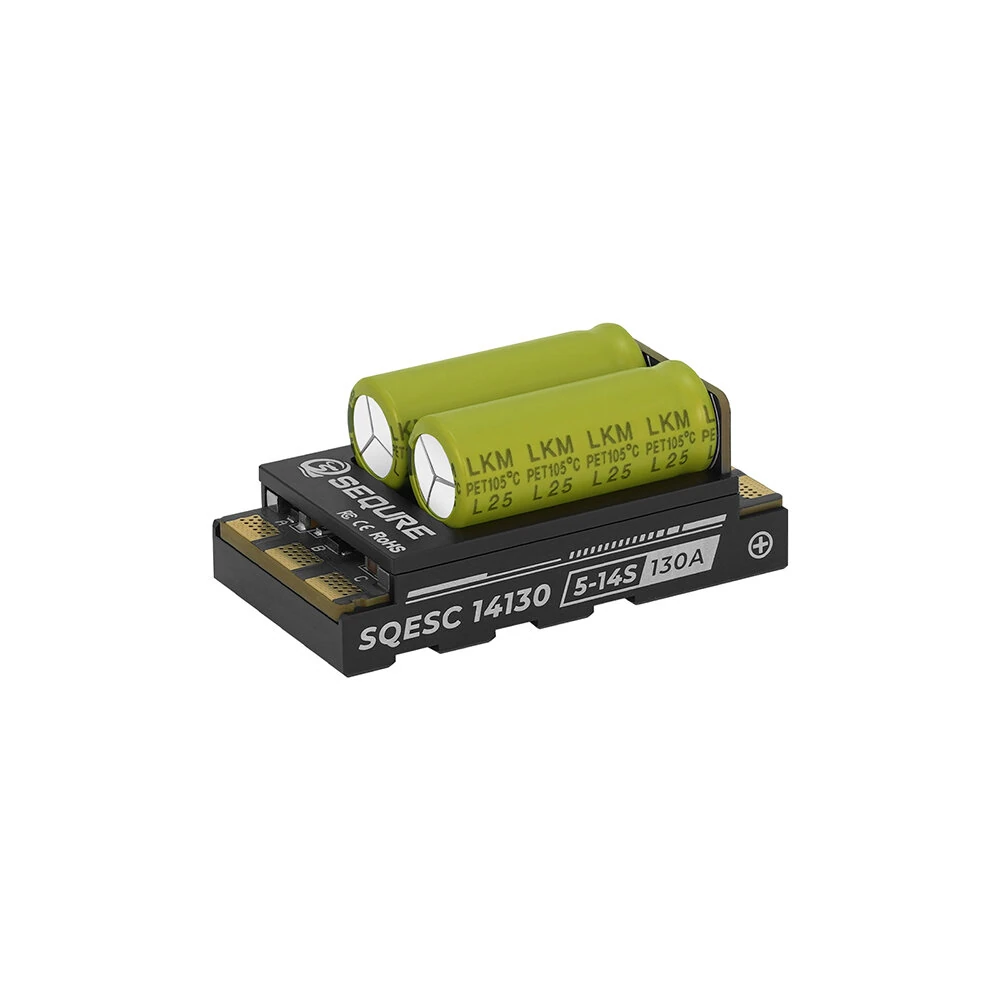

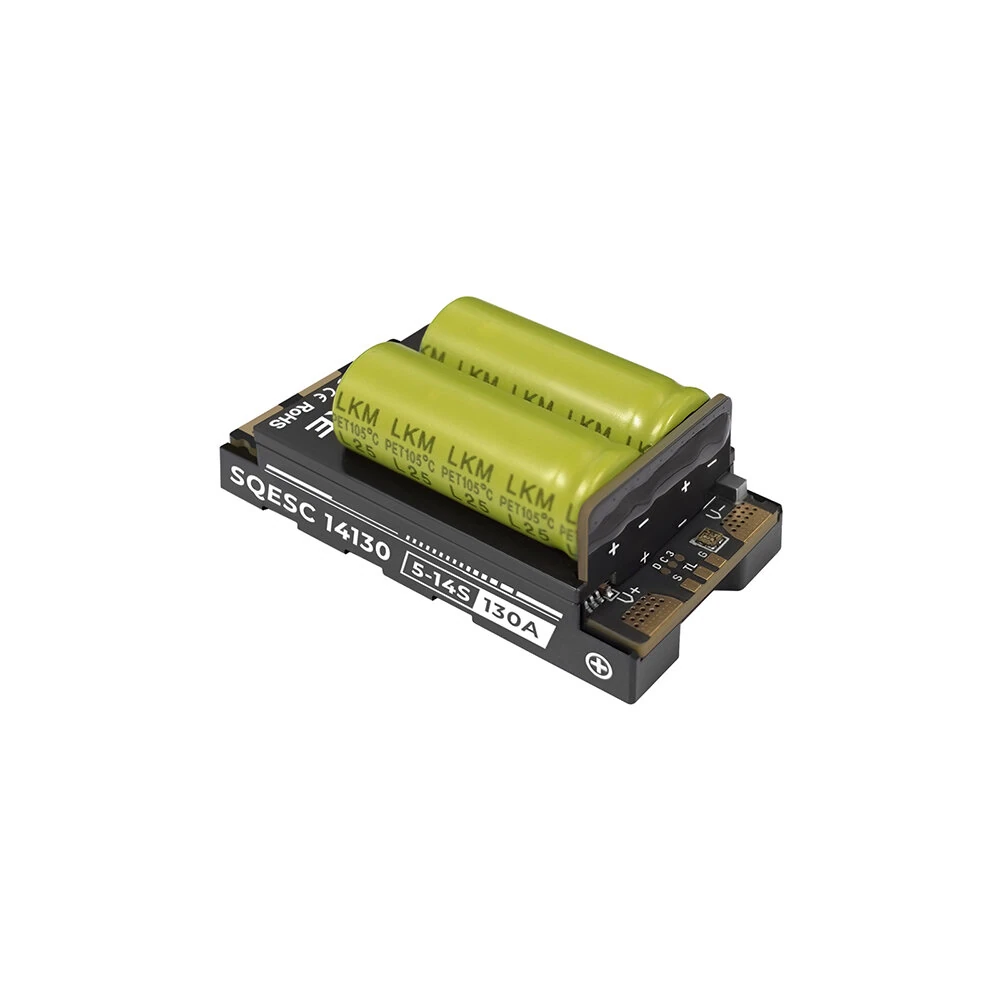

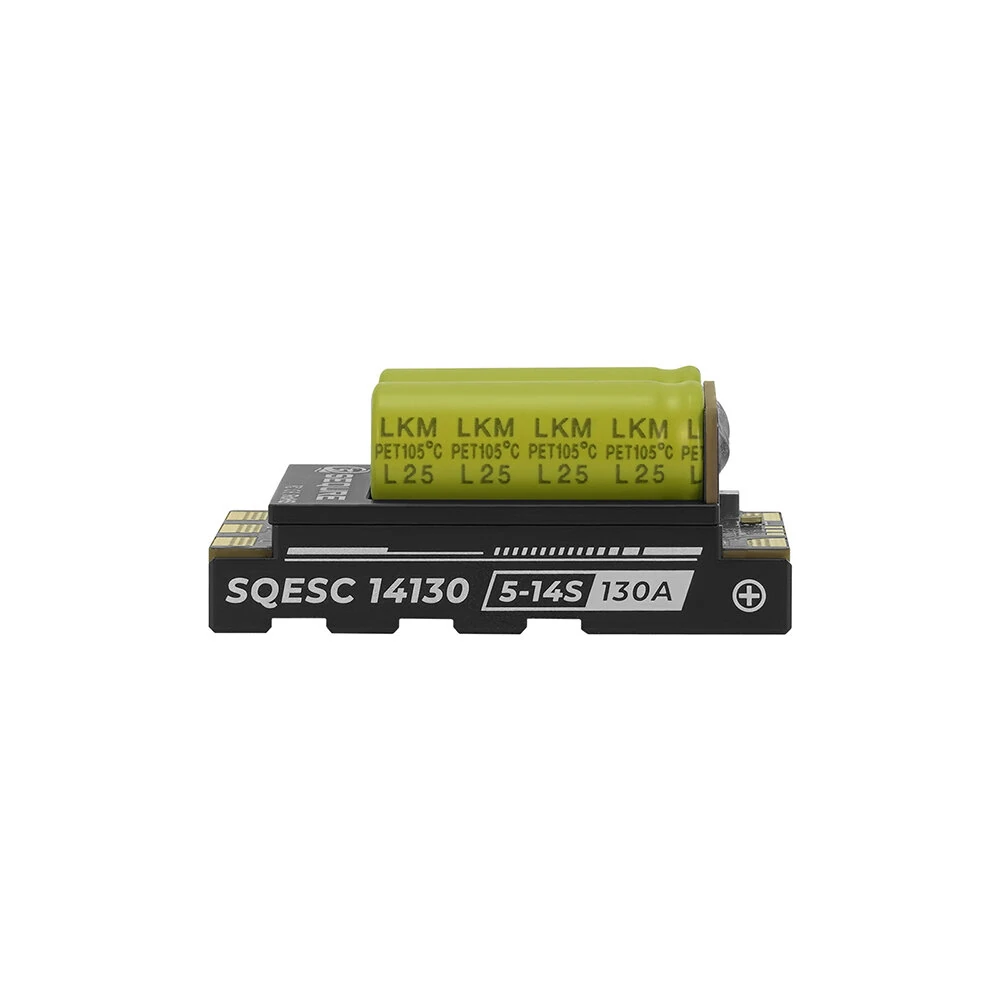

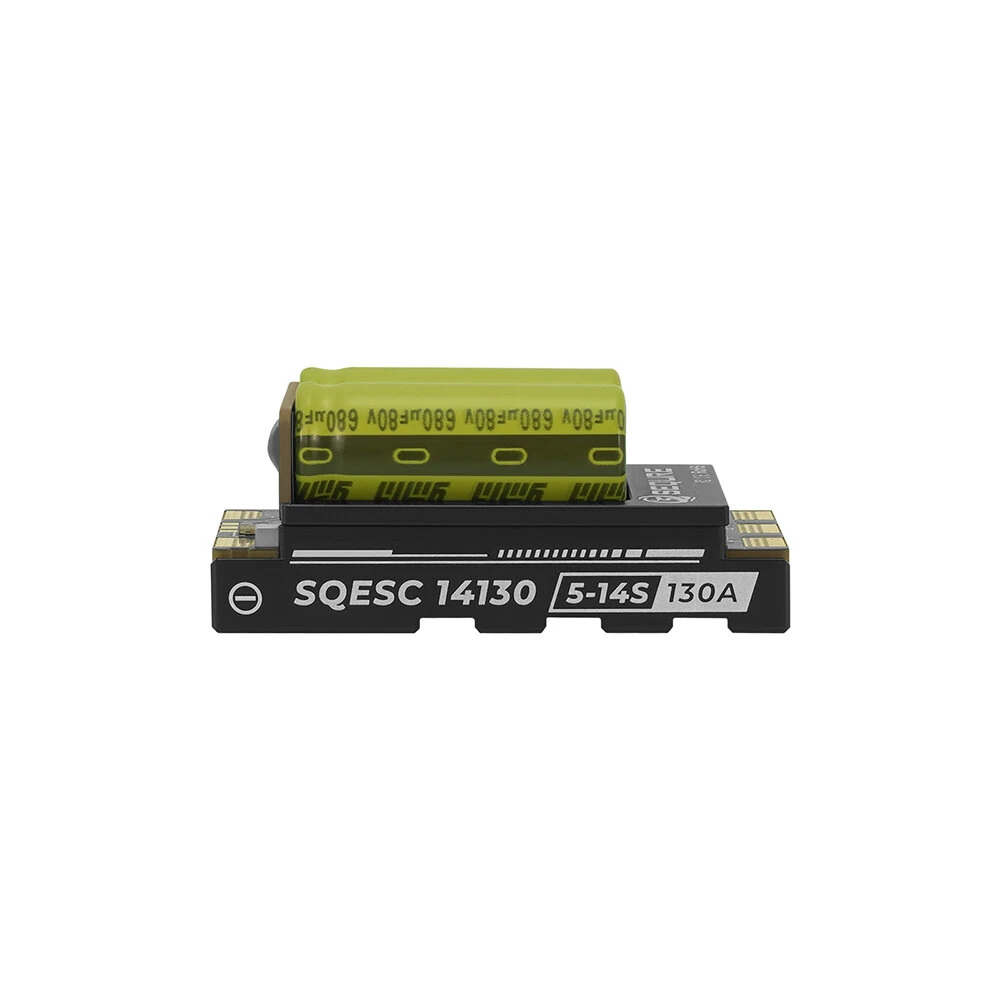

SEQURE SQESC 14130 Brushless ESC 5-14S Lipo Power Supply 130A AM32 / ESCape32 / BLHeli_32 Firmware Suitable for Multi-rotor Drones Airplane Models Crop Protection Aircraft Helicopters Model Ships RC Model Cars Surfboards
1 in stock
- SKU : 2045749
- Condition : New
- Brand : SEQURE
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$91.99 $114.99
Product Description:
(1) Adopting 32-bit high-performance processor STM32G071.Supporting AM32/ESCape32/BLHeli_32 firmware.It can program multiple motion modes of a motor, like unidirectional, bidirectional, and brake.
(2) Equips with high-power MOSFET, and combines with metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(4) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(5) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(6) Onboard RGB LED color light settings, multiple LED colors can be customized.
(7) Widely used in multi-axis UAV, fixed-wing drones, crop protection aircraft, helicopters, multi rotor drones, climbing cars, off-road model vehicles, model ships, surfboards, water sports products, etc.
Parameters of Product:
|
Model Name |
SQESC 14130 |
|
Processor |
STM32G071 |
|
Input Voltage |
DC 18V-59V（5-14S Lipo） |
|
Continuous Current (Good Heat Dissipation) |
130A |
|
Maximum current (Good Heat Dissipation) |
220A |
|
Support Firmware |
AM32，ESCape32，BLHeli_32 |
|
Signal Protocol |
Dshot(All), PWM, Oneshot, Multishot, etc. |
|
RPM Signal Line |
AM32（YES），ESCape32（YES），BLHeli_32（NO) |
|
Programming Parameter Adjustment |
Support |
|
Throttle Calibration |
Support |
|
Timing Angle Setting |
Support |
|
Current Detection |
Support |
|
Telemetry Signal |
Support |
|
Motor Steering Settings |
Support |
|
RGB LED Color Lights |
Support |
|
BEC |
NO |
|
Product Size<span Based on 0 reviewsBe the first to review “SEQURE SQESC 14130 Brushless ESC 5-14S Lipo Power Supply 130A AM32 / ESCape32 / BLHeli_32 Firmware Suitable for Multi-rotor Drones Airplane Models Crop Protection Aircraft Helicopters Model Ships RC Model Cars Surfboards”You must be logged in to post a review. Related productsBrands CarouselAcer
