SG 1603 1604 UDIRC 1601 RC Car Upgraded Brushless 2435 Motor 25A ESC Servo Spare Parts

Description:

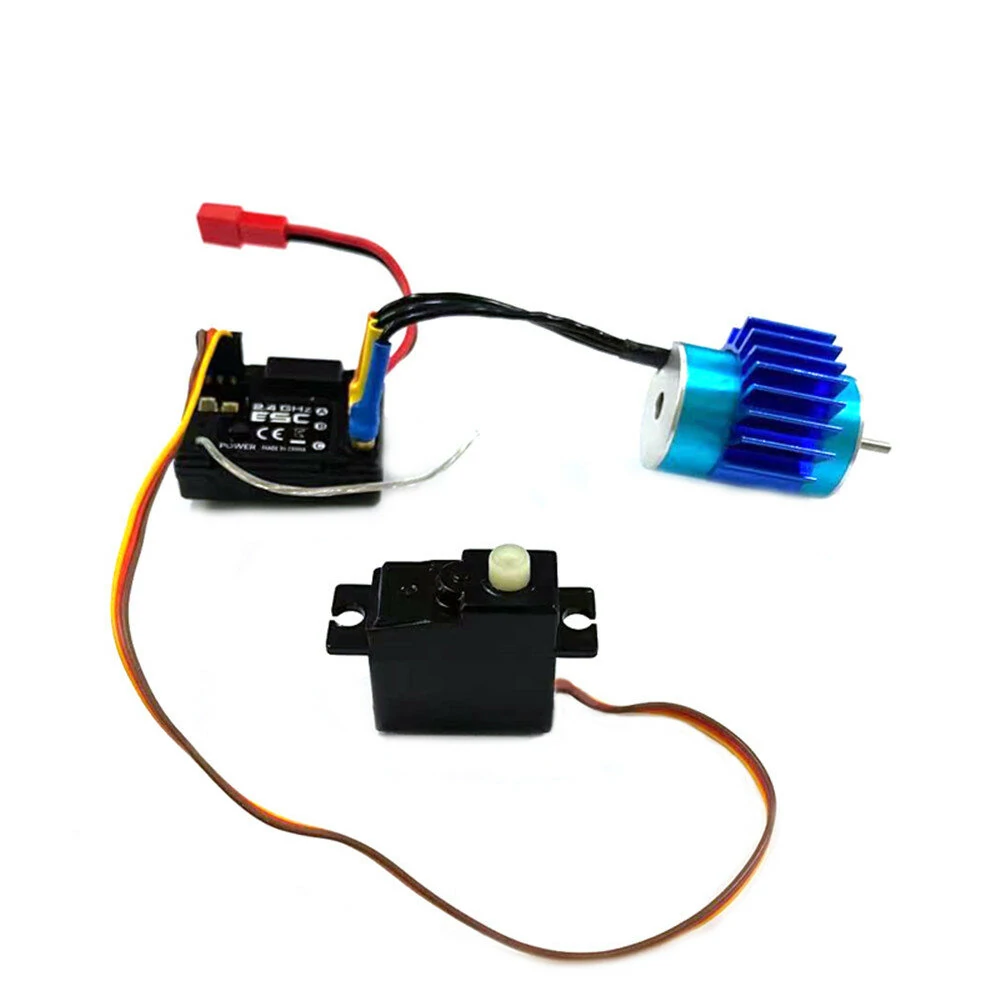

Item Name:Upgraded brushless motor esc servo

Material:Plastic and electronic parts

Color:As shown

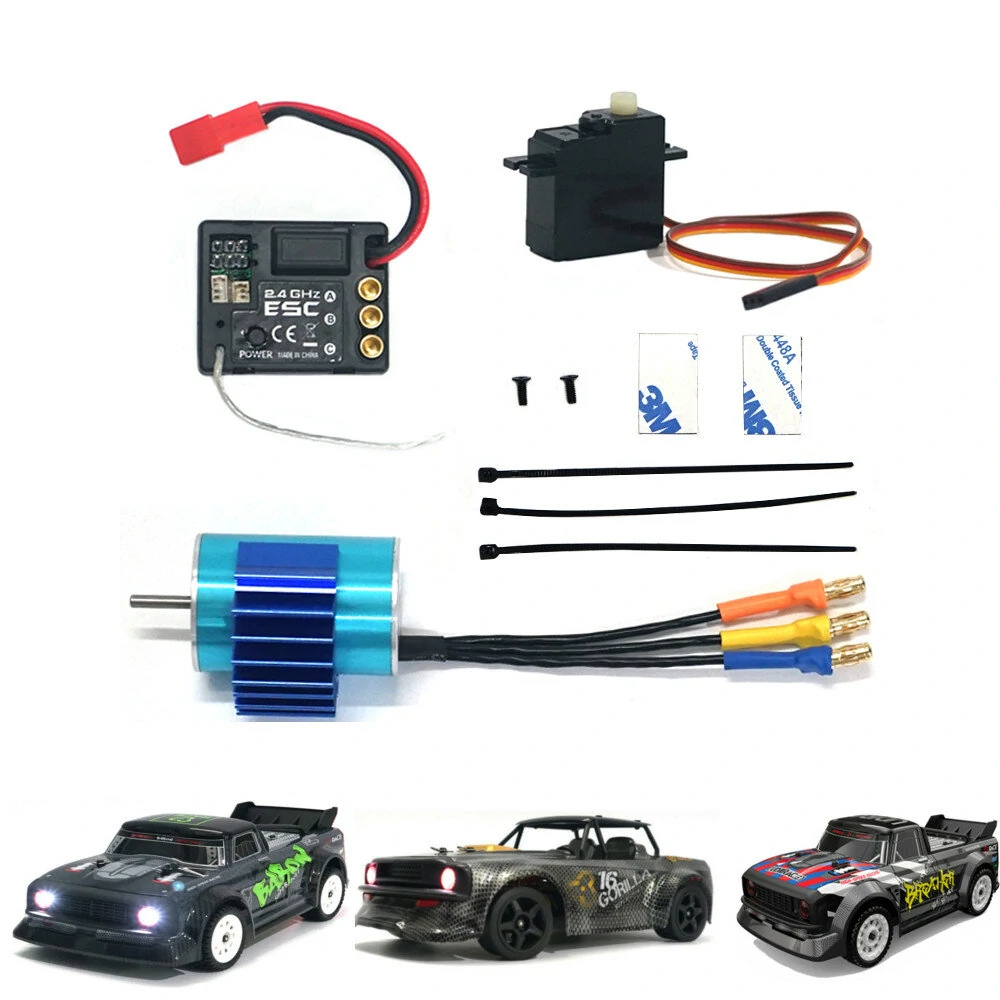

Type:Full set(motor esc servo combo),separately motor/esc/servo(these are not all included,they are optional choosen by yourself)

Product Size:

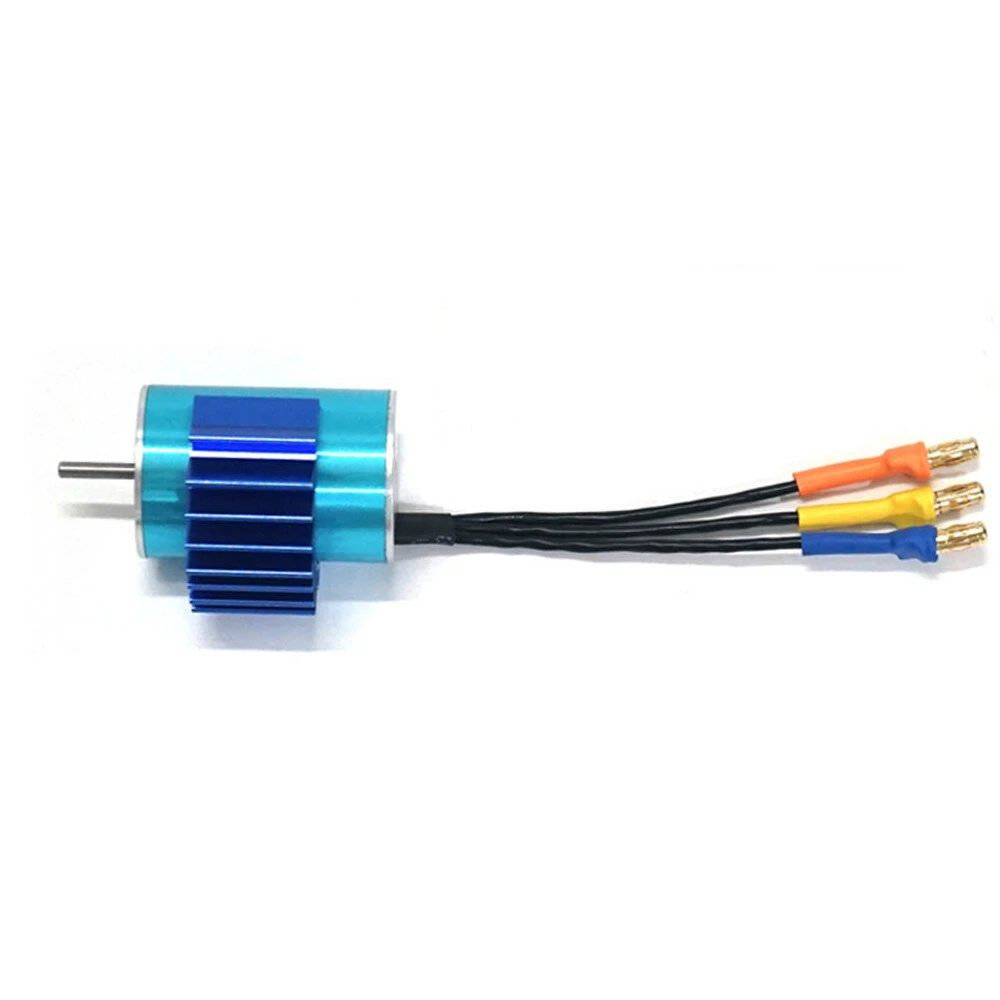

Motor:Motor length is 35mm,motor diameter is 24mm,shaft length is 11.2mm,shaft diameter is 2.3mm,wire length  is 82mm,connector size is 3.5mm

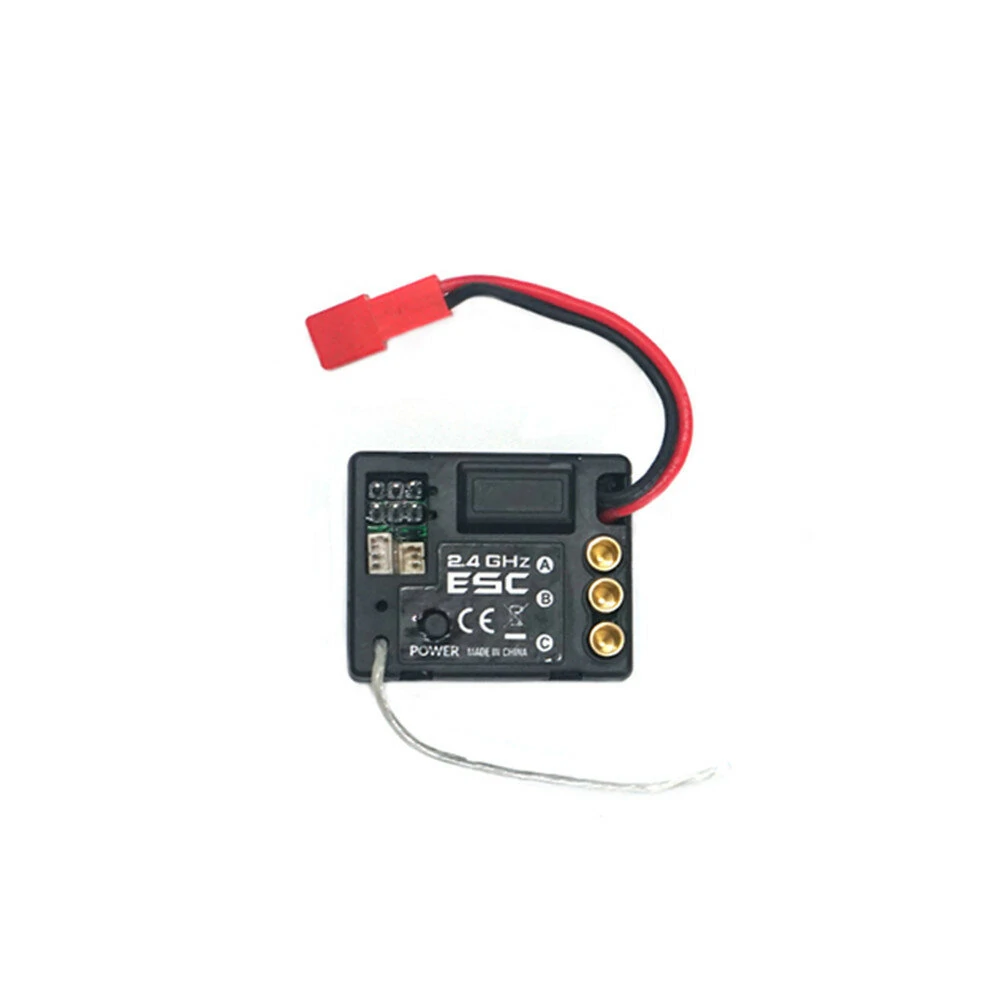

ESC:39.5*31*14,5mm

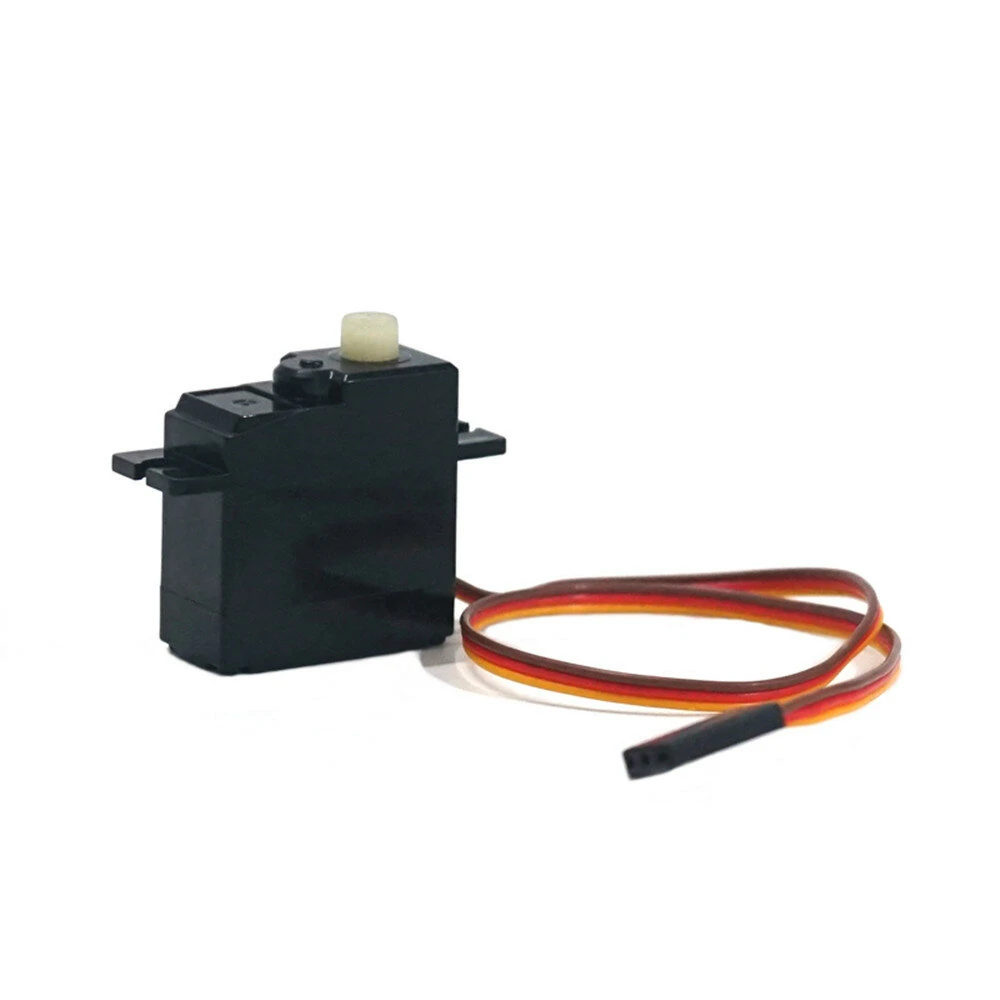

Servo:34*13.3*28mm,wire length is 255mm

Product Weight:Motor is about 63.7g,esc is 16g,servo is 15.2g

Fit For:SG 1603/1604,UDIRC 1601 1/16 rc car vehicles model

Specification:

Motor:Voltage is 7.4v,3900kv

ESC:25A

Servo:17G,1kg torque,3 wires

Note:

This brushless motor,esc and servo can work with 1603,1604 and 1601 original transmitter,you do not need to change remote control,Motor mount also do not need to change

Package Included:

1X Combo or Separate Part(it is selected by yourself)
