SpeedyBee Master 5 V2 Spare Part 226mm Wheelbase 5 Inch Frame Kit / GPS Mount / Antenna Base for DIY Freestyle RC FPV Racing Drone
1 in stock
- SKU : 2009701
- Condition : New
- Brand : SpeedyBee
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
Price range: $14.99 through $109.99
Specifications:
Brand: SpeedyBee
Model: Master 5 V2

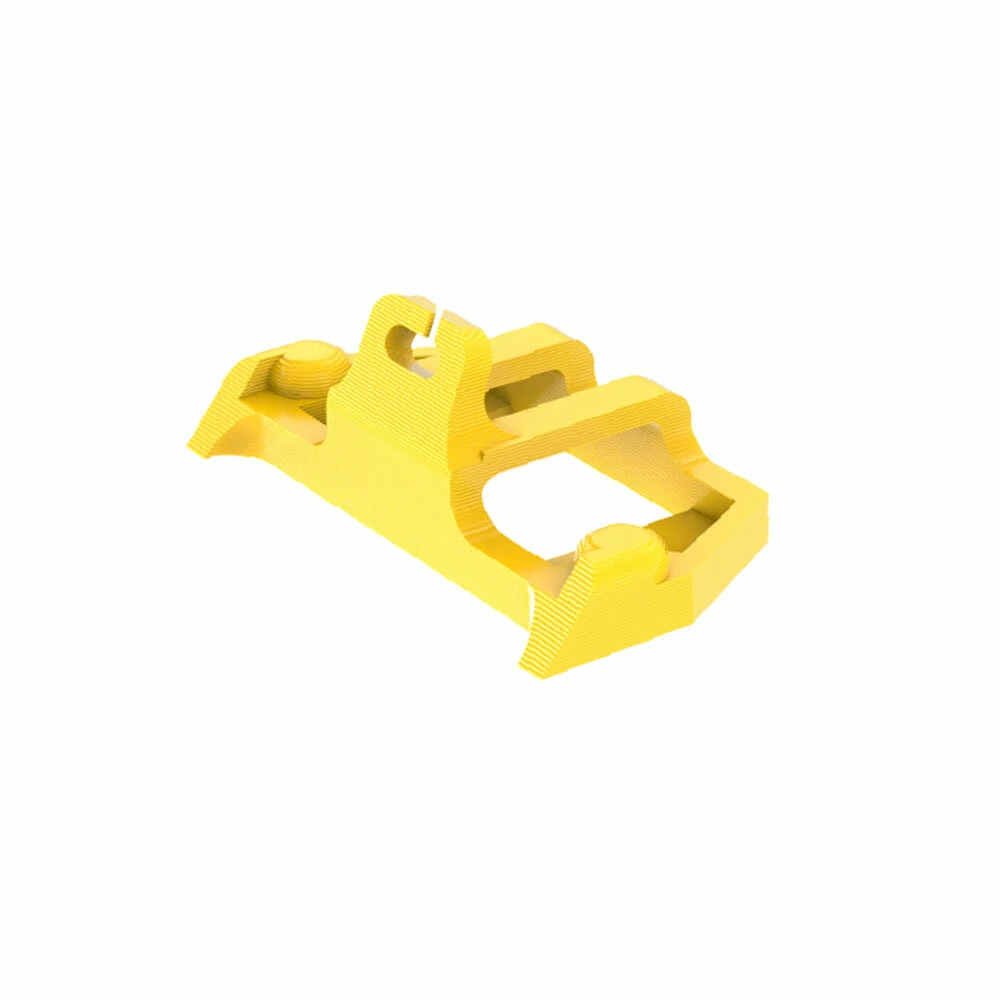

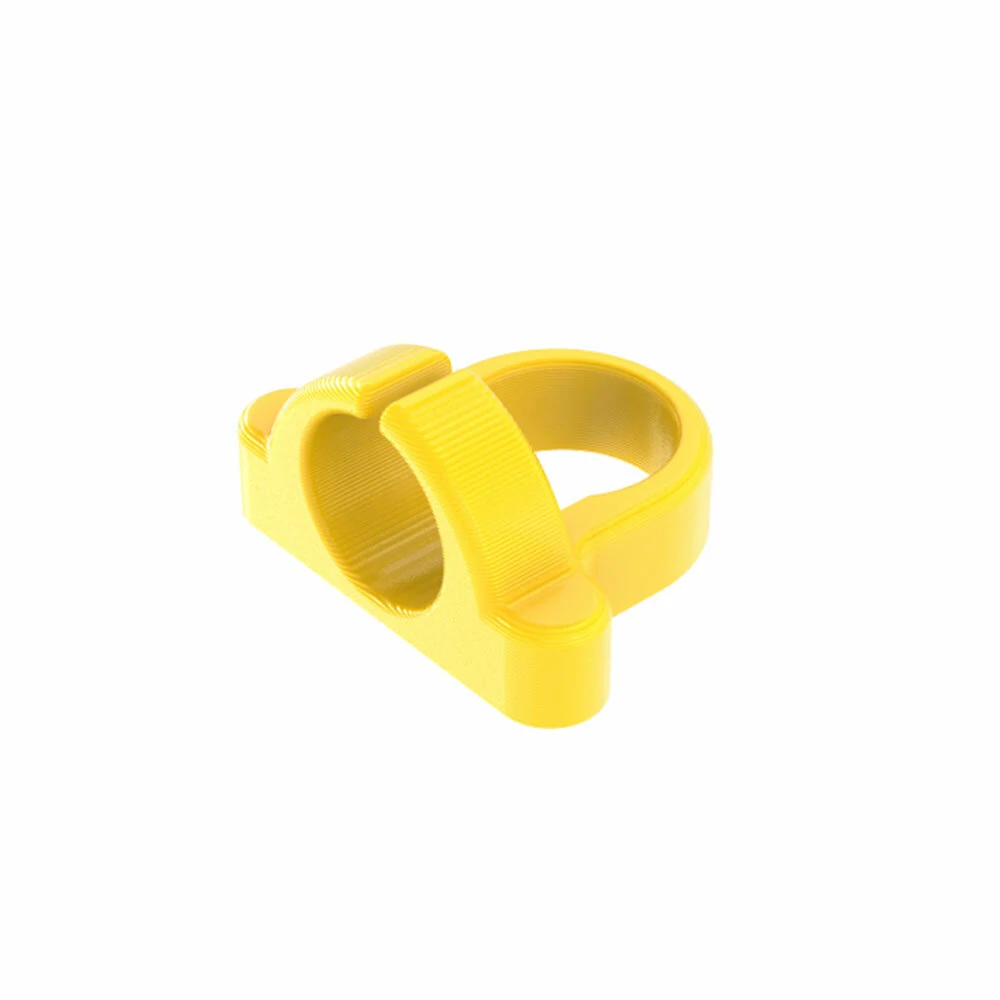

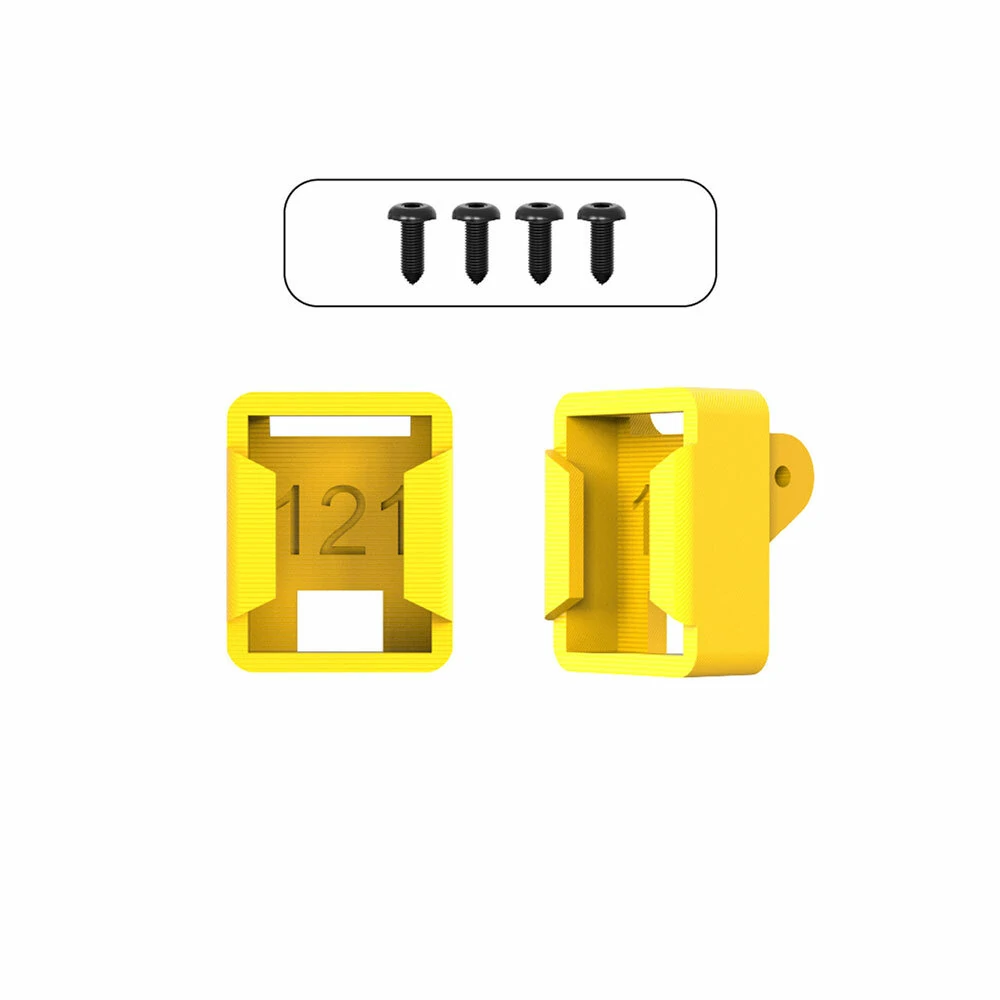

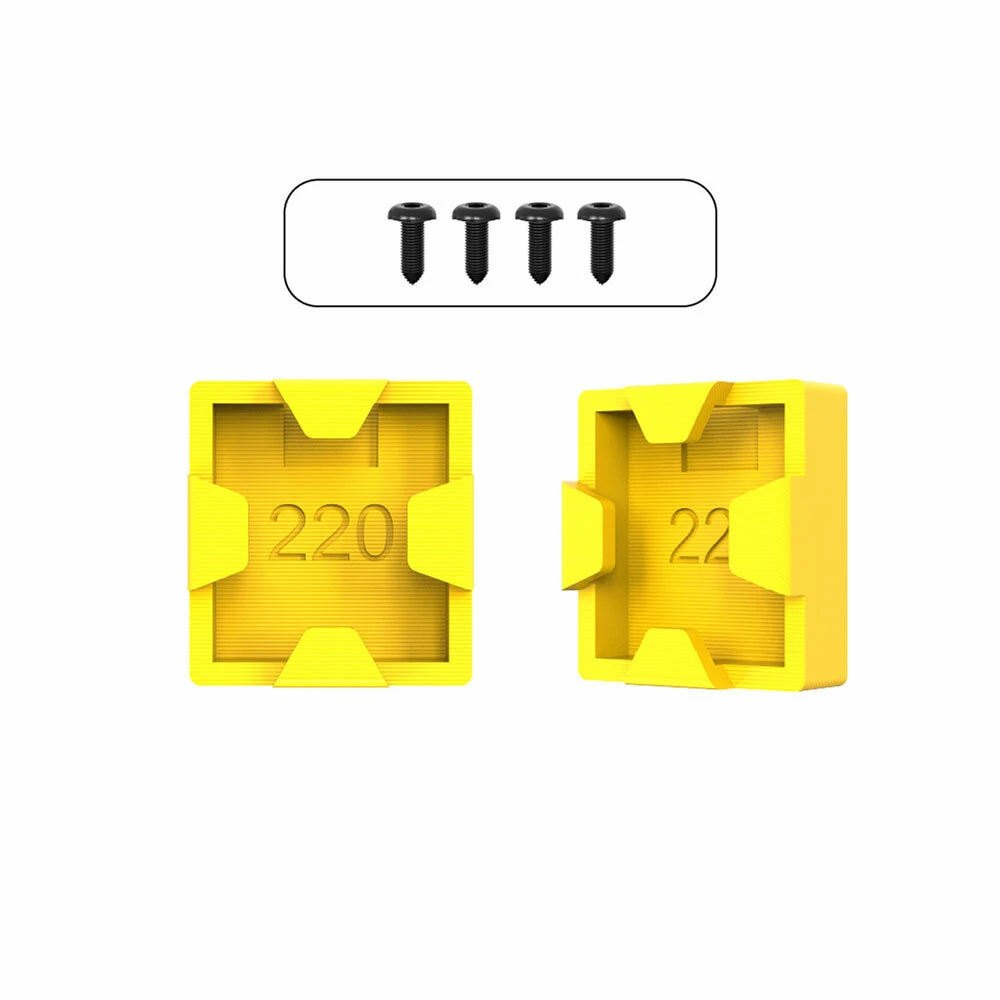

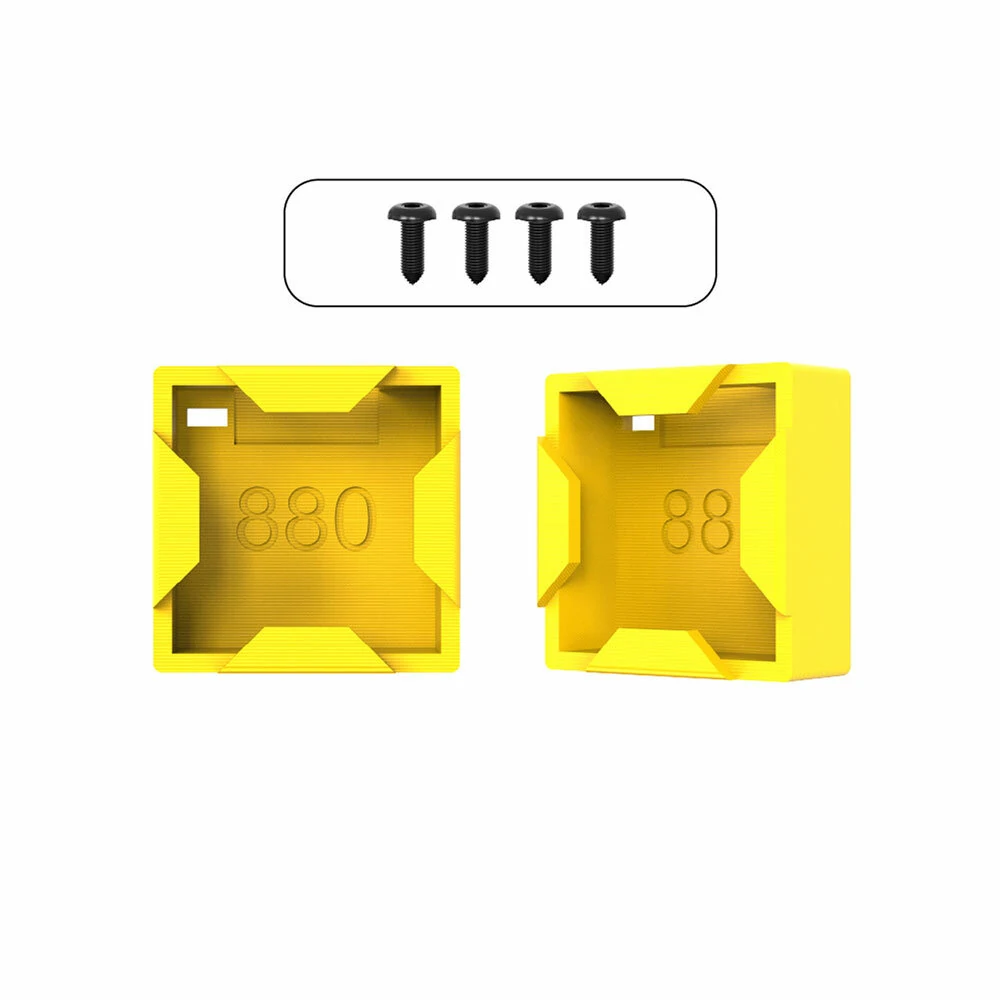

Optiona Version: Empty Frame Kit/Receiver Base/Capacitor & Beeper Base/ 121/181/220/151/880GPS Mount/

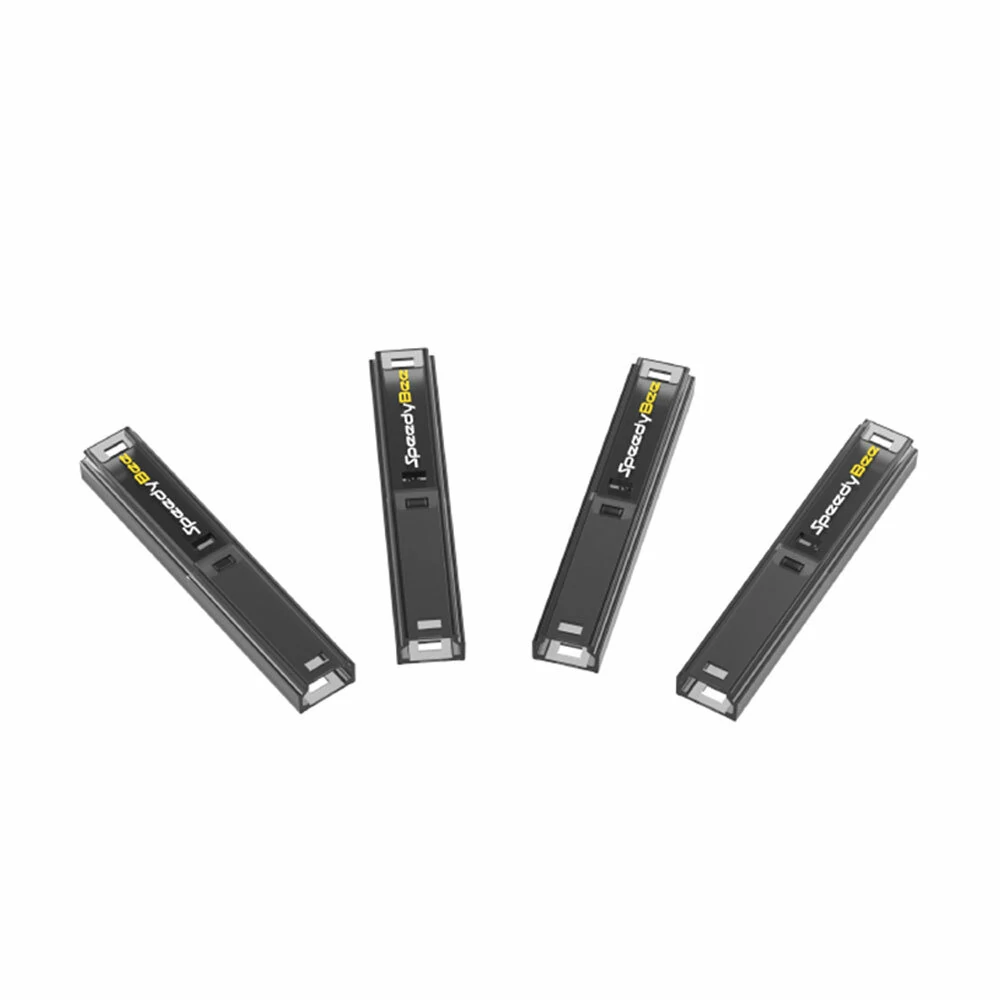

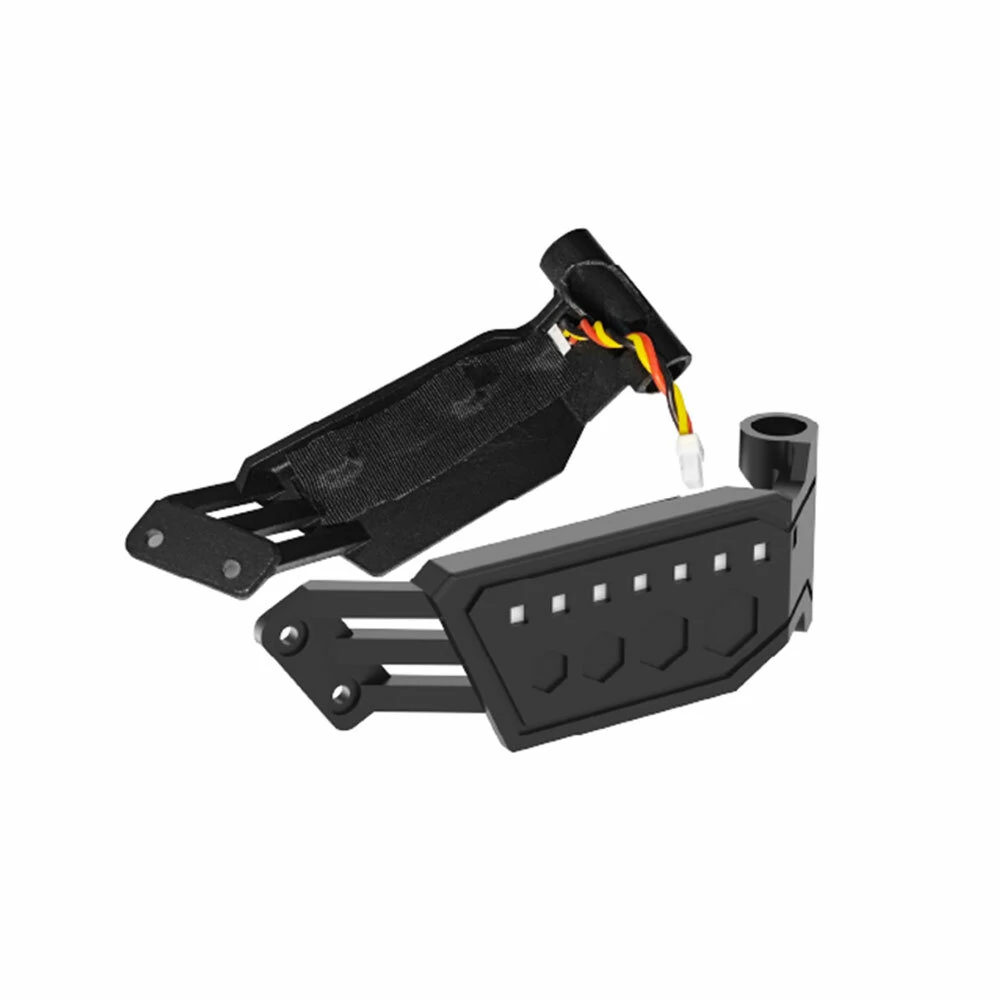

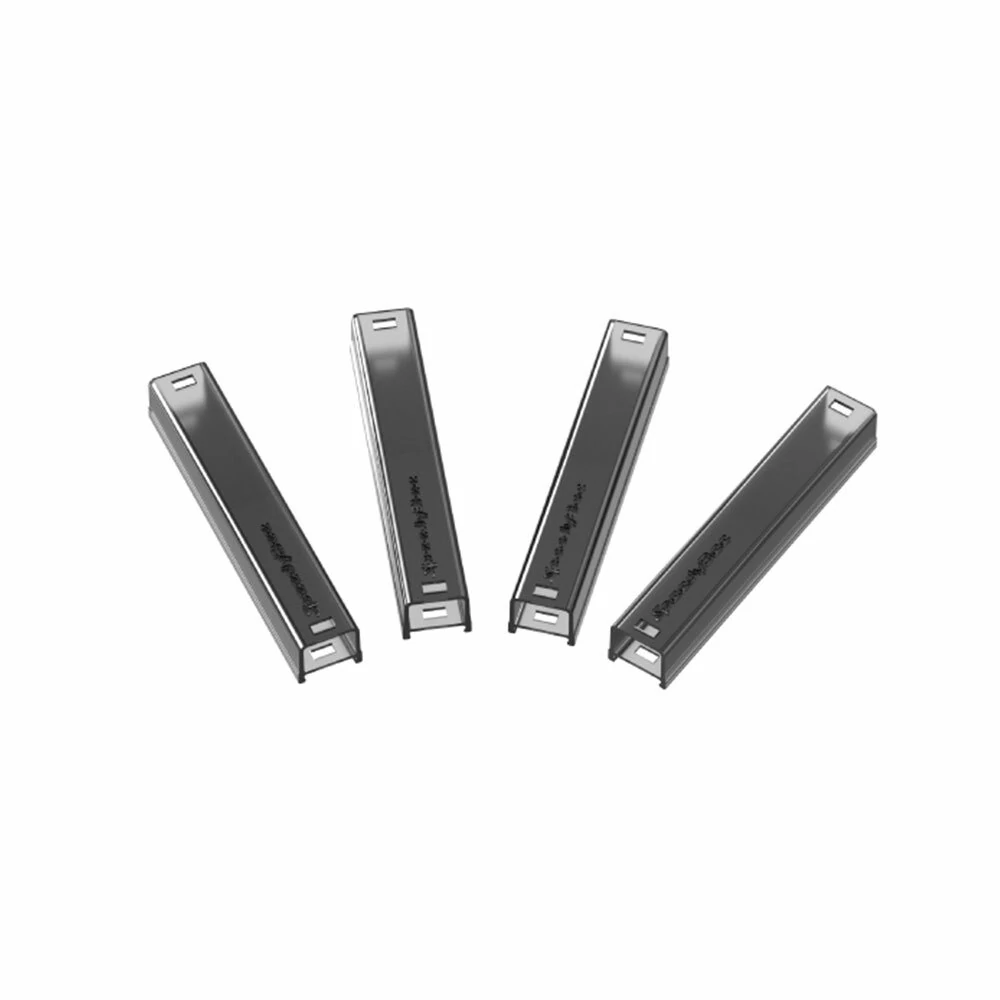

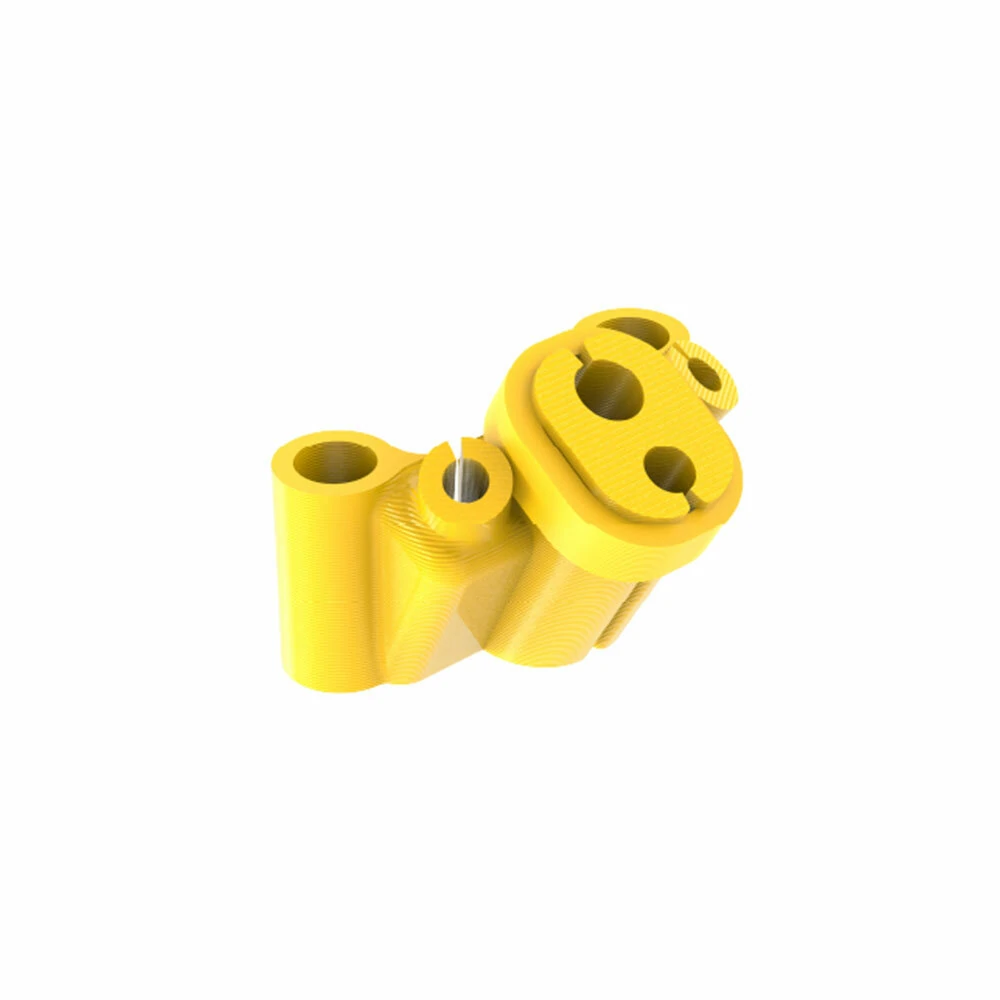

Antenna Base for DJI O3 /LED Protective Tube/Motor Wire Protective Sleeve/Stack Side Plate
Frame Kit Specification
|
10.5000pt;1.0000pt;Frame |
10.5000pt;1.0000pt;Master 5 V2 |
|
10.5000pt;1.0000pt;Wheelbase |
10.5000pt;1.0000pt;226mm |
|
10.5000pt;1.0000pt;Weight |
10.5000pt;1.0000pt;About 140g (non-3D printed parts included) |
|
10.5000pt;1.0000pt;Top plate thickness |
10.5000pt;1.0000pt;2.5mm(T300 3K) |
|
10.5000pt;1.0000pt;Middle plate thickness |
10.5000pt;1.0000pt;2mm(T300 3K) |
|
10.5000pt;1.0000pt;Bottom plate thickness |
10.5000pt;1.0000pt;2.5mm(T300 3K) |
|
10.5000pt;1.0000pt;Arm thickness |
10.5000pt;1.0000pt;5mm(T300 3K) |
|
10.5000pt;1.0000pt;Camera side plate thickness |
10.5000pt;1.0000pt;2mm TUPC |
|
10.5000pt;1.0000pt;Anti-vibration stack structure hardness |
10.5000pt;1.0000pt;Yellow HB80、Translucent HB50 |
|
10.5000pt;1.0000pt;3D printed part |
10.5000pt;1.0000pt;Yellow TPU |
|
10.5000pt;1.0000pt;Motor circlip spacing |
10.5000pt;1.0000pt;Φ8mm |
|
10.5000pt;1.0000pt;Compatible propellers |
10.5000pt;1.0000pt;5-5.1 inch |
|
10.5000pt;1.0000pt;Mounting holes for motors |
10.5000pt;1.0000pt;16*16mm |
|
10.5000pt;1.0000pt;FC mounting hole |
10.5000pt;1.0000pt;30.5×30.5(M3) & 20×20mm (M3) |
|
10.5000pt;1.0000pt;Drone head |
10.5000pt;1.0000pt;7075 CNC aluminum alloy |
|
10.5000pt;1.0000pt;Aluminum standoff |
10.5000pt;1.0000pt;7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm) |
|
10.5000pt;1.0000pt;Internal installation height |
10.5000pt;1.0000pt;23-30mm |
|
10.5000pt;1.0000pt;Standard antenna installation supporT |
10.5000pt;1.0000pt;SMA (single), 4mm for DJI O3, RunCam Link |
|
10.5000pt;1.0000pt;Standard GPS base size |
10.5000pt;1.0000pt;18*18*8mm (other size requiresan additional purchase) |
|
10.5000pt;1.0000pt;Rear Support Mounting Holes |
10.5000pt;1.0000pt;20*20mm – 25.5*25.5mm – 30.5*30.5mm |
|
10.5000pt;1.0000pt;Detachable stack protective plate RGB LED |
10.5000pt;1.0000pt; included |
