Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit Specifications:
Model
KV
Max Watts(W)
Voltage Range(V)
Max Current(A)
Rotor Poles
No load Current(A)
Resistance(Ω)

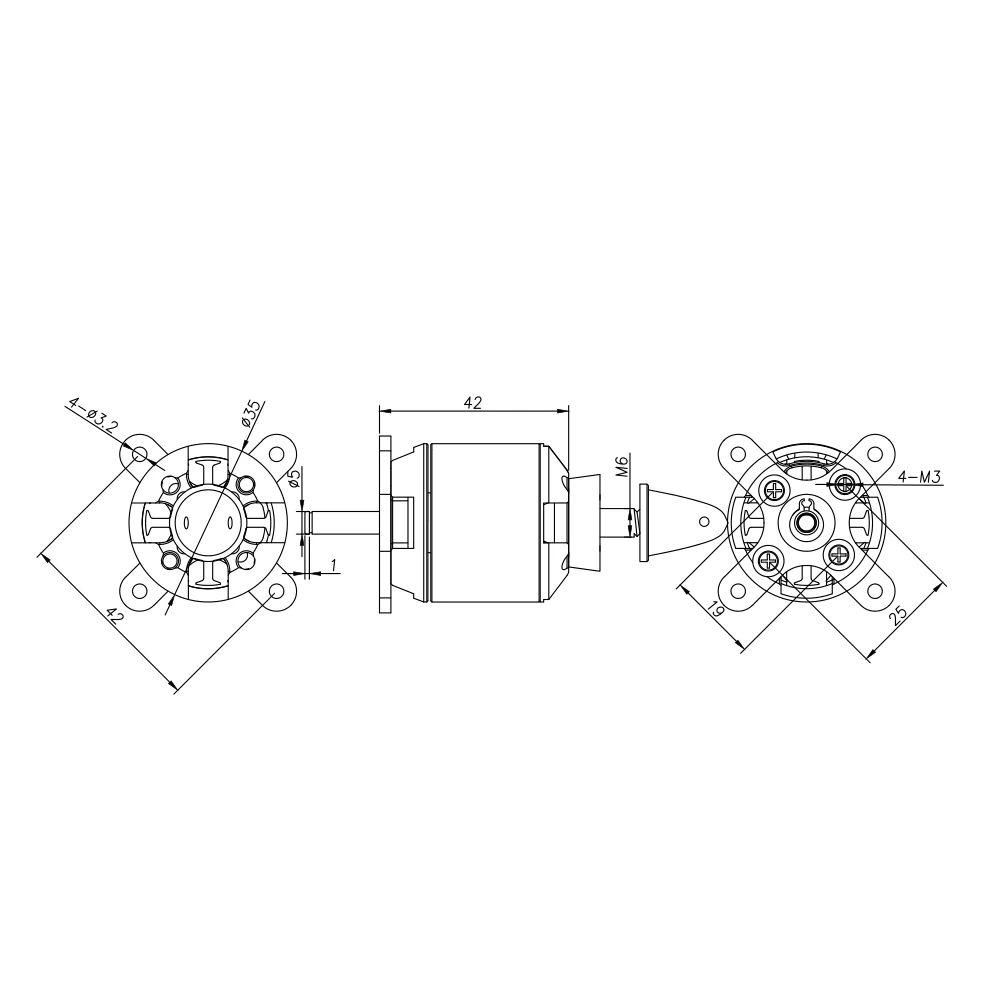

Motor Size(mm)
Stator Size(mm)
Weight(g)
Prop(Inch)
C3542-04
1450
1050
7~15
78
14
2.3
0.021
￠35×42
￠28×20
132
12*5/11*7/13*8
C3542-05
1250
850
7~15
65
14
2.1
0.026
￠35×42
￠28×20
132
8*7/9*5/10*4
C3542-06
1000
750
7~15
55
14
2
0.039
￠35×42
￠28×20
132
10*6/12*6.5/13*8
Features:
– 14Pole 12Slot Hi-torque Motor Design.
– CNC Machined 6061 for T6 Billet Aluminum Heatsink Can.
– High Purity Copper Windings Maximizes Efficiency.
– High RPM ABEC5 Oversized Bearings.
– Precision balanced rotor, smoothness for best reliability and maximum RPM.
– Stator – Super Thin (0.2mm) Laminations.

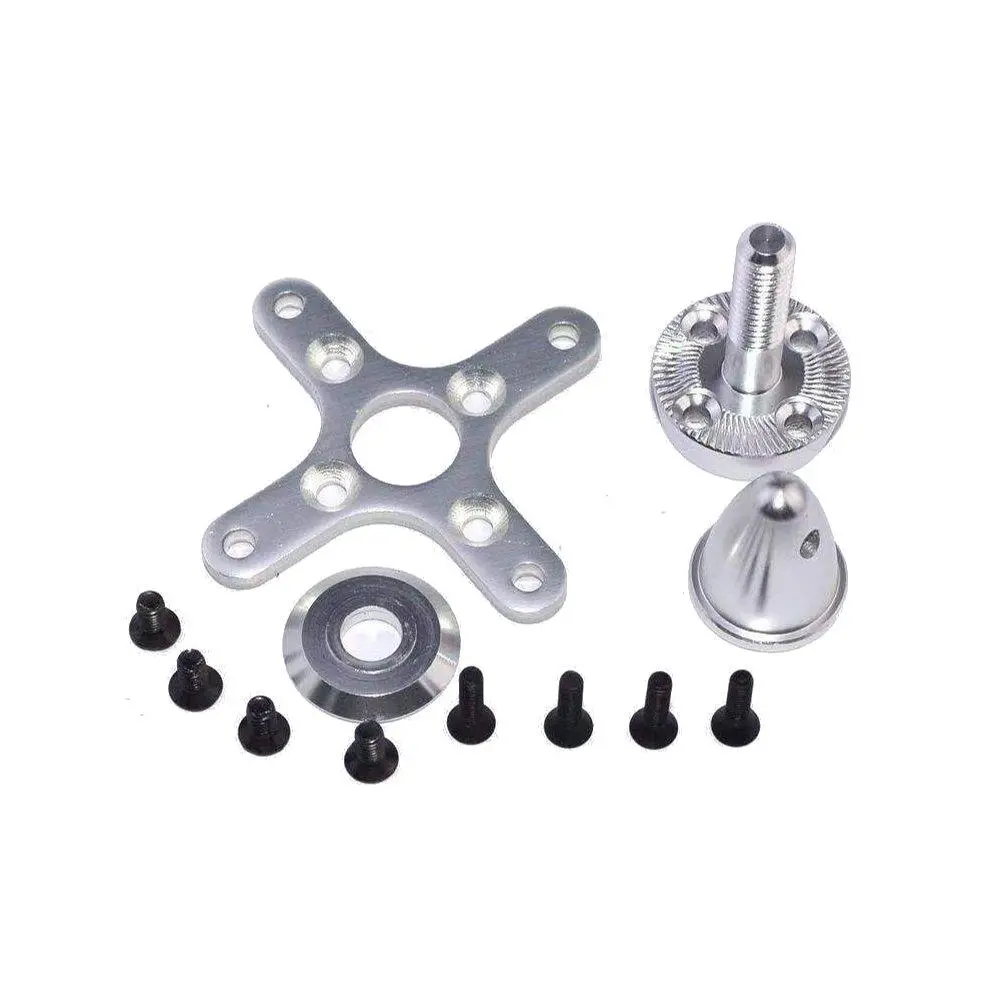

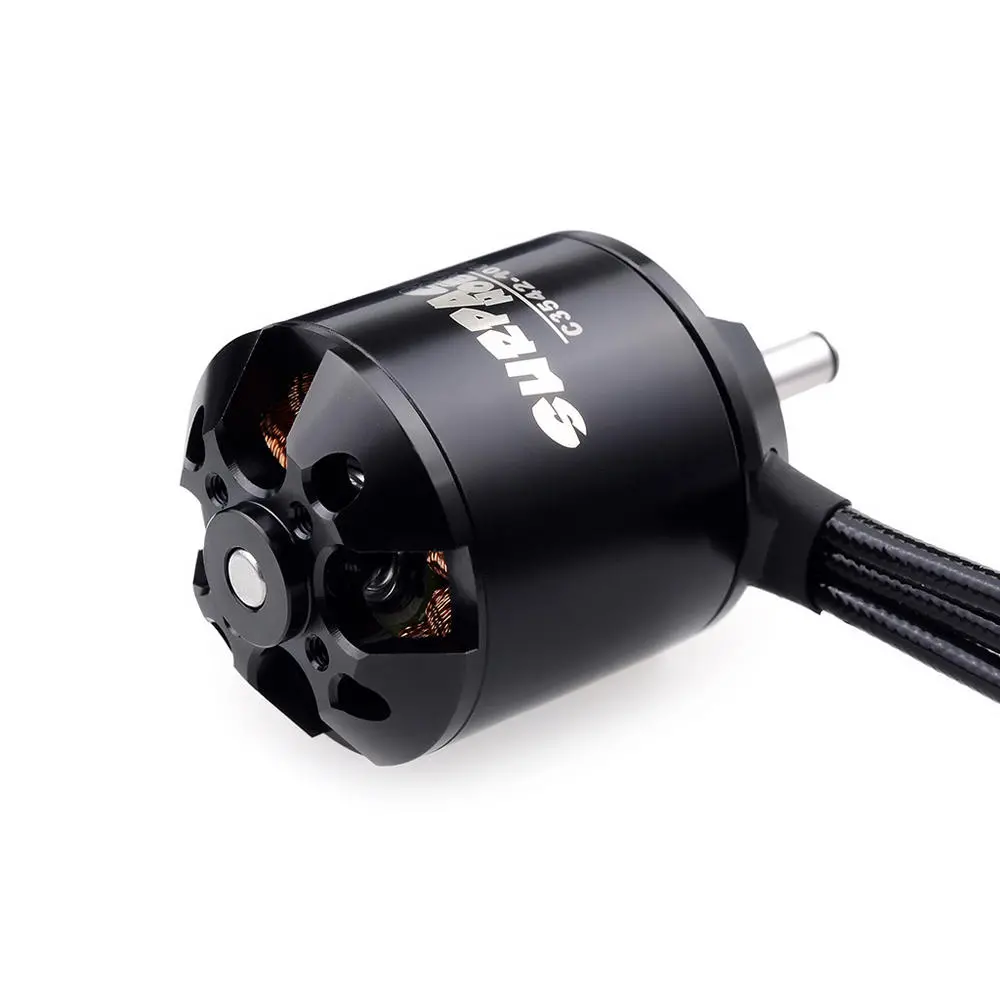

– Precision Engineered for Maximum Energy Conversion. – The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running. – The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain. Package Included: 1x SURPASS Hobby C3542 Outrunner Brushless Motor1x Accessories
