SURPASS HOBBY GECKO MINI 24 Brushless ESC+1212 Brushless Motor Combo For 1/24 RC Car Parts
1 in stock
- SKU : 2045617
- Condition : New
- Brand : SURPASS
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
Price range: $28.99 through $82.99
Note:
1.The program card needs to buy separately.
2.This program card only suitable for this ESC.
Specification:
Brand: SURPASS HOBBY

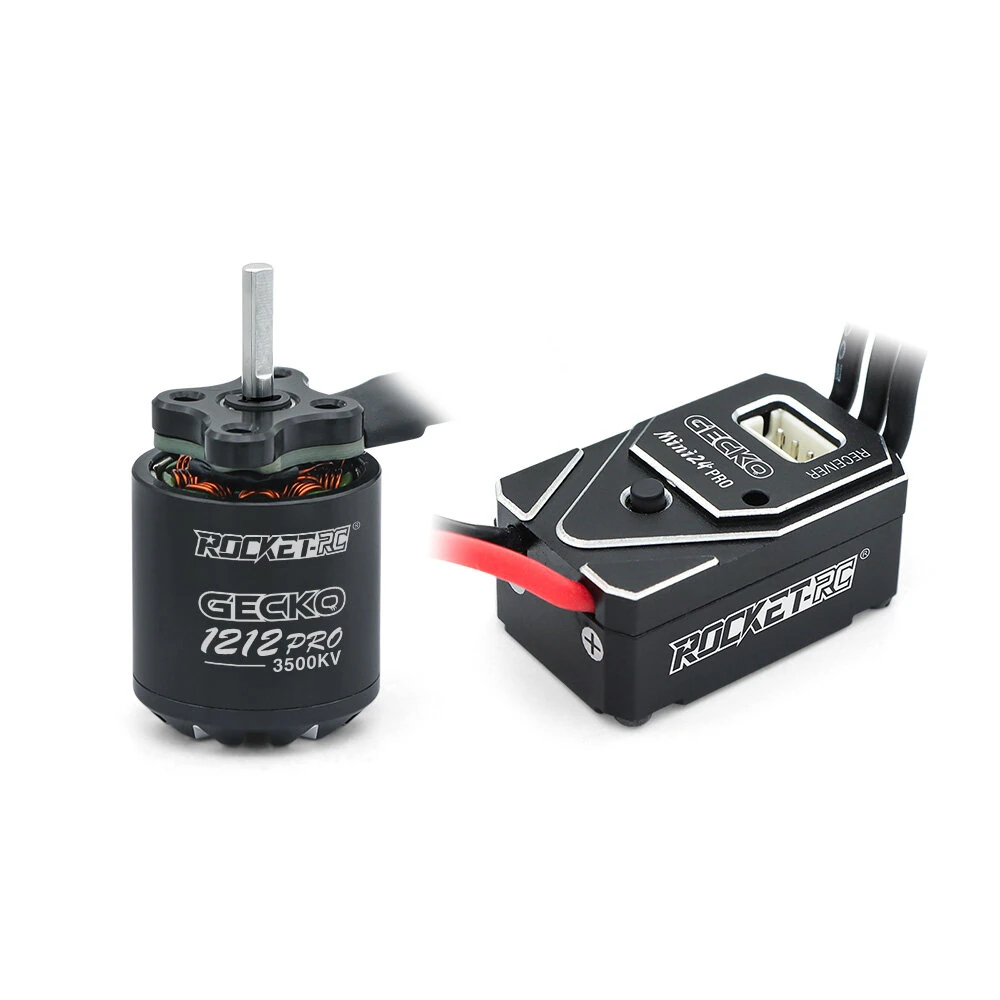

Item Name: GECKO MINI 24 Brushless ESC + GECKO 1212 Brushless Motor Combo / GECKO MINI 24 Pro Brushless ESC + GECKO 1212 Pro Brushless Motor Combo
|
Model |
Parameter |
|

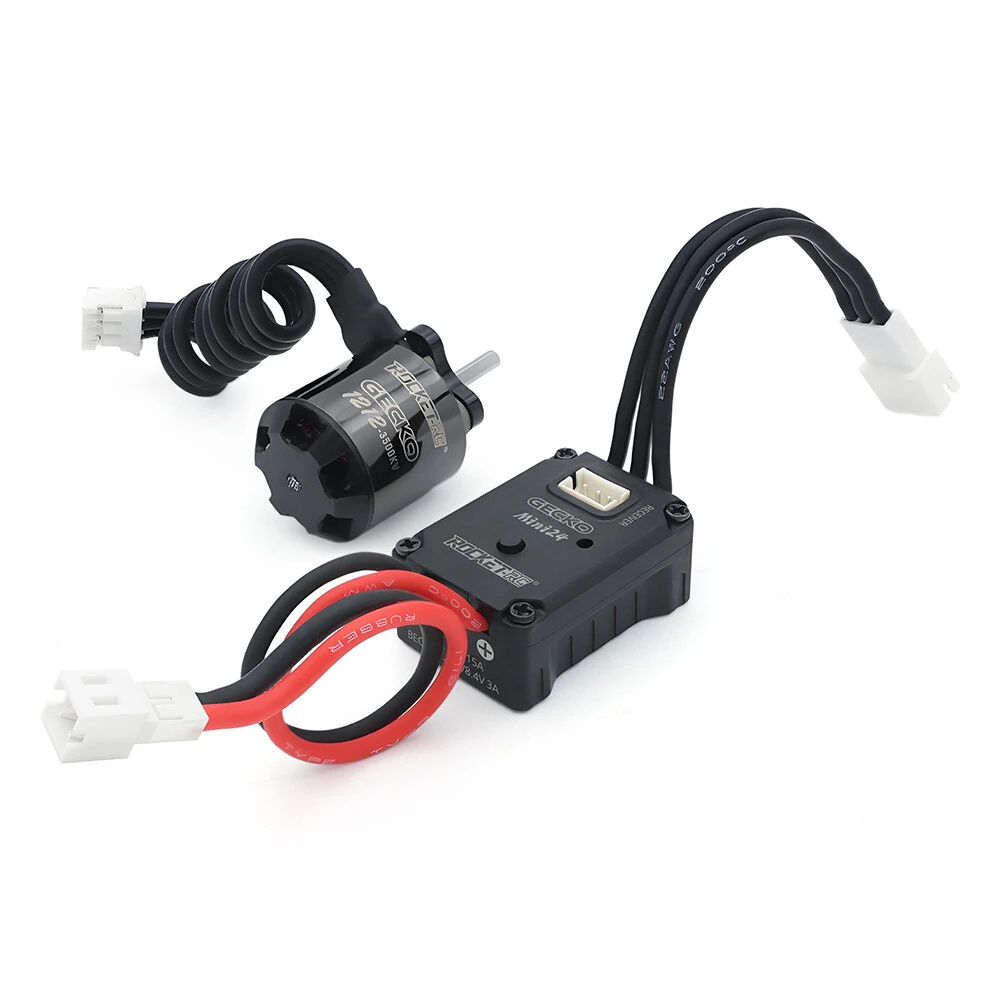

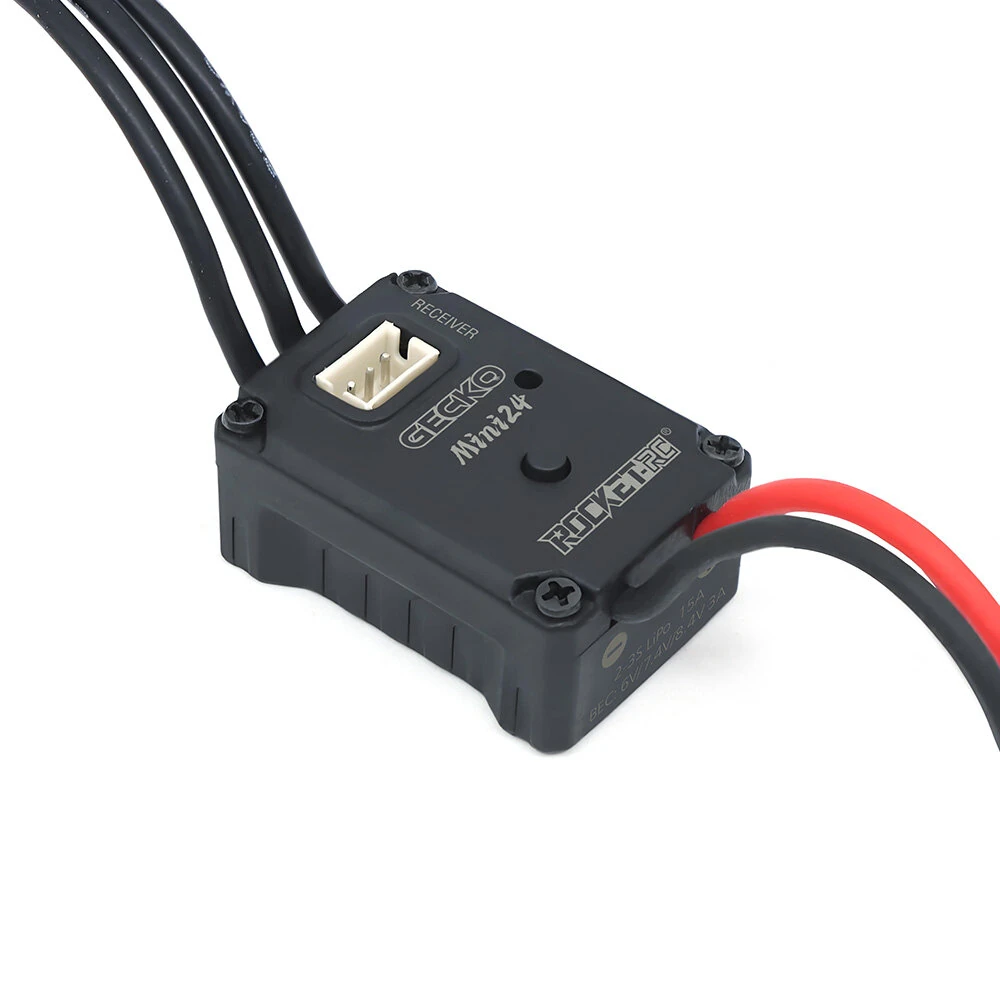

GECKO MINI 24 Brushless ESC |
Shell Material: Plastic Cont.Current: 15A Burst Current:30A Motor Type: Sensorless Brushless Motor Suitable Car:1/24’1/18’1/16′ crawler car Battery: 2~3 cells Lipo,4~9 cells NiMH BEC Output:6.0V/7.4V/8.4V 3A Dimension:24.4×17.5×10.7mm Weight: 7.1g (including wires) Waterproof:Yes |
|

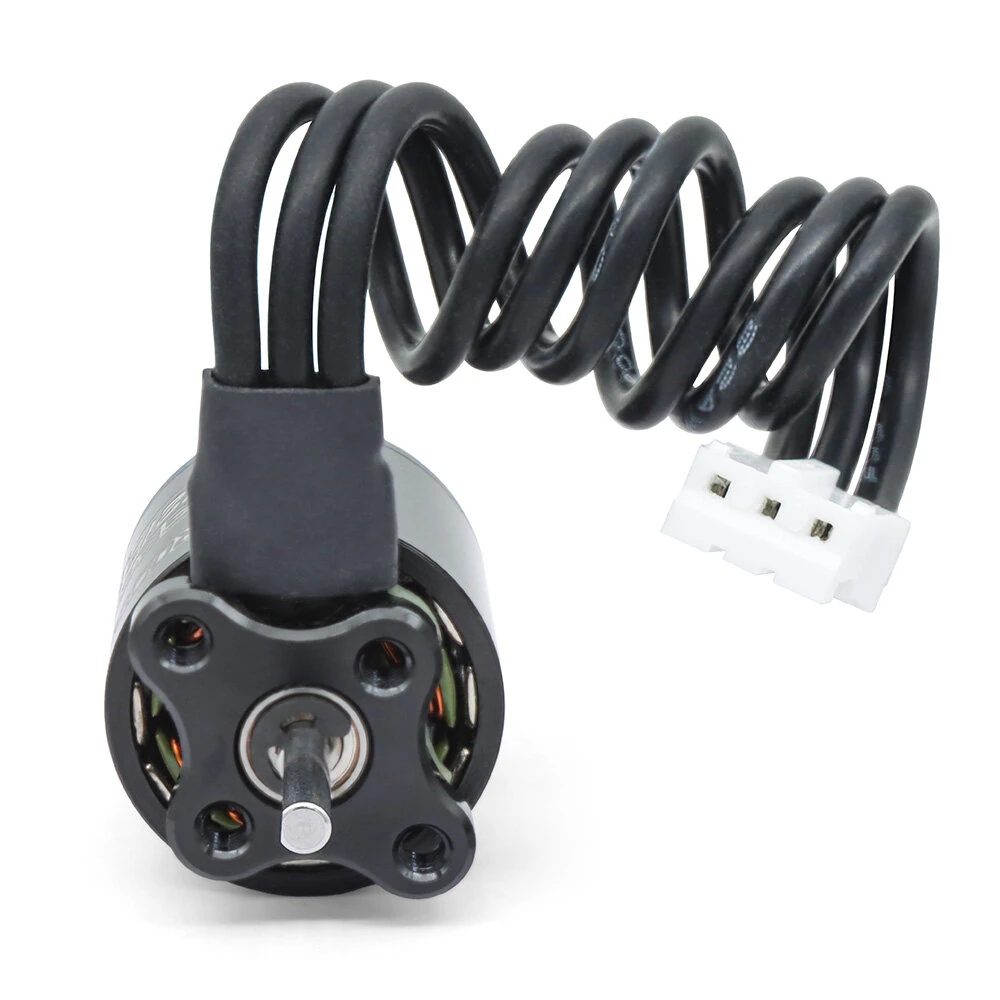

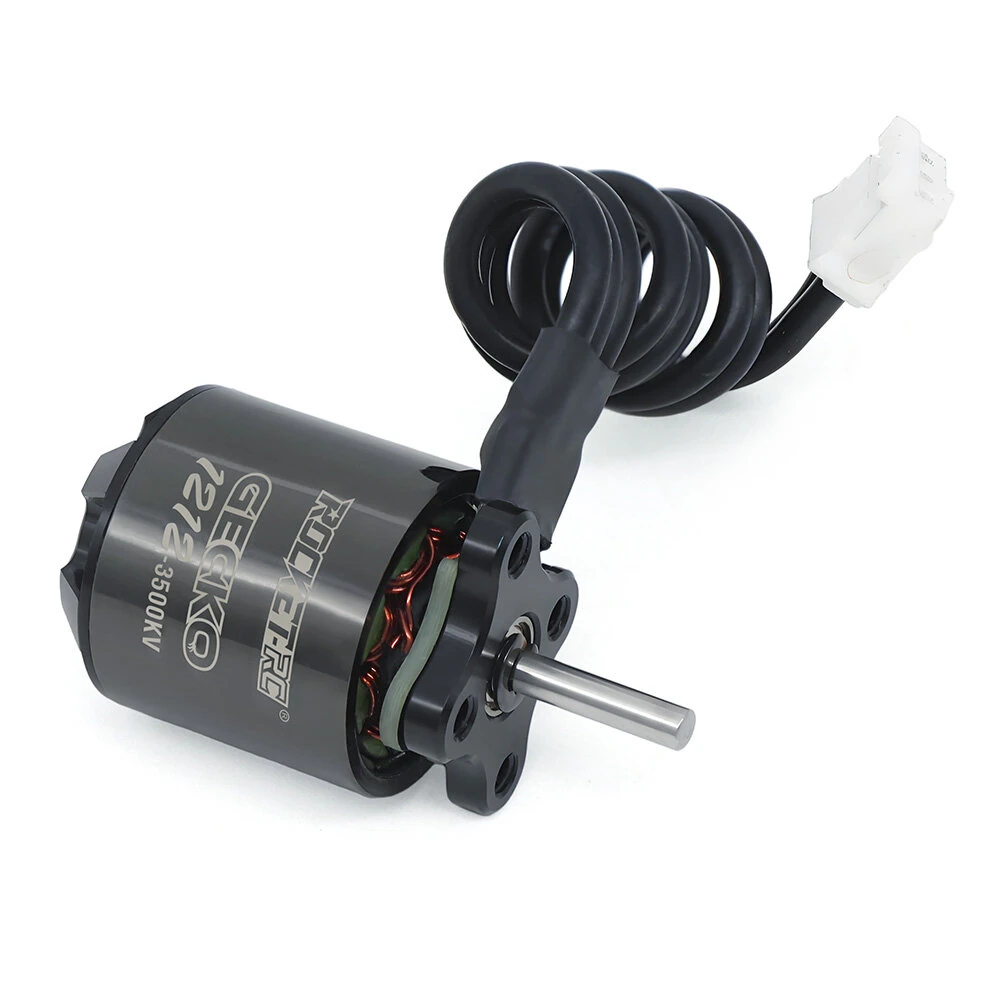

GECKO 1212 Brushless Motor |
KV (RPM/Volt): 3500 Watts (W): 120 Max voltage (V): <8.4 Max Amps (A): 10 Rotor Poles: 14 IO (7.4V) (A): 0.38 Resistance (mΩ): 0.19 Stator Size (mm): Φ12×12 Motor Size (mm): Φ15.8×21 Weight (g): 16.6 Shaft (mm): Φ2×9 |
|

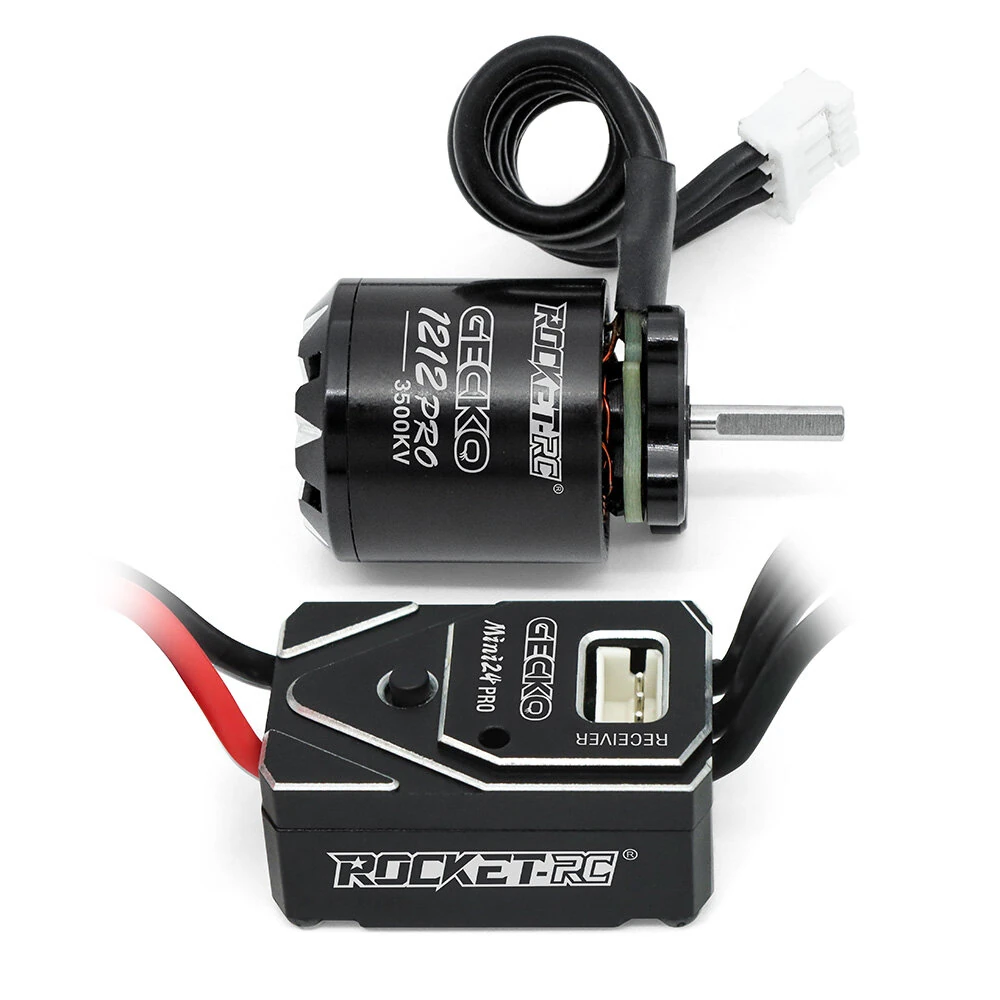

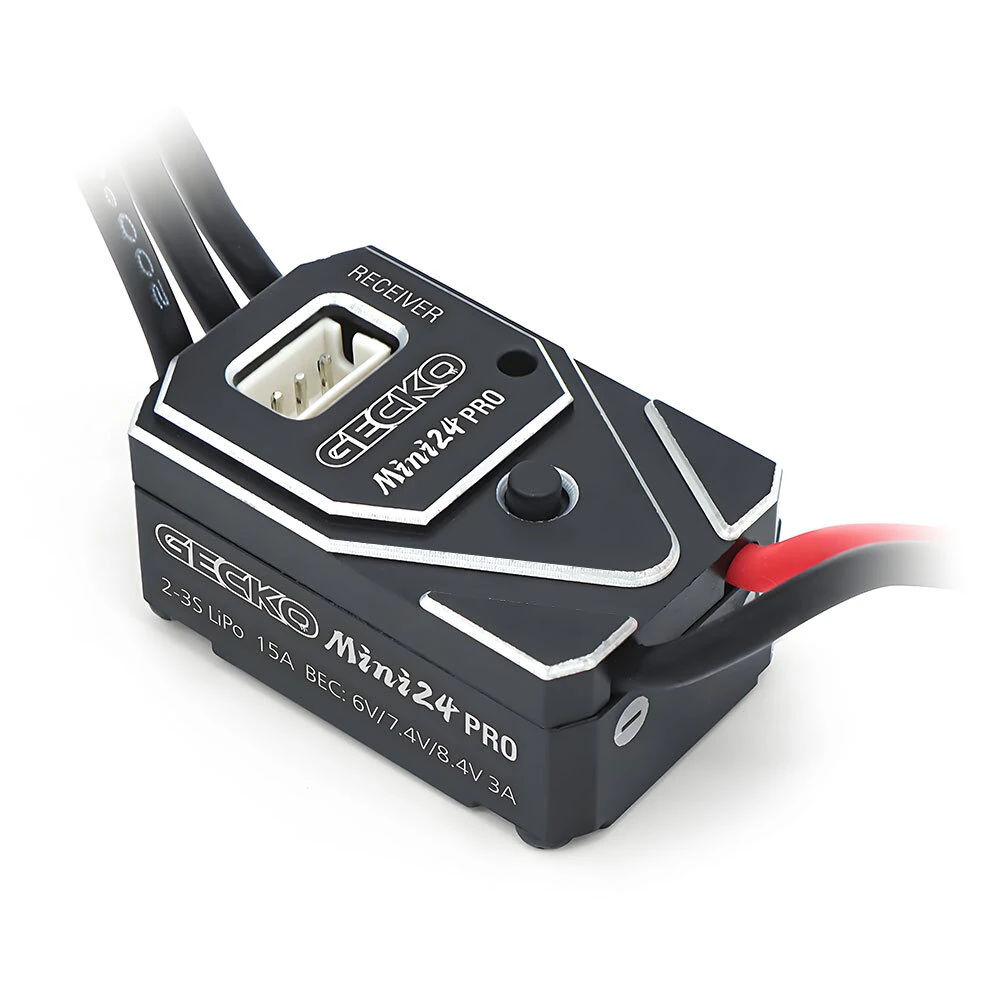

GECKO MINI 24 Pro Brushless ESC |
Shell Material: Metal Cont.Current: 15A Burst Current:30A Motor Type: Sensorless Brushless Motor Suitable Car: 1/24′ 1/18’1/16′ crawler car Battery: 2~3 cells Lipo,4~9 cells NiMH BEC Output:6.0V/7.4V/8.4V 3A Dimension: 23.4 x 15x 11.2mm Weight:8.7g (including wires) Waterproof:Yes |
|

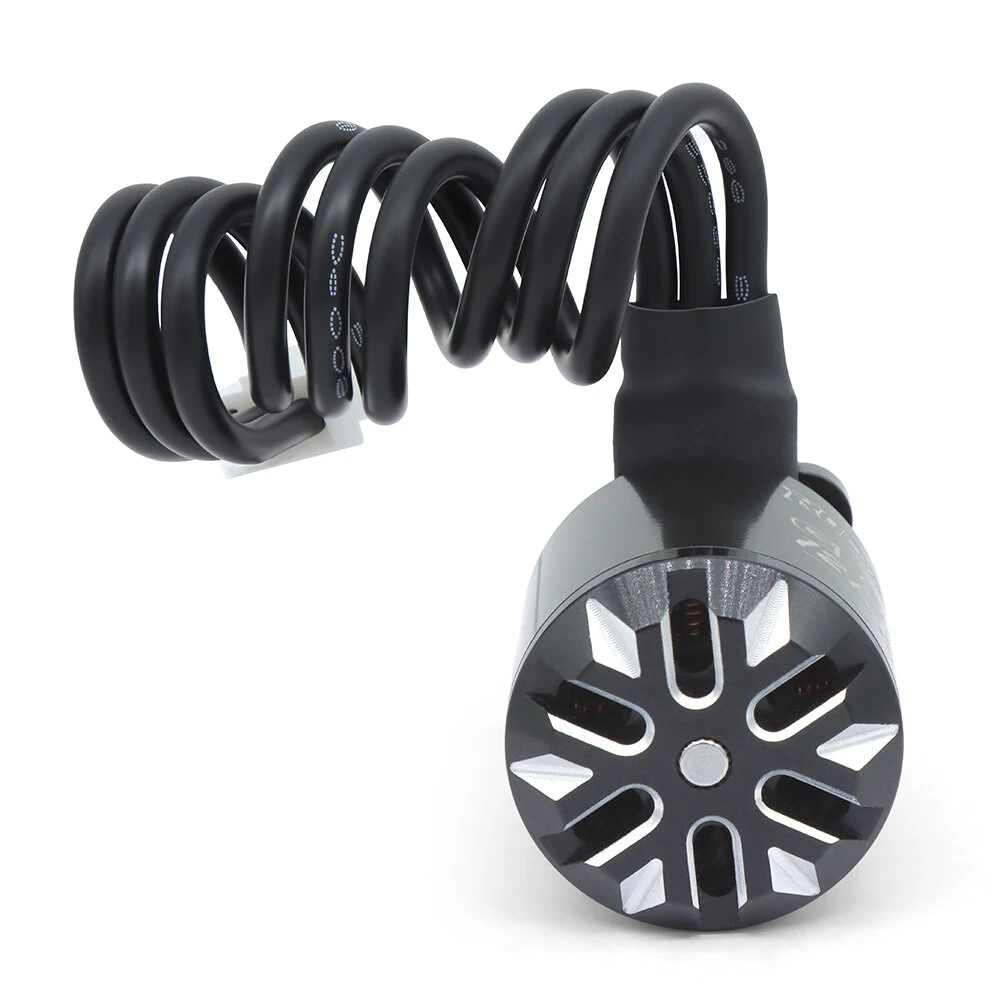

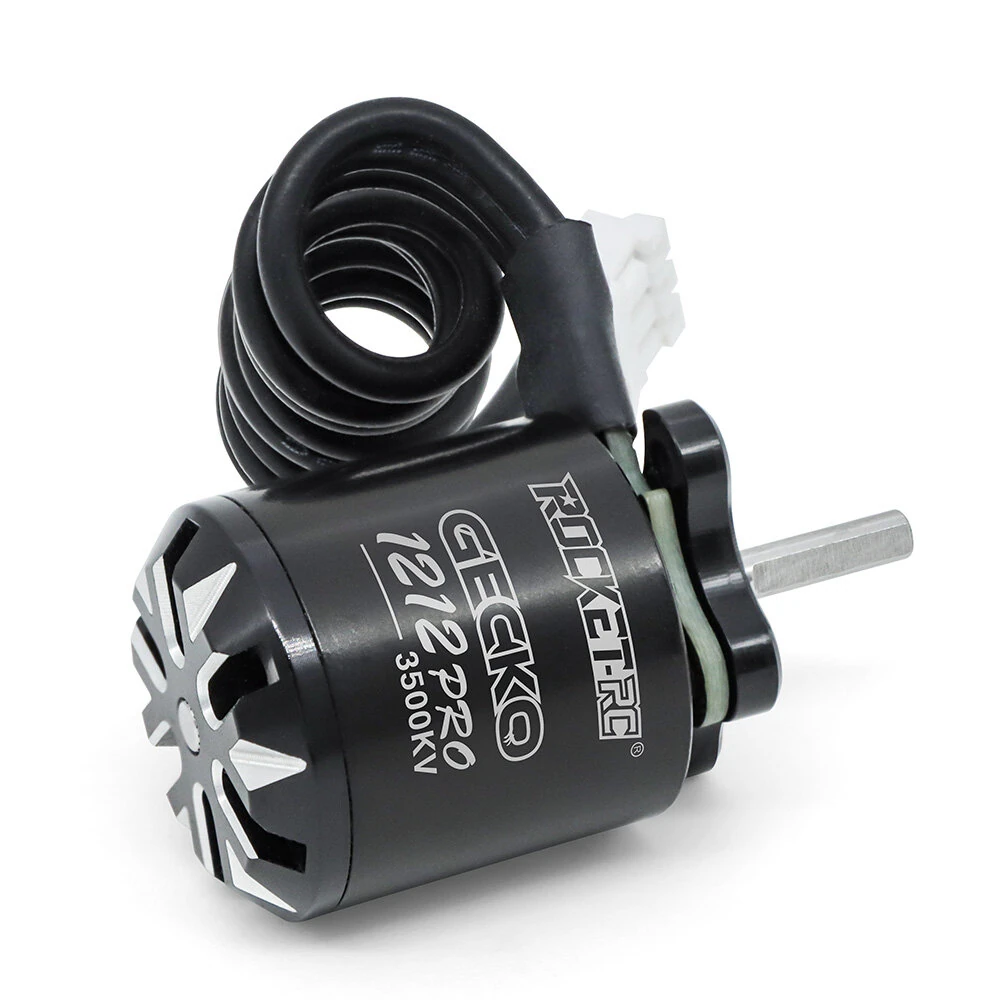

GECKO 1212 Pro Brushless Motor |
KV (RPM/Volt): 3500 Watts (W): 120 Max voltage (V): <8.4 Max Amps (A): 14 Rotor Poles: 10 IO (7.4V) (A): 0.38 Resistance (mΩ): 0.19 Stator Size (mm): Ø12×12 Motor Size (mm): Ø15.8×21 Weight (g): 16.4 Shaft (mm): Φ2×9 |
|
2th Digital Programming Card FOC |
Color: Black Size: 70*43*13mm Weight: 24G |
Motor Feature:
Core Configuration & Quality Assurance
– 220(temperature-resistant insulated copper wire.
– 0.2mm silicon steel sheet reduces eddy current loss, enhancing magnetic flux density.
– Imported precision bearings and premium magnetic circuit system.
– Triple core components ensure stable output under extreme conditions.
Smooth Operation & Exceptional Performance
– The rotor has been calibrated with high-precision dynamic balancing reduces vibration, improving energy efficiency and providing smooth low-speed control.
– Small size, high torque: Powerful at low speeds and even stronger at high speeds.
ESC Feature:
1.Designed for all-weather conditions with waterproof and dustproof protection, delivering outstanding start-up, acceleration, and linear response.
2. Compatible with sensorless brushless and brushed motors.
3. Provides ultra-low-speed linear control, enabling smooth and stable start-up from as low as 0.1km/h.
4. Equipped with sensorless FOC for high torque and low-speed performance, featuring a high magnetic fluxMOSFET drive architecture that boosts low-speed torque by 30%.
5.Hardware and software optimized for mini scale, compatible with chassis smaller than 1/16 scale.
6. Constructed with a lightweight aluminum alloy casing for efficient and balanced heat dissipation.
7.The BEC supports selectable output voltages of 6.0V, 7.4V, and 8.4V, with a maximum output current of 3A.
8. Built-in multiple protection mechanisms, including ESCover-temperature protection, overload protection, low-voltage cutoff, throttle signal loss protection, and motor stall protection.
