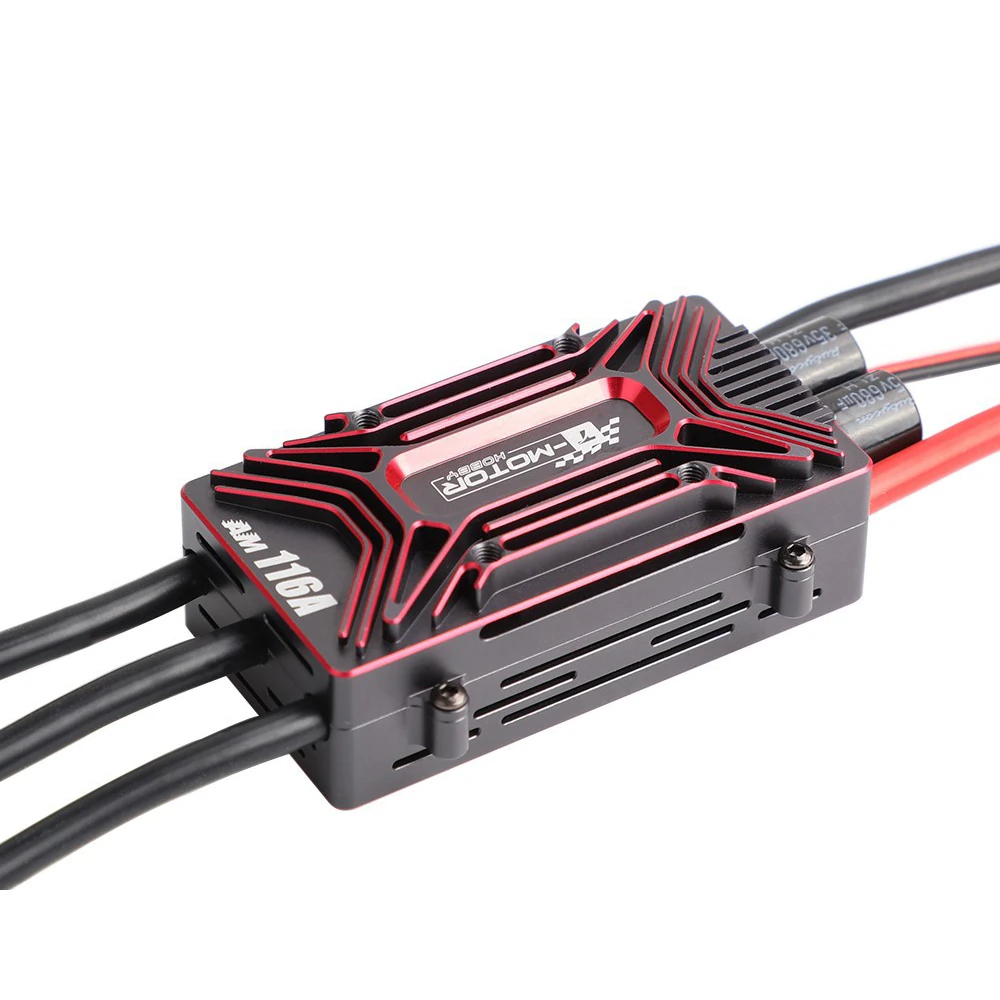

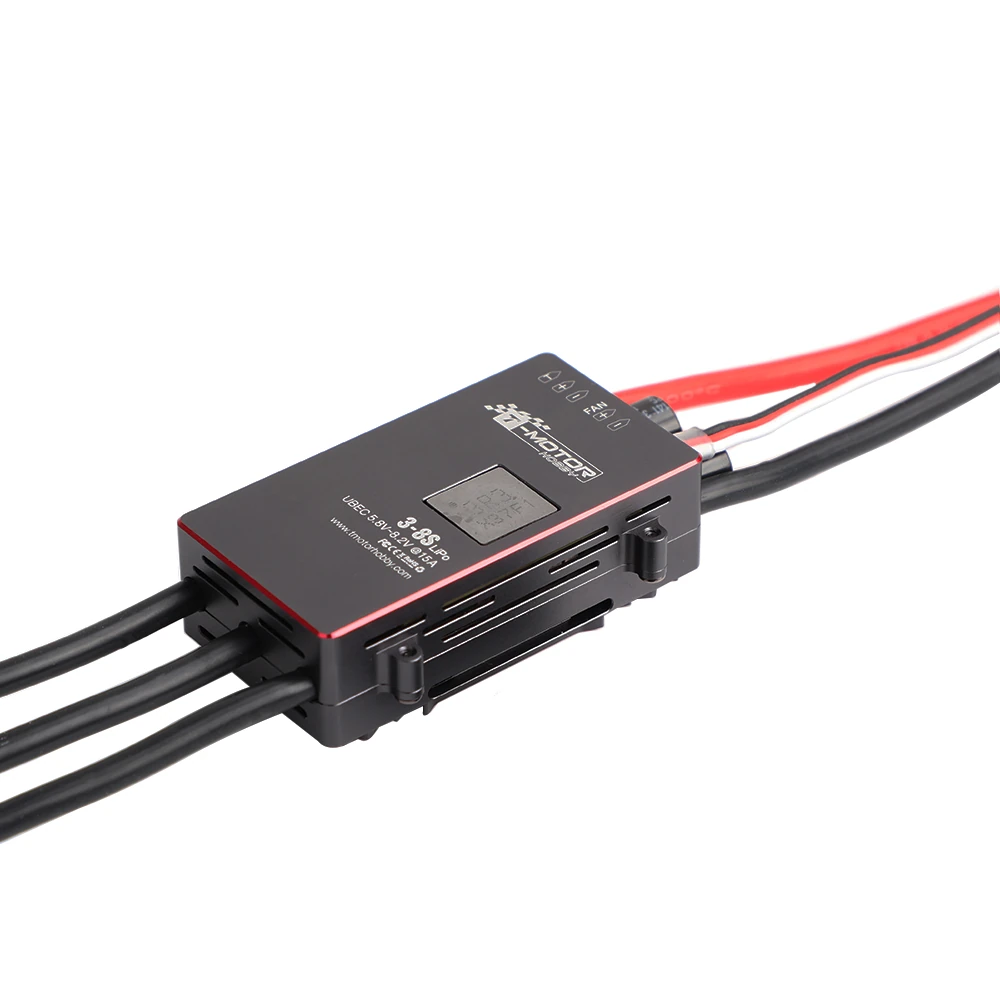

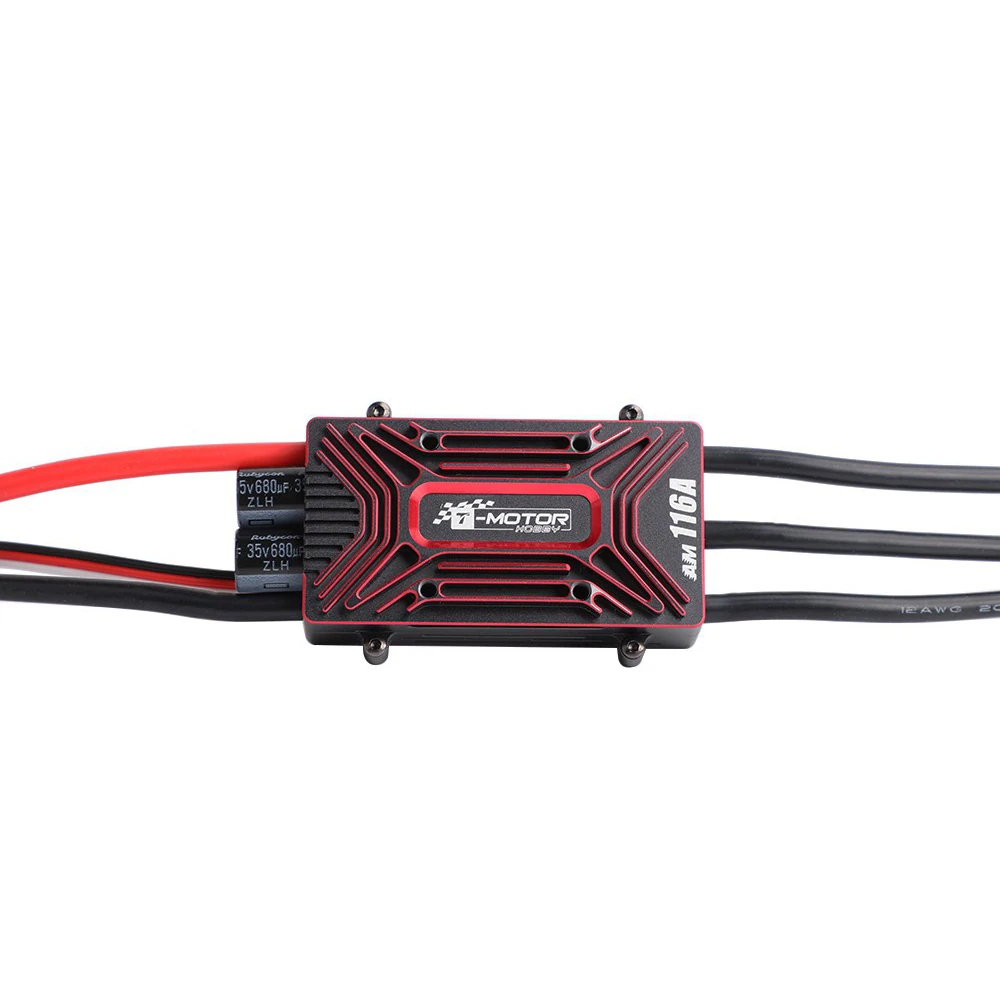

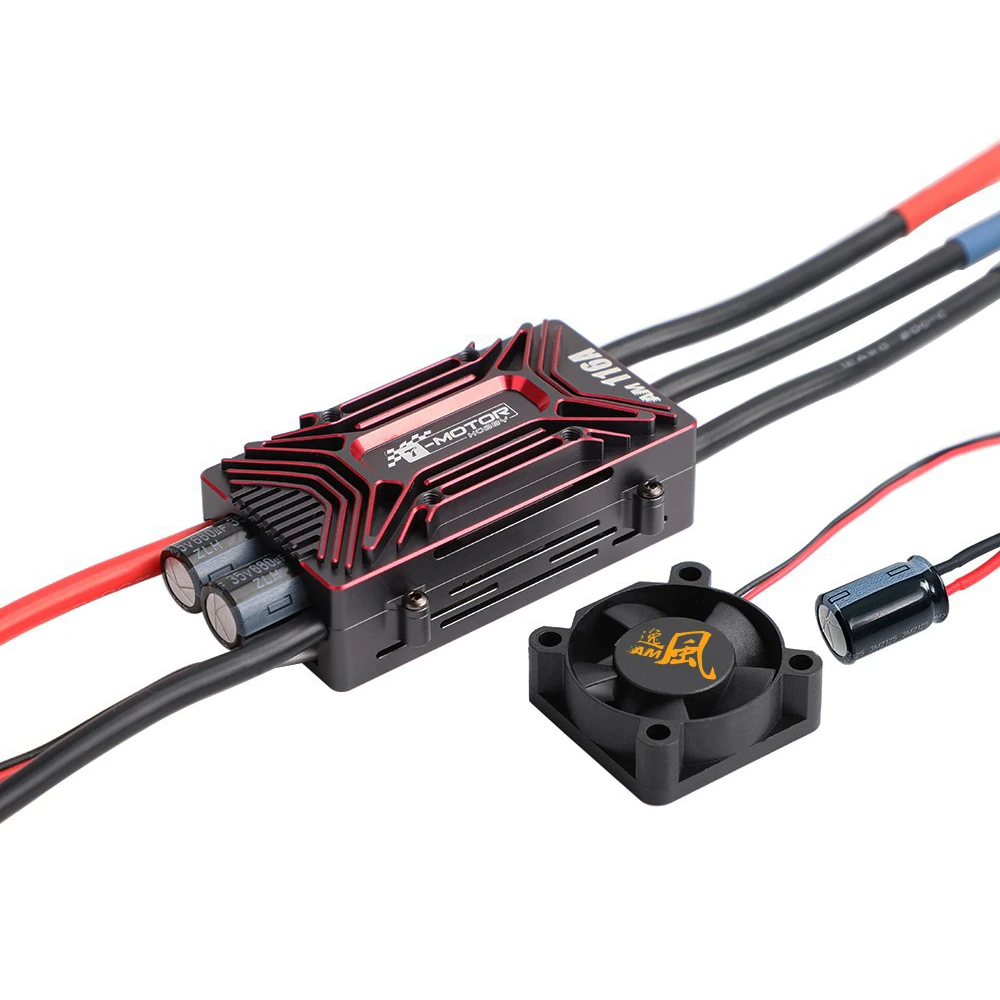

TMOTOR AM116A 116A ESC With 5.8V/7.4V/8.2V 15A UBEC Support Program for 60-67 Inch 3D Aerobatics RC Airplane

Specifications:

Brand Name: TMOTOR

Item Name: AM116A

ESC Dimensions: 75.1*42.2*21.8mm

ESC Weight: 113g

Power W-12AWG

Power Plug:Without plug

Output W-12AWG

Output Plug: 4.0 gold plugs (female)

Signal W (black, red and white)

Signal-return W (brown, red and orange)

Battery: 3-8S Lipo

Rated Current: 116A

Peak Current: 136A

UBEC Output Voltage: 5.8V-7.4-8.2V

UBEC Output Current: 15A

Data Transmission Card: AM LINK

ESC Programming Card: AM LINK

ESC Programming Software: Windows, Android

Note: All the wire length above is the original length not the length you see from the outside.

Features:

1. AM116 zero-delay precision tracking

2. Preset alarm and flight data feedback to always pay attention to the flight status

3. Hidden strap design, with active heat dissipation

4. High-efficiency high-power UBEC, the output voltage can be switched between 5.8V / 7.4V / 8.2V through software, continuous output current 15A, instant support 25A

Package Included:

1 x TMOTOR AM116A ESC

1 x Accessory Pack
