XXD 2212 KV2200 Brushless Motor With 30A ESC 6035 Propeller Power Combo For F22 SU27 SU35 F15 RC Airplane

Description:

Item Name: XXD 2212 KV2200 Brushless Motor + 30A ESC + 6035 Propeller

Application: Suitable for back pusher fighters with a wingspan of about 0.8m and 500g.

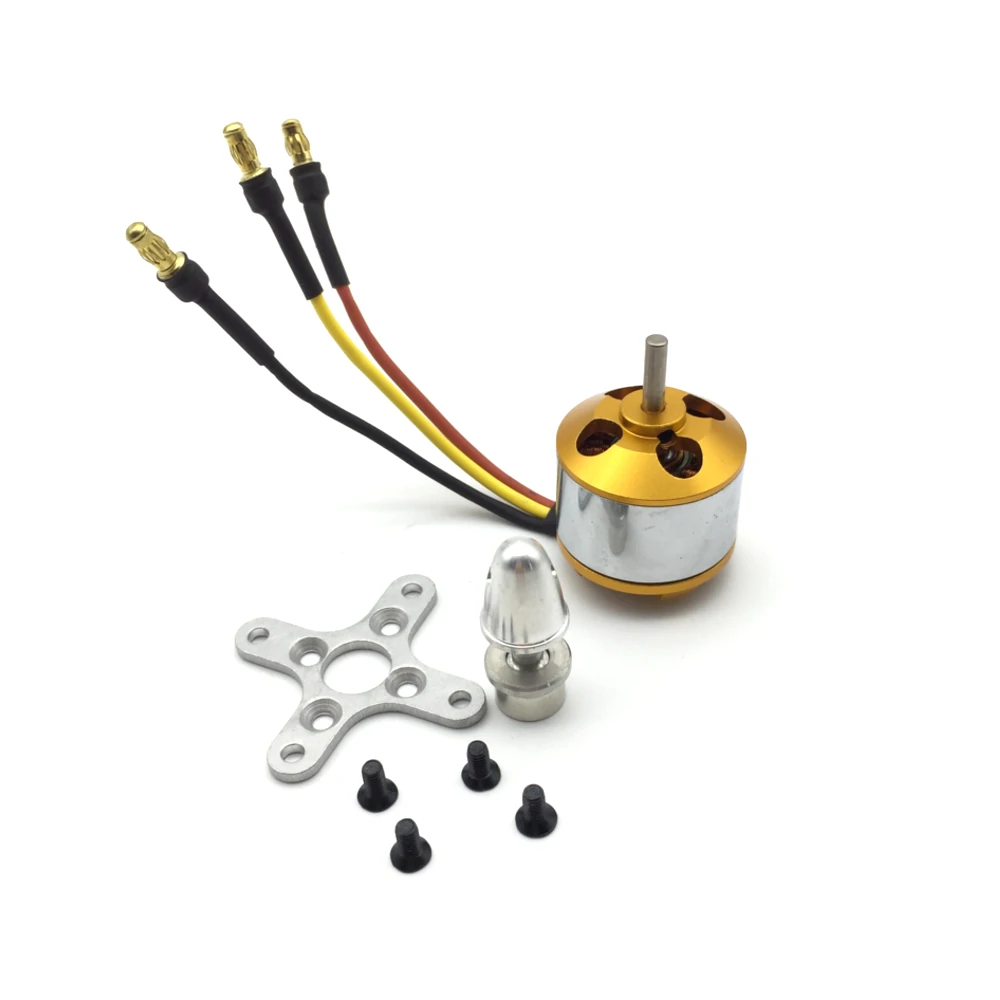

Motor Specifications:

Brand Name: XXD

Item Name: 2212 KV2200

Outer Diameter of Motor H

Motor Stator: Outer diameter 22mm, Height 12mm

Motor Shaft D

Mounting Hole Spacing At The Bottom of Motor: 16 * 19mm

Welded Banana H male

Motor Screws: Four M3 * 6 cross screws

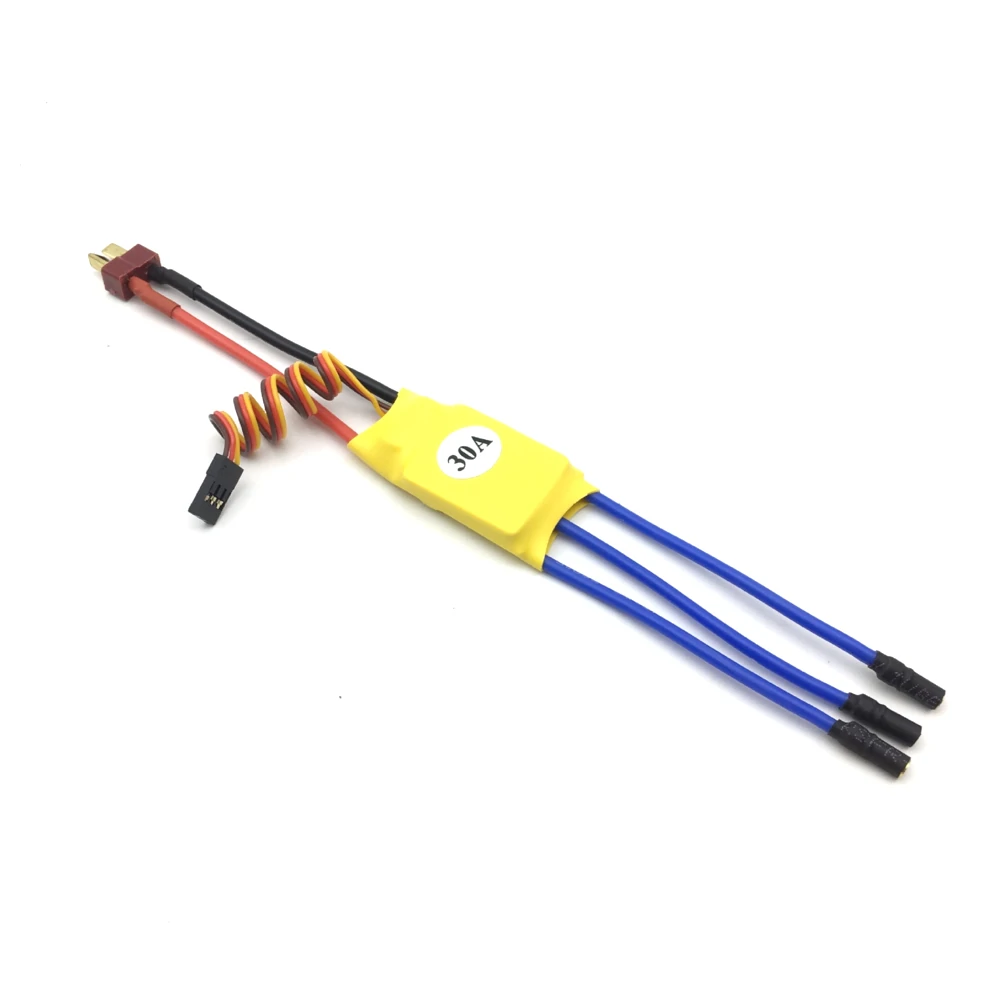

ESC Specifications:

Brand Name: XXD

Operating Voltage: 2-3S Lipo, 4-12 NIMH

Continuous Working Current: 30A

Instantaneous Current: 40A

BEC Type: Linear

BEC Output: 5V 3A

Dimension (mm): L50 * W23 * H8

Weight: 25g

Welding P banana head female + T plug male

Propeller Specifications:

Item Name: 6035 Propeller

L

A

Root T

Diameter of the Gasket(mm): ø 3/ø 3.2/ø 3.5/ø 4/ø 4.8/ø 5/ø 6/ø 6.3

Package Included:

1x XXD 2212 KV2200 Brushless Motor

1x 30A ESC

2x 6035 Propeller
