XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing
XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing - Image 2
XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing - Image 3
XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing - Image 4
XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing - Image 5
XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing - Image 6
XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing - Image 7

XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing

Availability:

1 in stock
Compare
  • SKU : 2036178
  • Condition : New
  • Brand : XXD
  • Processing Time : Ships Within 24-48 Hours
  • Return Policy : 30-day refund or replacement

$22.99 $32.99

Specification:

Brand: XXD

Model: A2217 2217

KV: 950KV, 1100KV, 1250KV, 1500KV, 2300KV, 2700KV (optional)


<td width='192' valign='top' style='width:144.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt solid windowtext;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

KV

<td width='301' valign='top' style='width:226.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt solid windowtext;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Parameters

<td width='192' valign='top' style='width:144.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

950KV

<td width='301' valign='top' style='width:226.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

Product Name: A2217KV950 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 950KV

Test Data:

11V 16.9A 7130 RPM, Thrust 955g

10.5V 15.8A 6980 RPM, Thrust 897g

10V 14.9A 6760 RPM, Thrust 853g

9.5V 13.9A 6580 RPM, Thrust 792g

<td width='192' valign='top' style='width:144.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

1100KV

<td width='301' valign='top' style='width:226.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

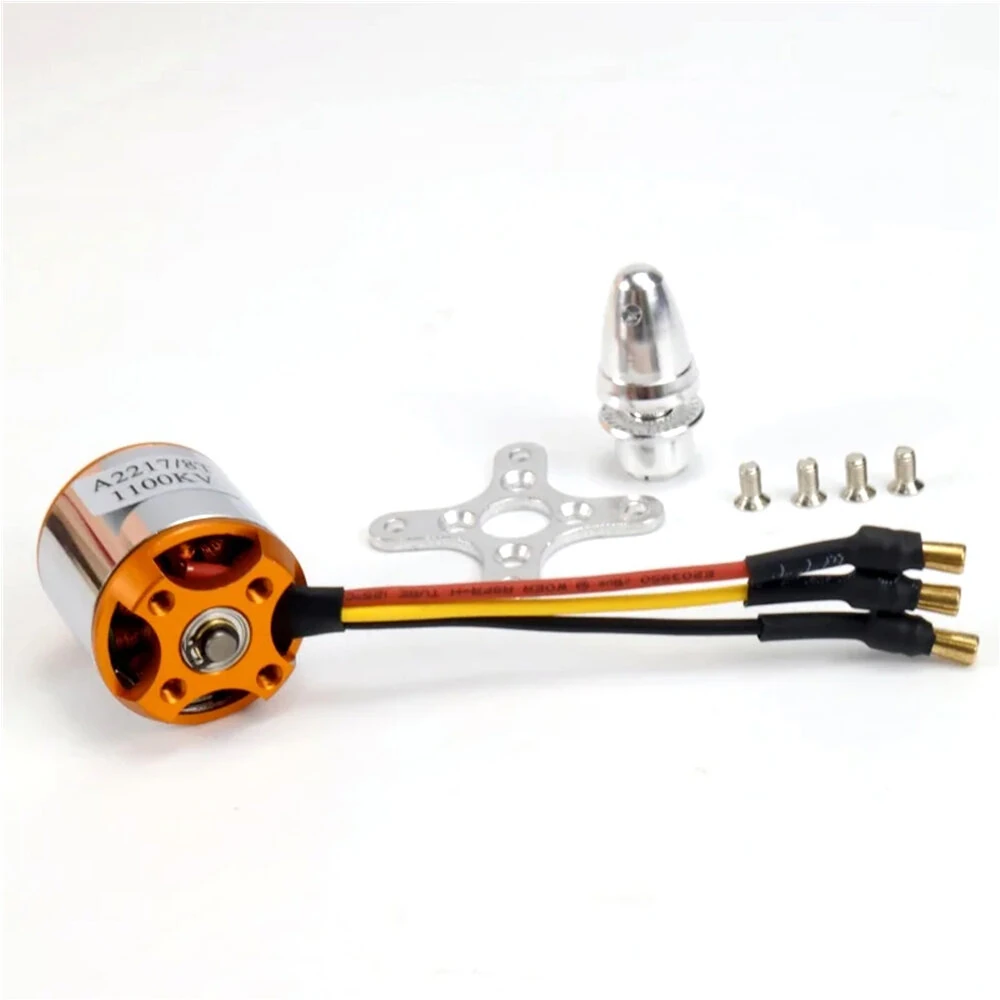

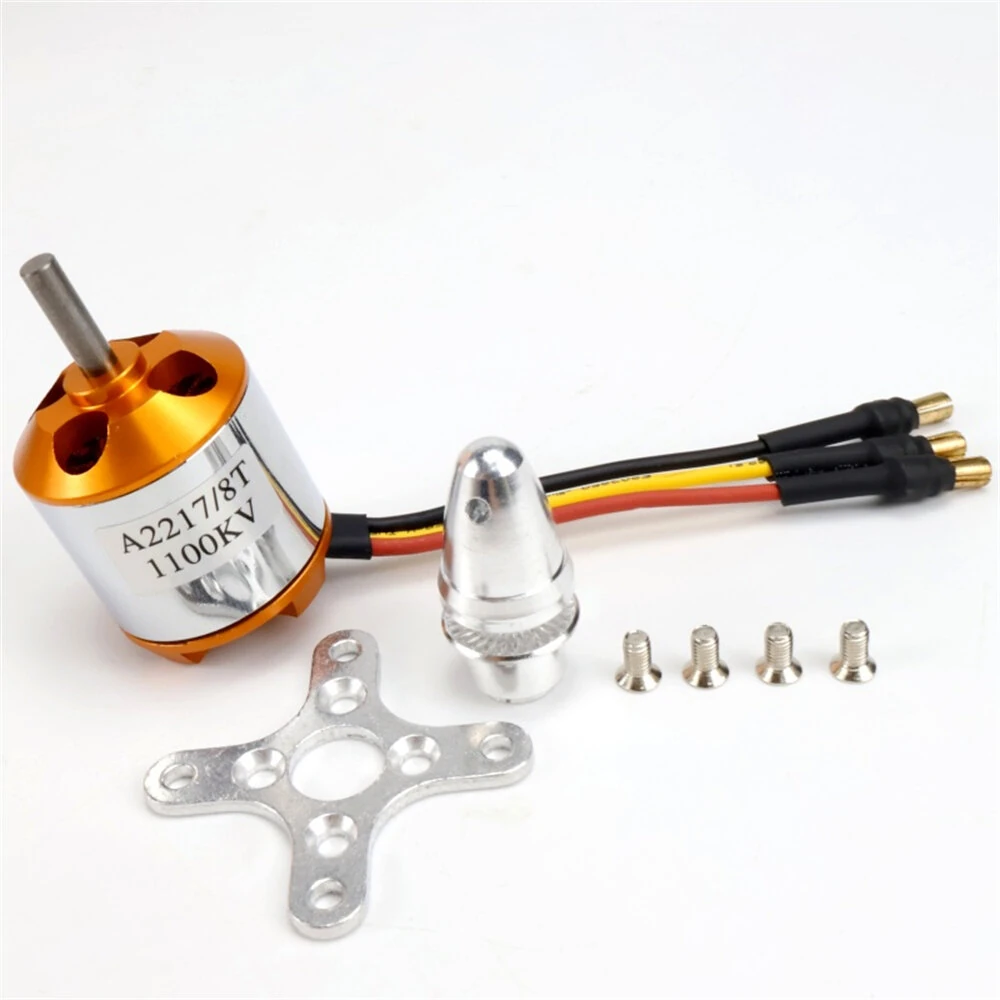

Product Name: A2217KV1100 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 1100KV

Test Data:

11V 19.5A 8450 RPM, Thrust 1012g

10.5V 17.4A 8220 RPM, Thrust 953g

10V 17.2A 8030 RPM, Thrust 903g

9.5V 15.9A 7730 RPM, Thrust 830g

<td width='192' valign='top' style='width:144.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

1250KV

<td width='301' valign='top' style='width:226.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

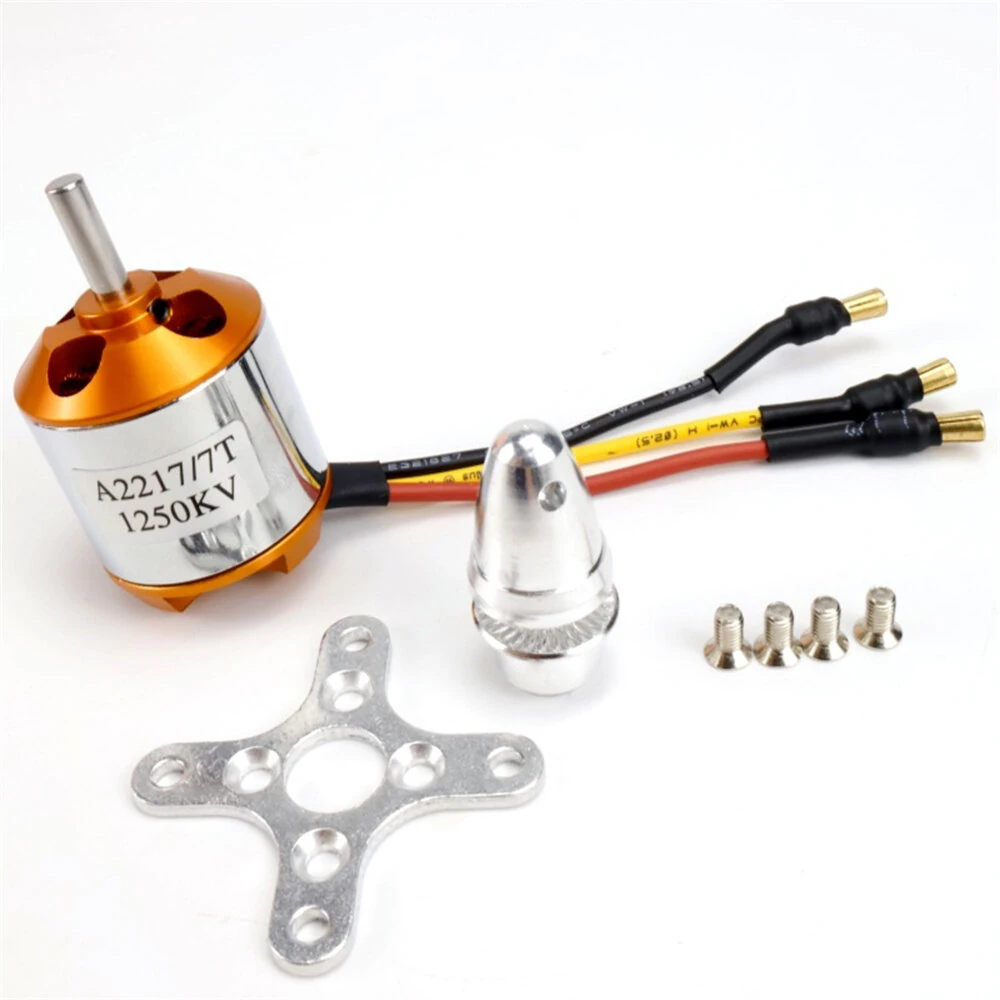

Product Name: A2217KV1250 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 1250KV

Test Data:

11V 20.4A 10280 RPM, Thrust 1075g

10.5V 18.9A 9990 RPM, Thrust 995g

10V 17.8A 9620 RPM, Thrust 933g

9.5V 16.1A 9320 RPM, Thrust 855g

<td width='192' valign='top' style='width:144.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

1500KV

<td width='301' valign='top' style='width:226.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

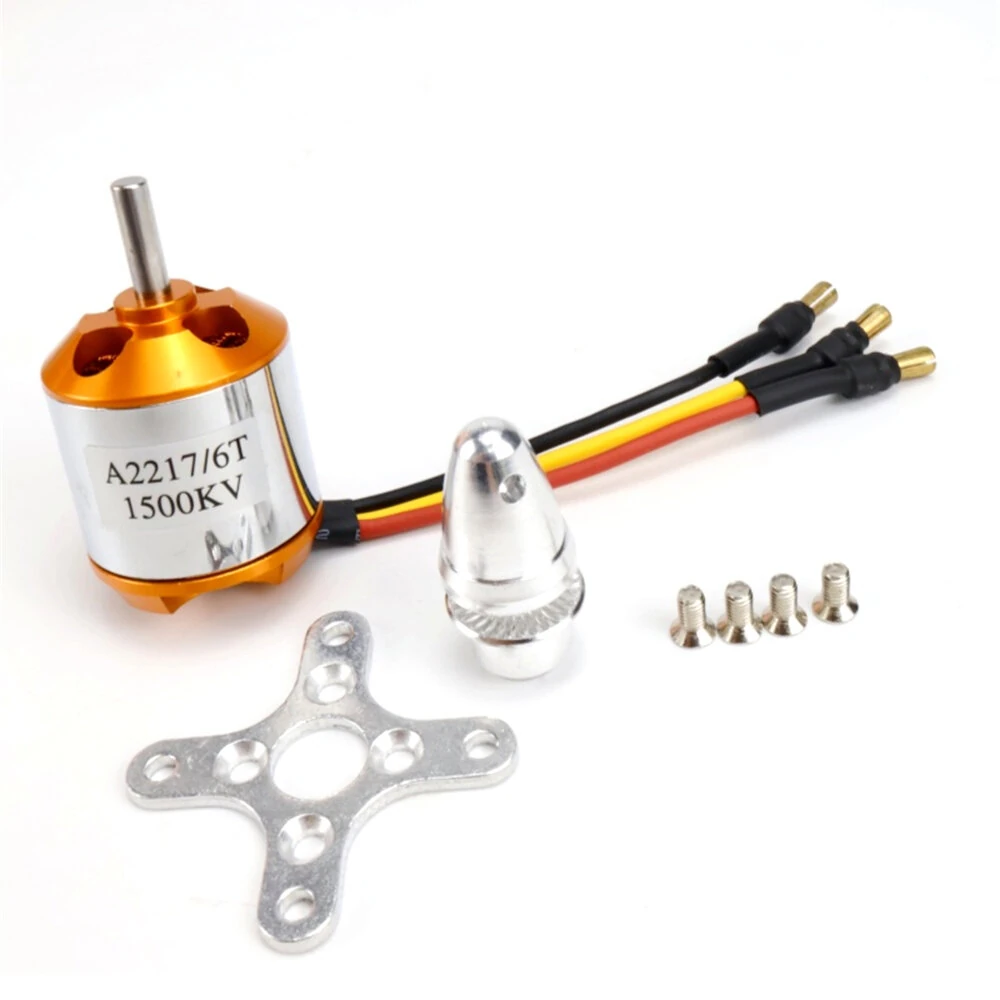

Product Name: A2217KV1500 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 1500KV

Test Data:

GWS8040HD:

11V 19.5A 13210 RPM, Thrust 963g

10.5V 17.9A 12730 RPM, Thrust 894g

10V 16.6A 12280 RPM, Thrust 816g

9.5V 15.2A 11820 RPM, Thrust 748g

GWS9050HD:

8V 18.6A 9030 RPM, Thrust 816g

7.5V 16.9A 8560 RPM, Thrust 739g

7V 15.1A 8080 RPM, Thrust 653g

6.5V 13.6A 7680 RPM, Thrust 578g

<td width='192' valign='top' style='width:144.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

2300KV

<td width='301' valign='top' style='width:226.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:none;mso-border-top-alt:0.5000pt solid windowtext;border-bottom:1.0000pt solid windowtext;
mso-border-bottom-alt:0.5000pt solid windowtext;’>

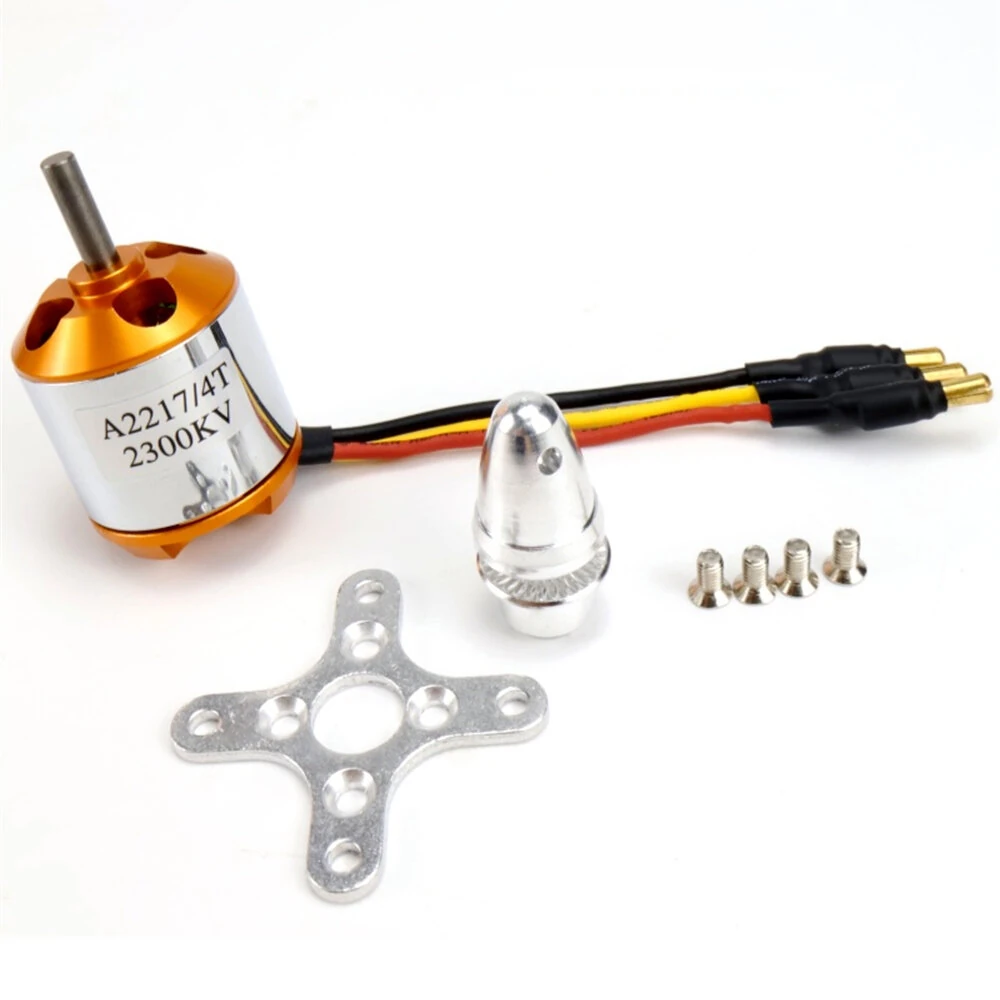

Product Name: A2217KV2300 Brushless Motor

Product Weight: 68g

Dimensions: 27.8*32mm

Output Shaft Diameter: 4.0mm

KV Value: 2300KV

Maximum Efficiency: 78%

No-Load Current: 10V: 1.7A

Peak Current: 30A/60S

Optimal Efficiency Current: 8-28A (>70%)<span style='font-family:Calibri;mso-fareast-font-family:宋体;mso-bidi-font-family:'Times New Roman';
font-size:11.0000pt;mso-font-kerning:1.0000pt;’>

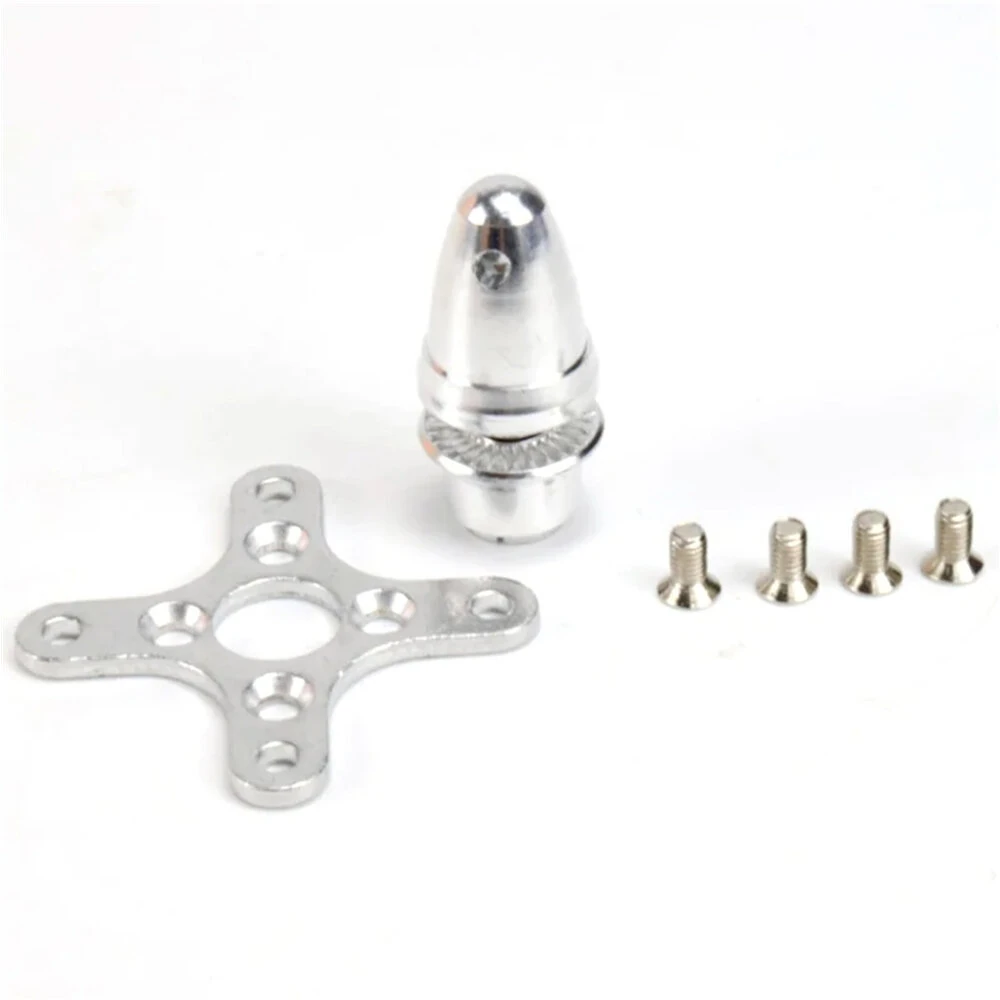

Package Included:

1 x A2217 Brushless Motor

1 x 4mm Collet

1 x 22 Series Metal Mount

4 x Screws
