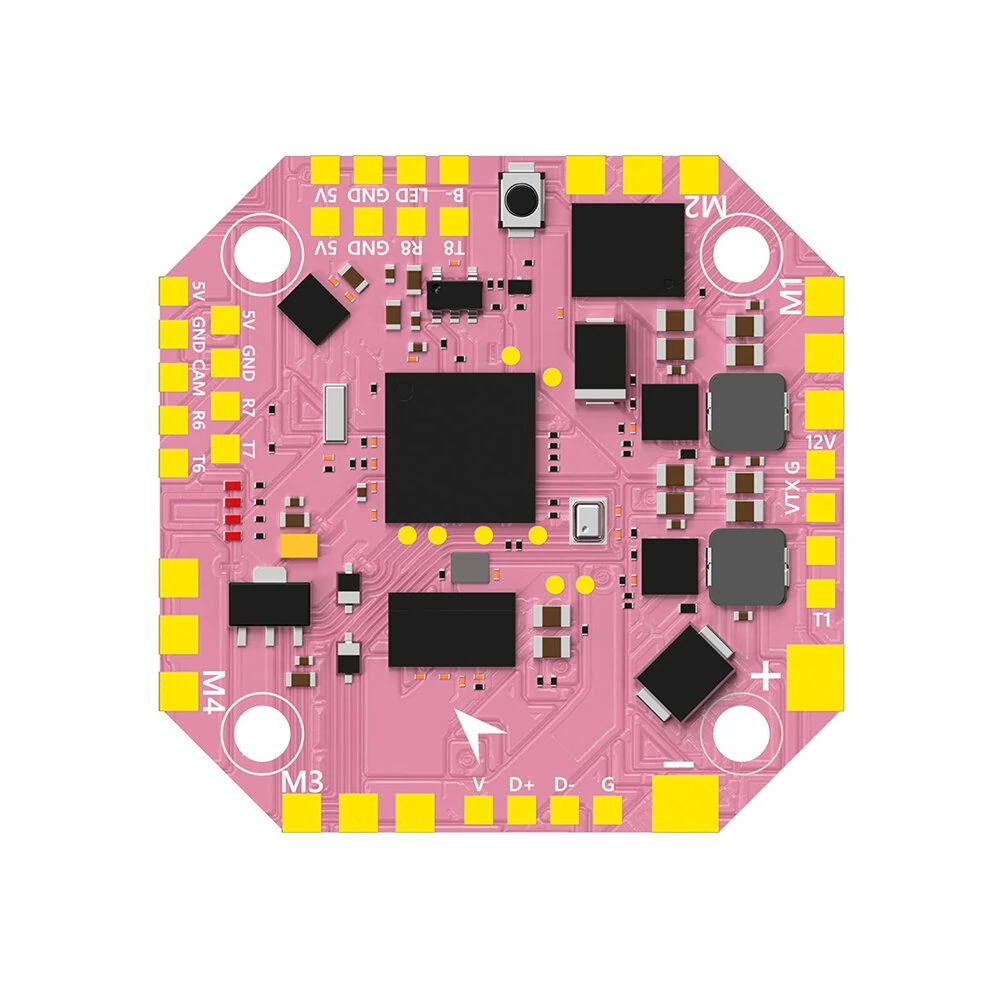

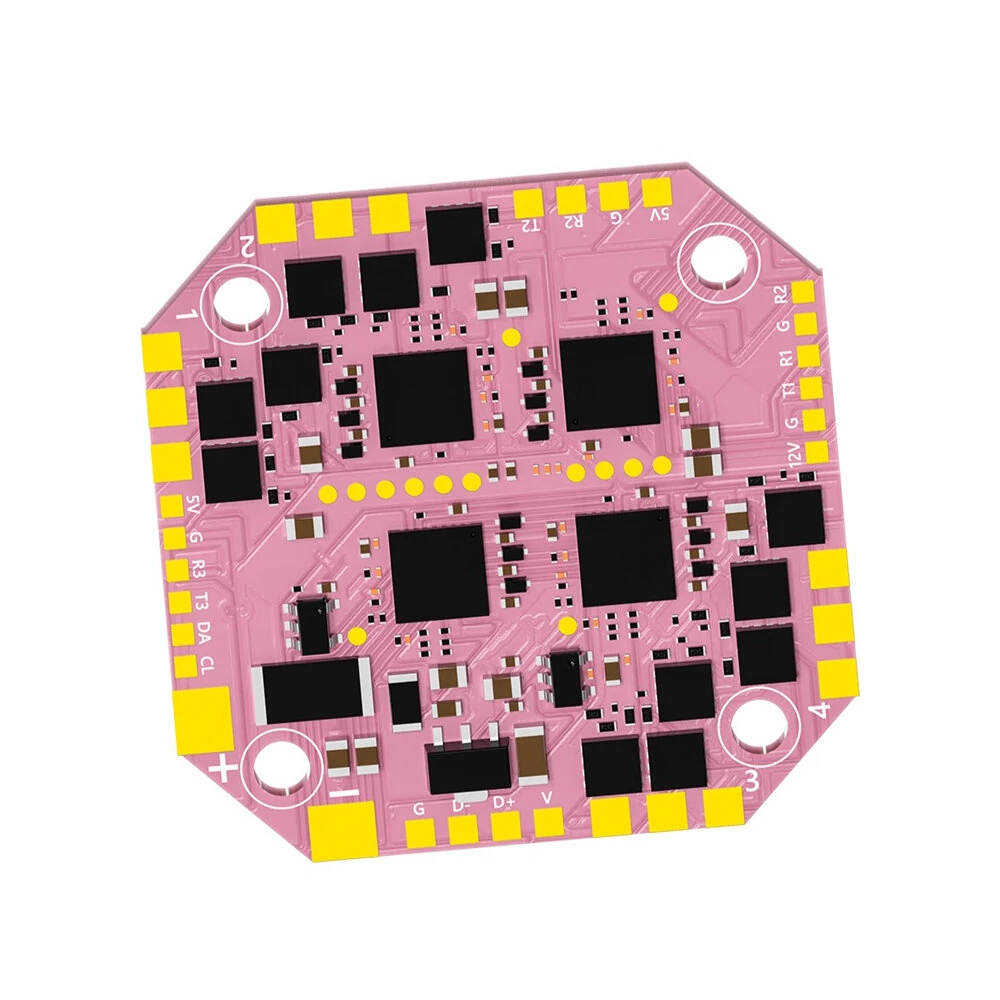

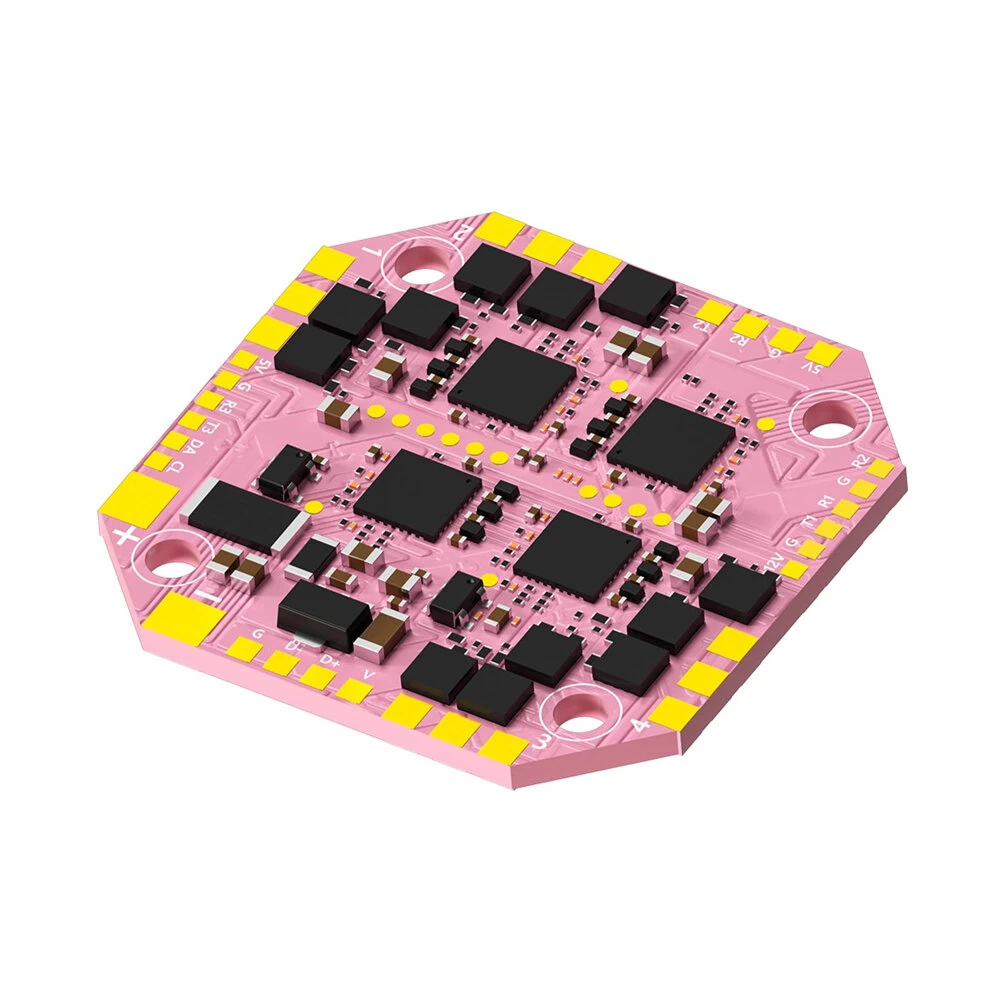

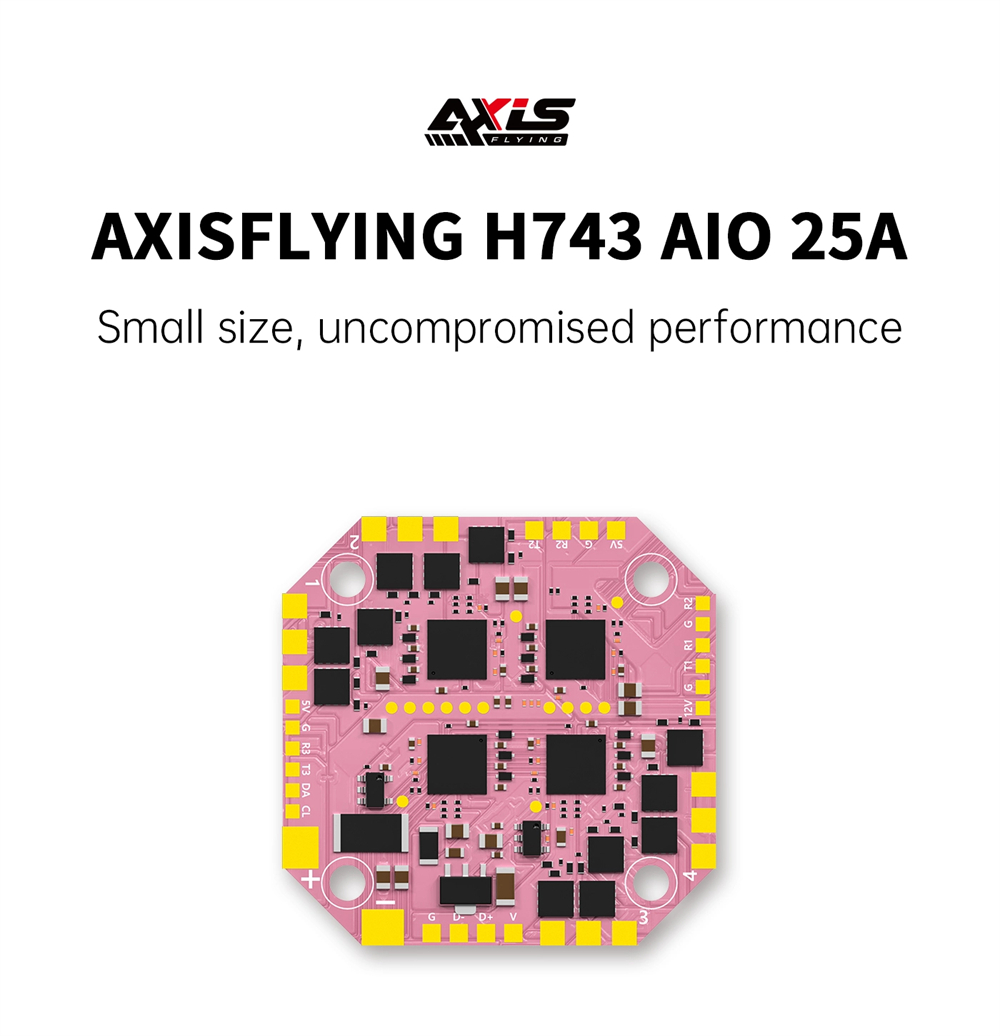

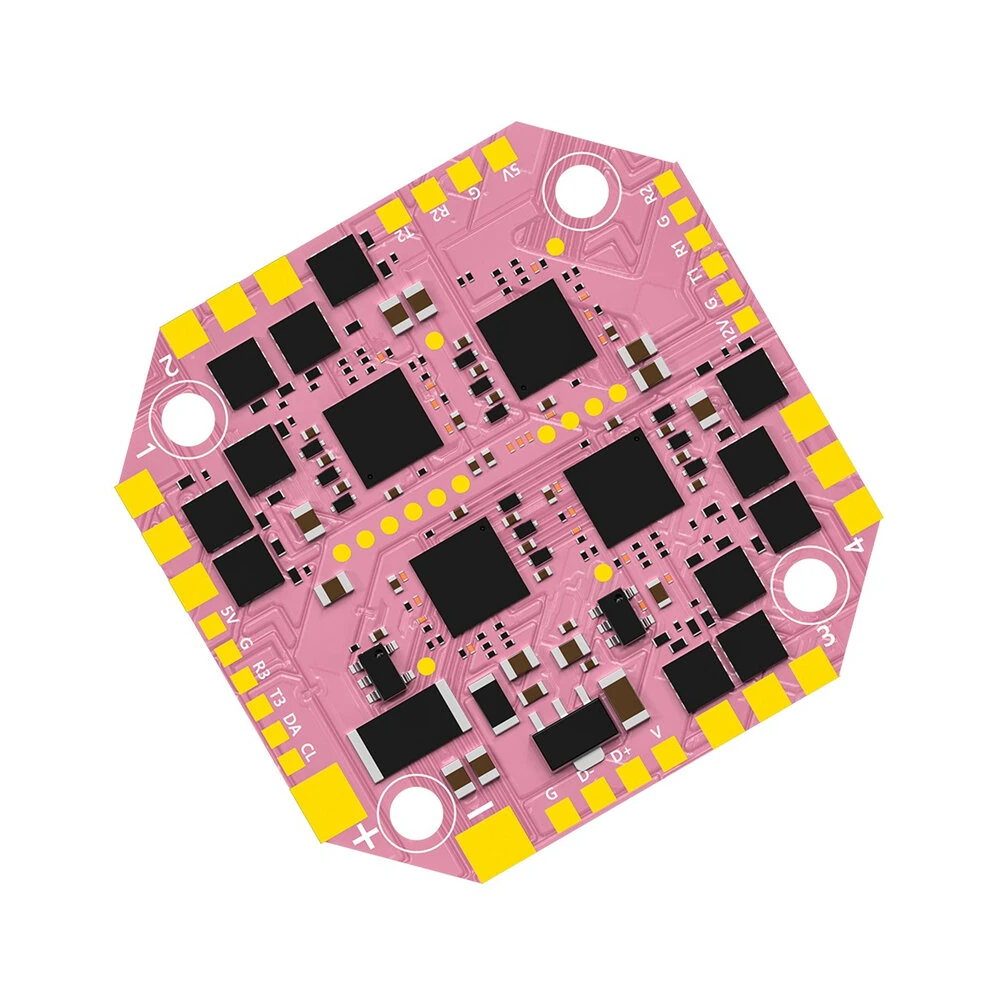

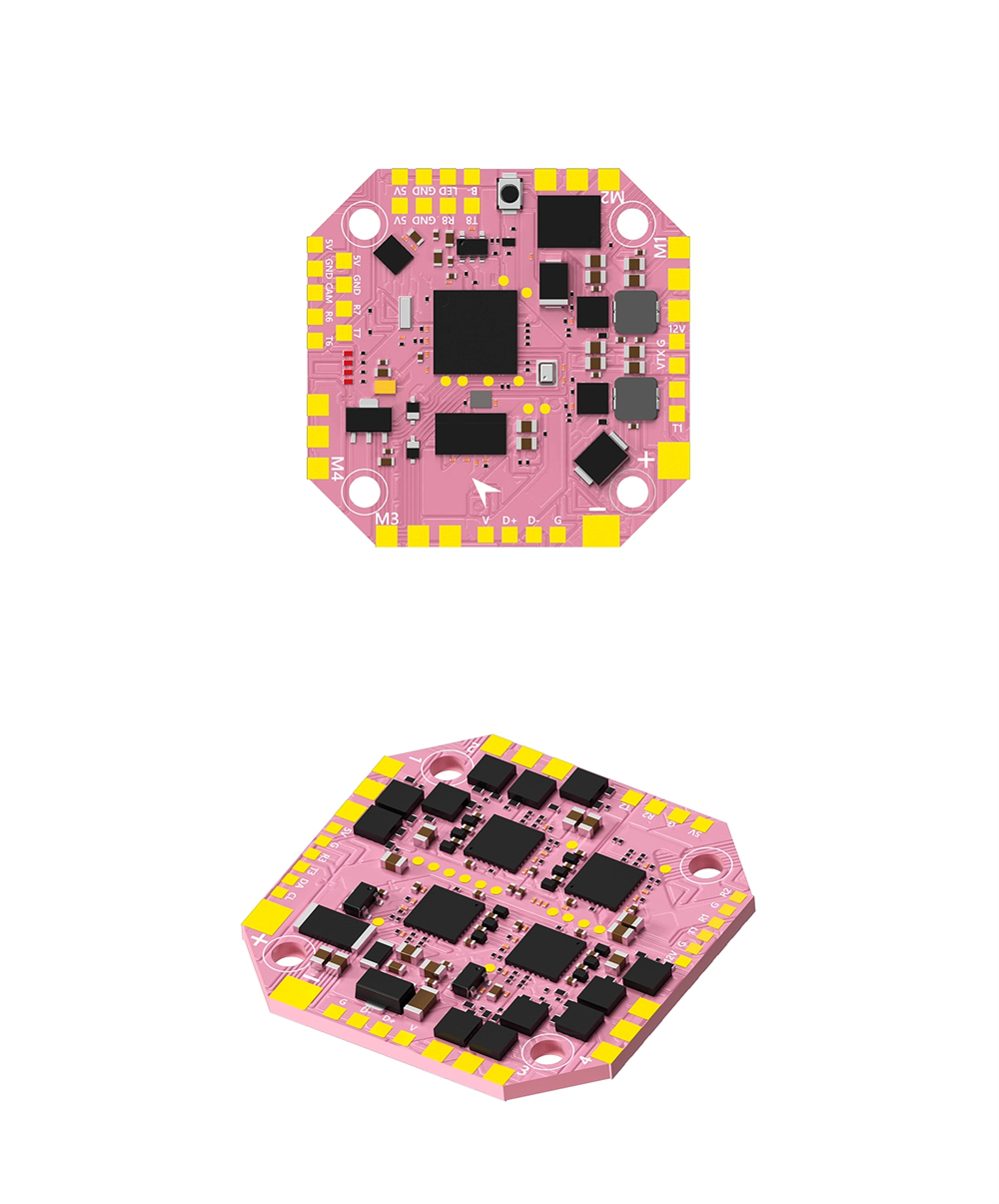

25.5×25.5mm Axisflying H743 25A AIO H7 Flight Controller ICM-42688 with 3-4S ESC for RC FPV Racing Drones

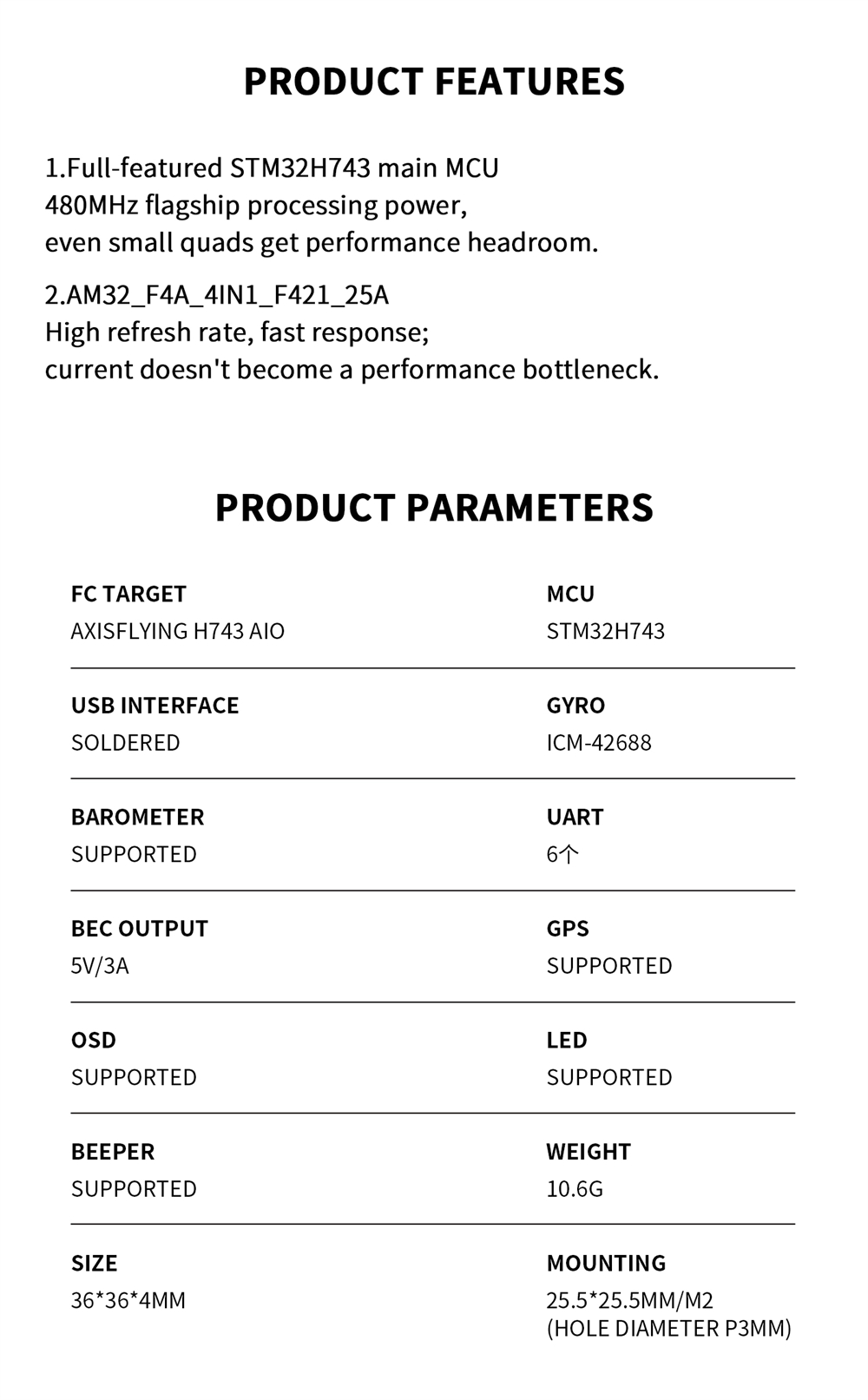

Specification:
Brand: Axisflying
Model: H743 25A H743 Flight Controller AIO
FC Target: Axisflying H743 AIO
MCU: STM32H743
USB Interface: Soldered
Gyro: ICM-42688
Barometer: Supported
UART: 6
BEC Output: 5V/3A
GPS: Supported
OSD: Supported
LED: Supported
Beeper: Supported

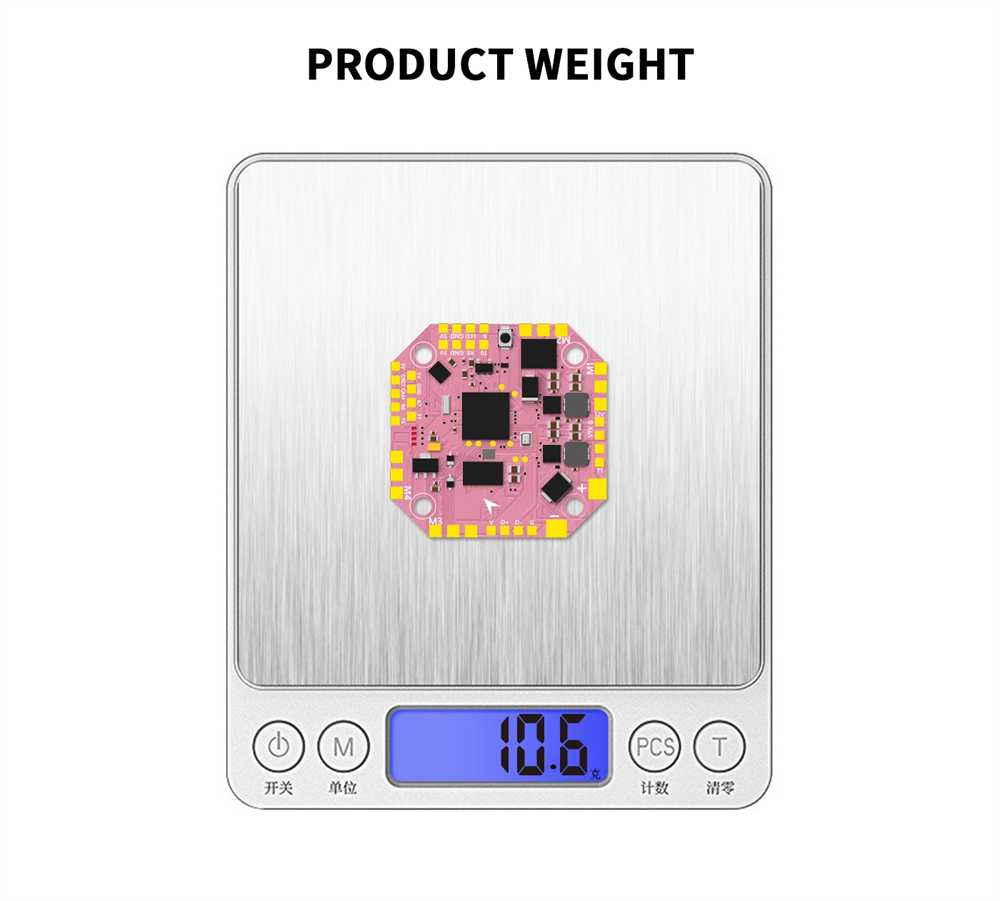

Weight: 10.6g

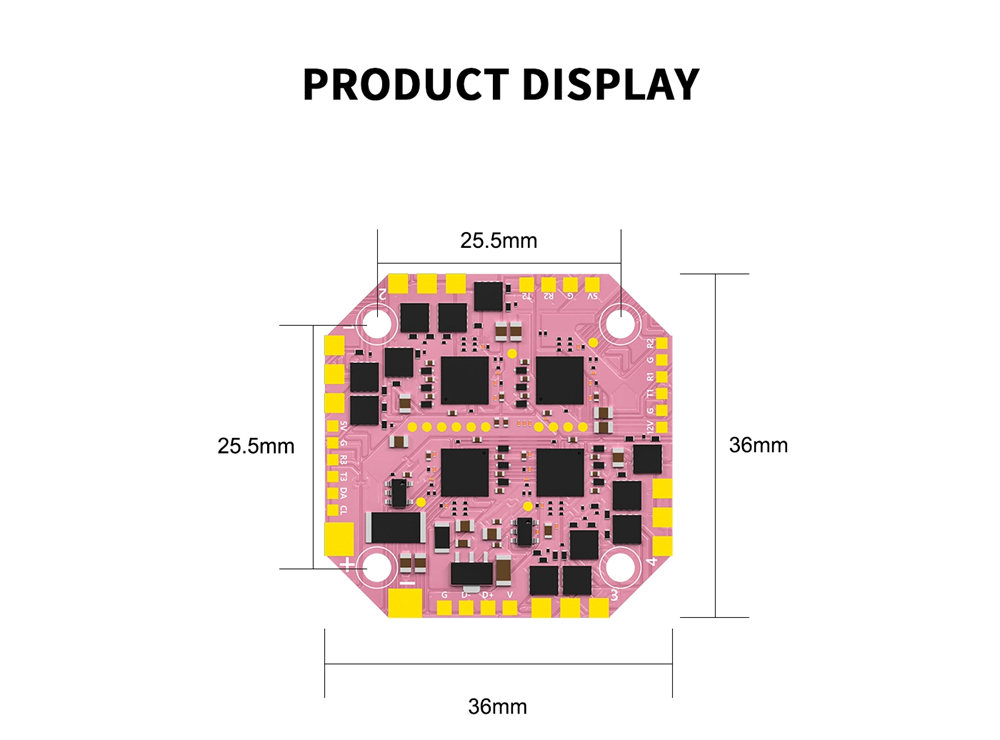

Size: 36x36x4mm
Mounting: 25.5*25.5mm/M2 (Hole Diameter P3MM)

Feature:
1. Full-Featured STM32H743 Main MCU
480MHz Flagship Processing Power,
Even Small Quads Get Performance Headroom.

2. AM32_F4A_4IN1_F421_25A
High Refresh Rate, Fast Respons;
Current Doesn’t Become A Performance Bottleneck.

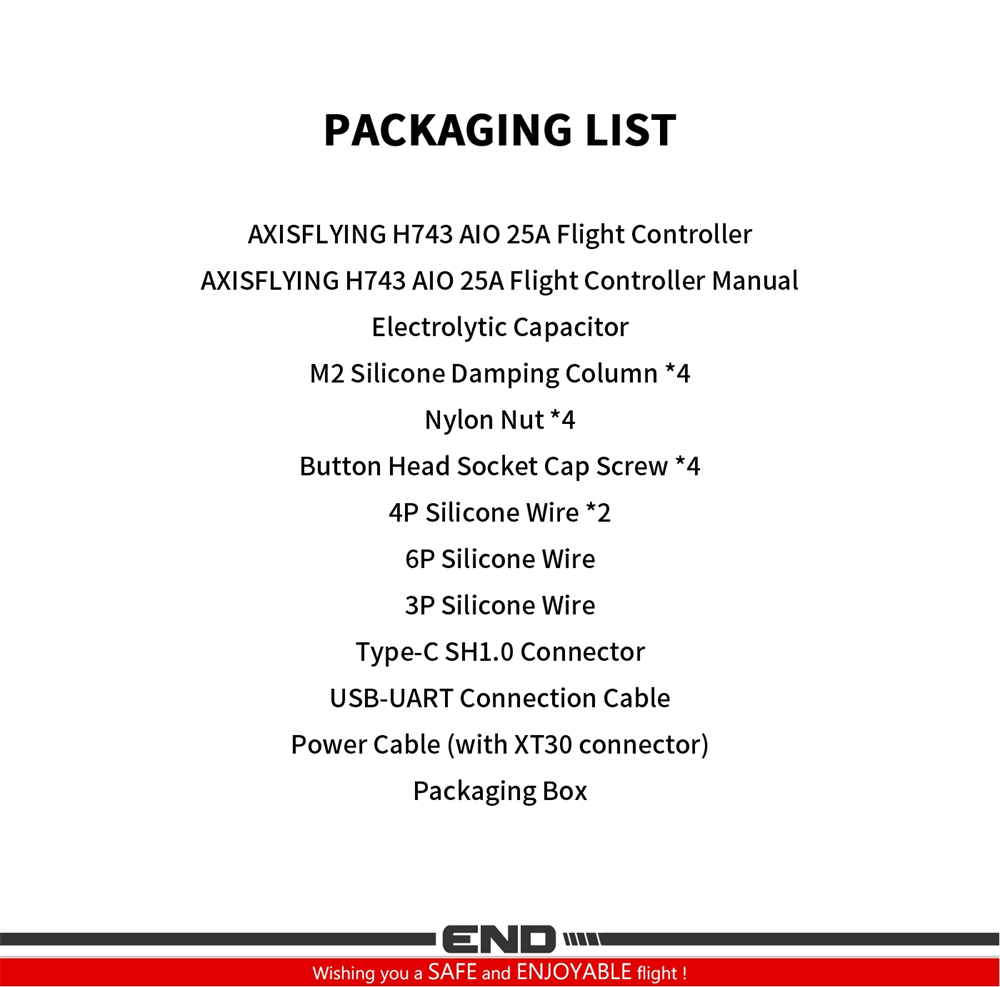

Package Included:
1 x Axisflying H743 AIO 25A Flight Controller
1 x Axisflying H743 AIO 25A Flight Controller Manual
1 x Electrolytic Capacitor
4 x M2 Silicone Damping Column
4 x Nylon Nut
4 x Button Head Socket Cap Screw
2 x 4P Silicone Wire
1 x 6P Silicone Wire
1 x 3P Silicone Wire
1 x Type-C SH1.0 Connector
1 x USB-UART Connection Cable
1 x Power Cable (with XT30 connector)
1 x Packaging Box
