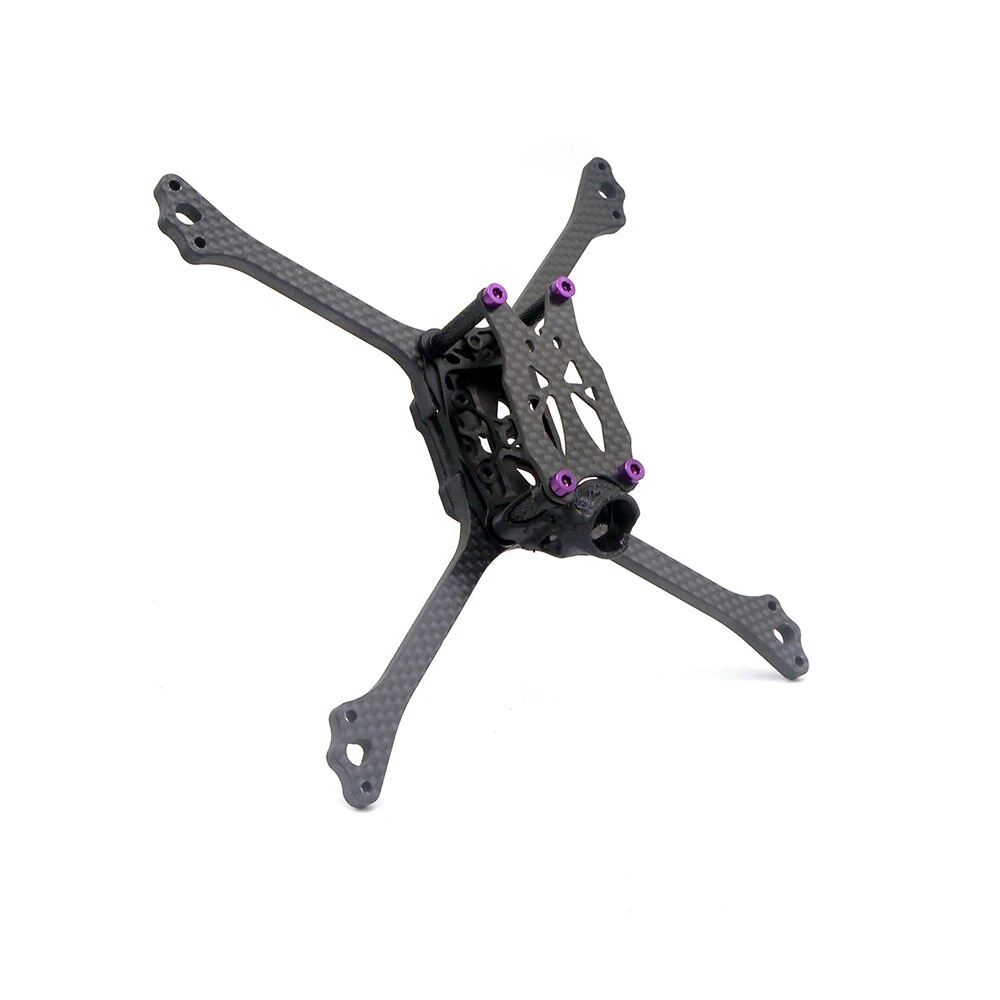

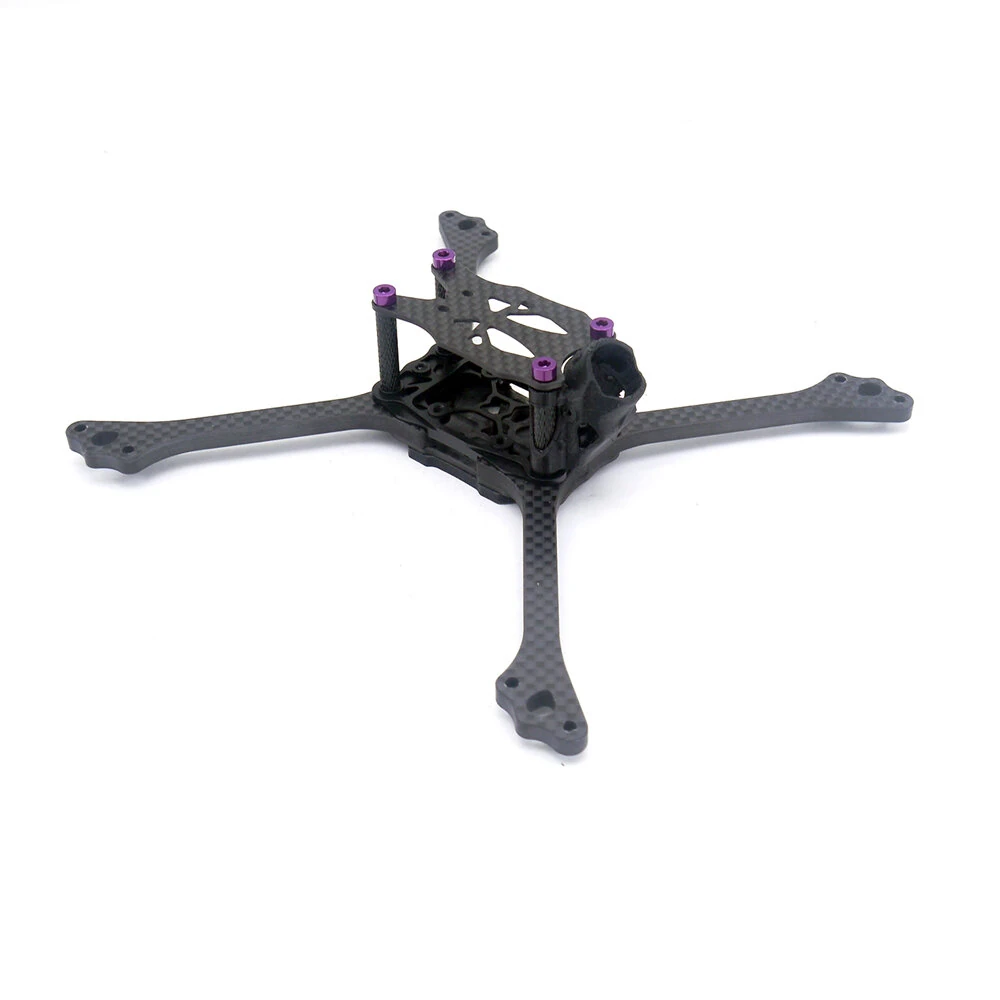

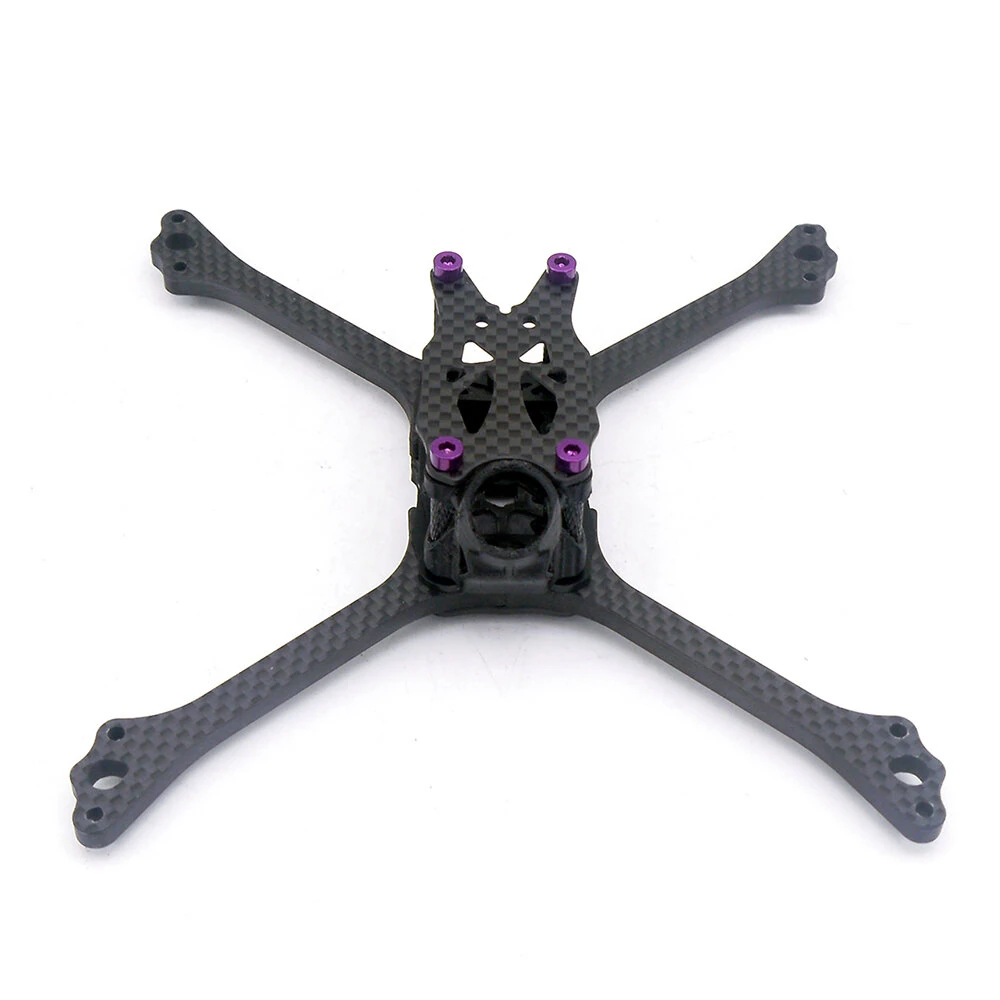

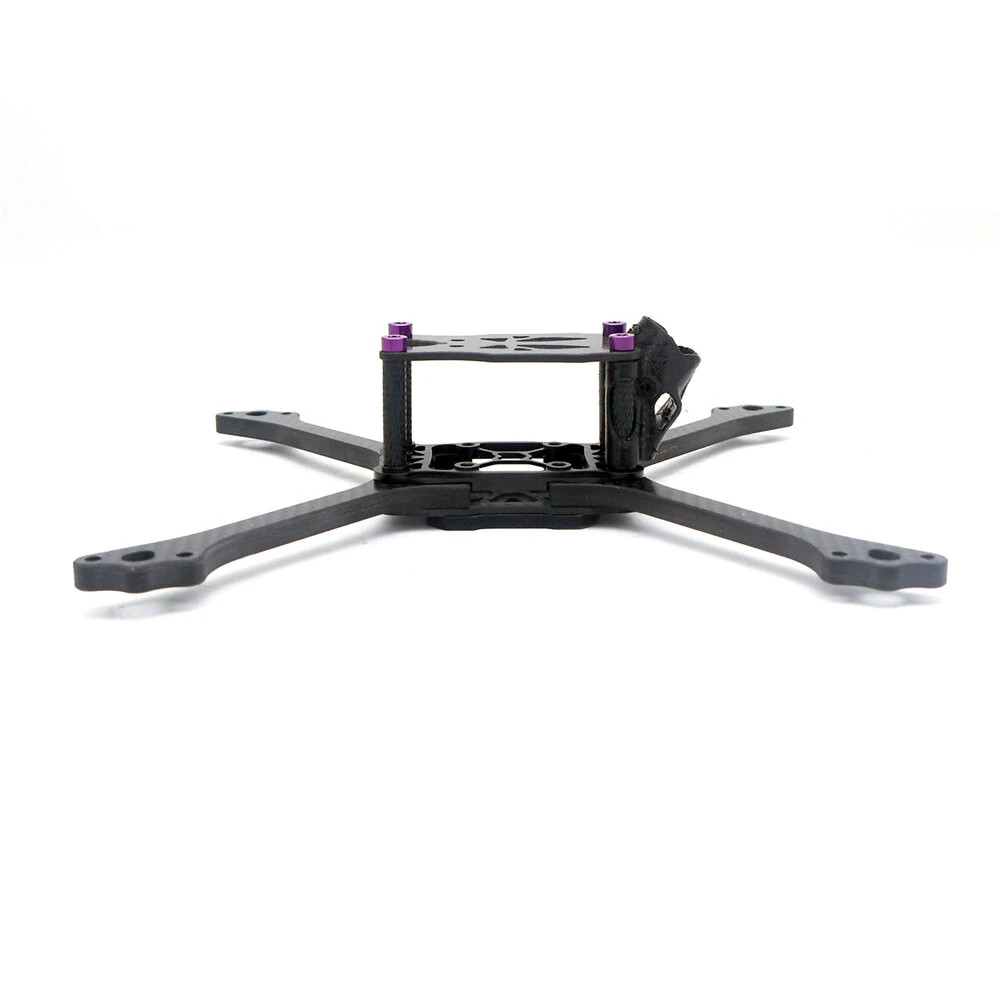

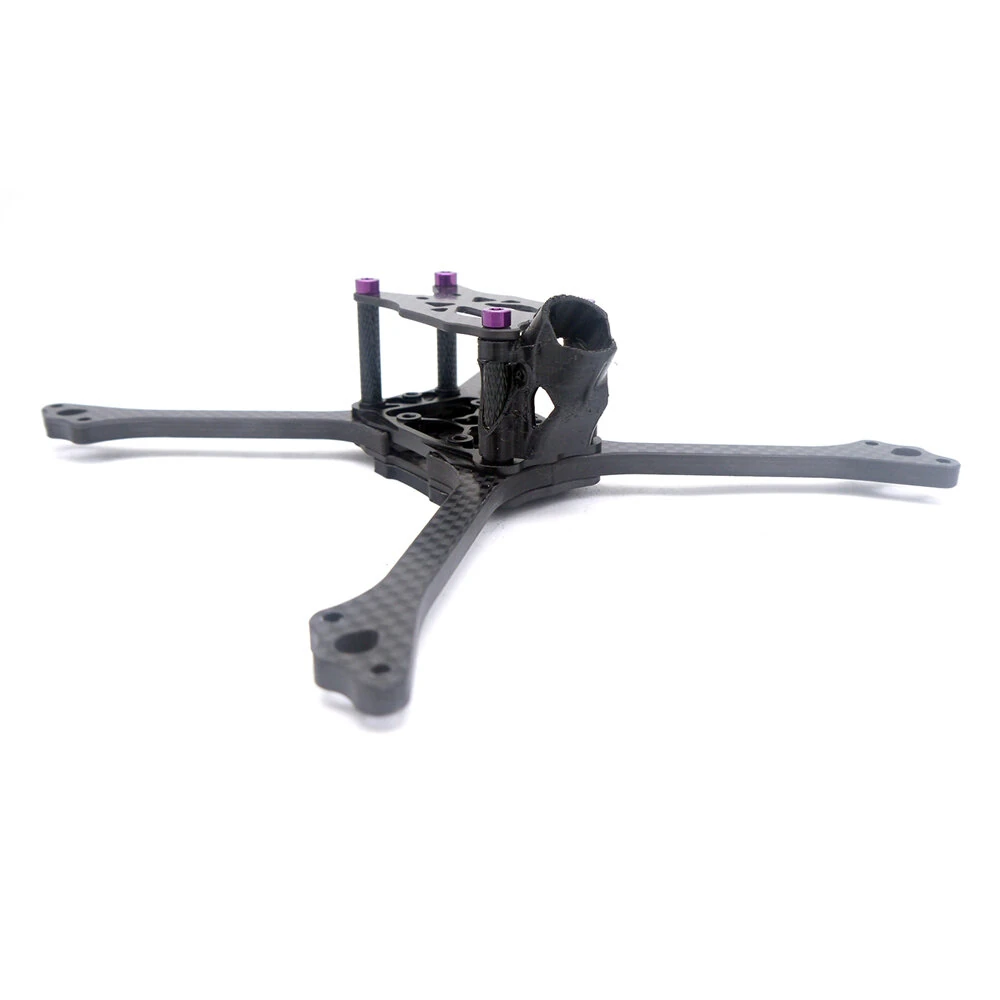

533Air 188mm X Type 5 Inch Frame Kit Compatible with HDzero Nano90+RC18D Camera for RC FPV Racing Drones

Specification:
Model: 533Air
Item Name: Frame Kit
W

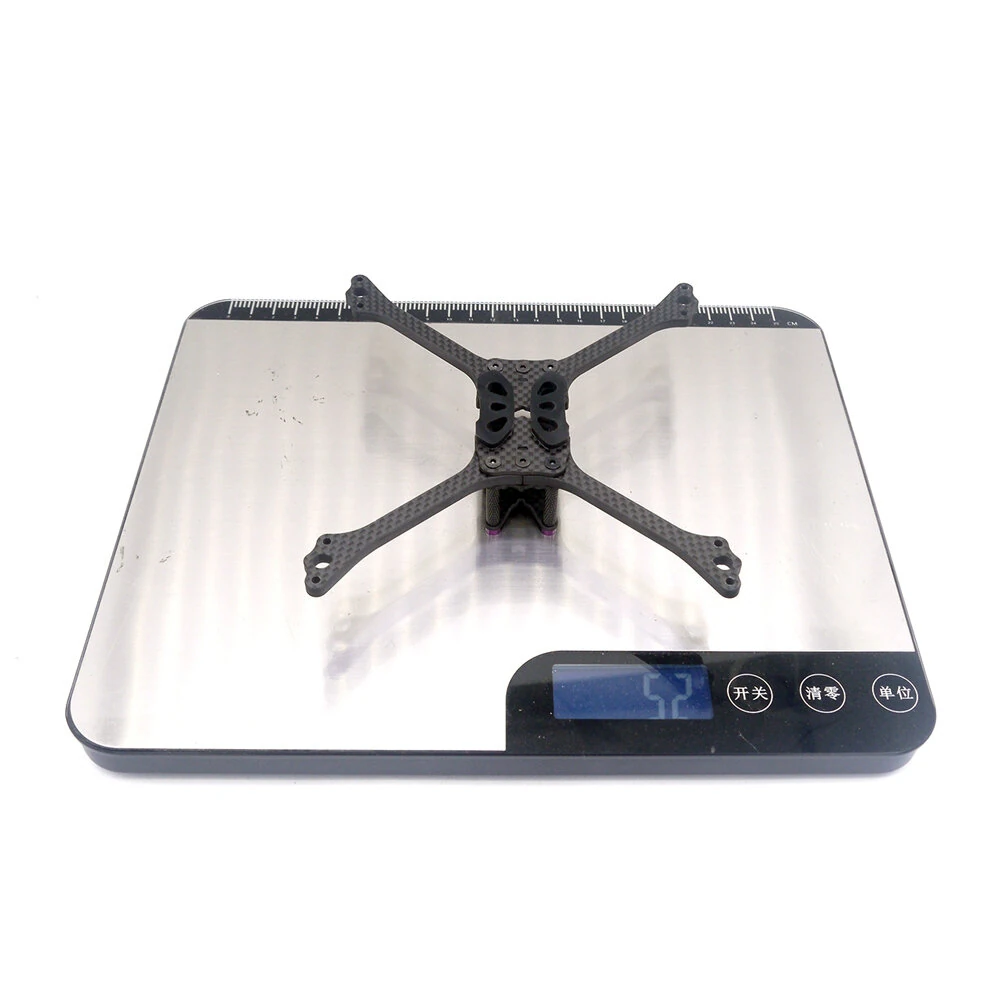

Weight: Approx. 47g (net weight of the frame, excluding printed parts and battery anti-slip mat); Approx. 52g (including printed parts and battery anti-slip mat)
Thickness: Arms 5.0mm, Others 2.0mm
Propellers: 5.0-inch Propellers
Flight Controller Hole Spacing: 20*20mm (M3)
Camera Mounting W (Compatible with HDzero Nano90+RC18D, Approx. 53°)
Motor Mounting Hole: 16*16mm (M3)
Structure: X-shaped Split Type
Aluminum Column Height: M3*23mm
Distance Between Front and Rear Aluminum Columns: Approx. 43mm
Printed Parts List: One Camera NR Cover (Compatible with HDzero Nano90+RC18D, Approx. 53°)
Printed Parts Color: Black
Other: Arms have countersunk grooves and chamfers, fuselage has chamfers.

Recommend Parts ( NOT Included):FC & ESC: 20mm*20mm iFlight BLITZ Mini ATF435 StackBrushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: HQProp Freestyle Prop 5X4.3X3V2S 5043 5 Inch 3-Balde PropellerPackage Included:
1 x 533Air Frame Kit
