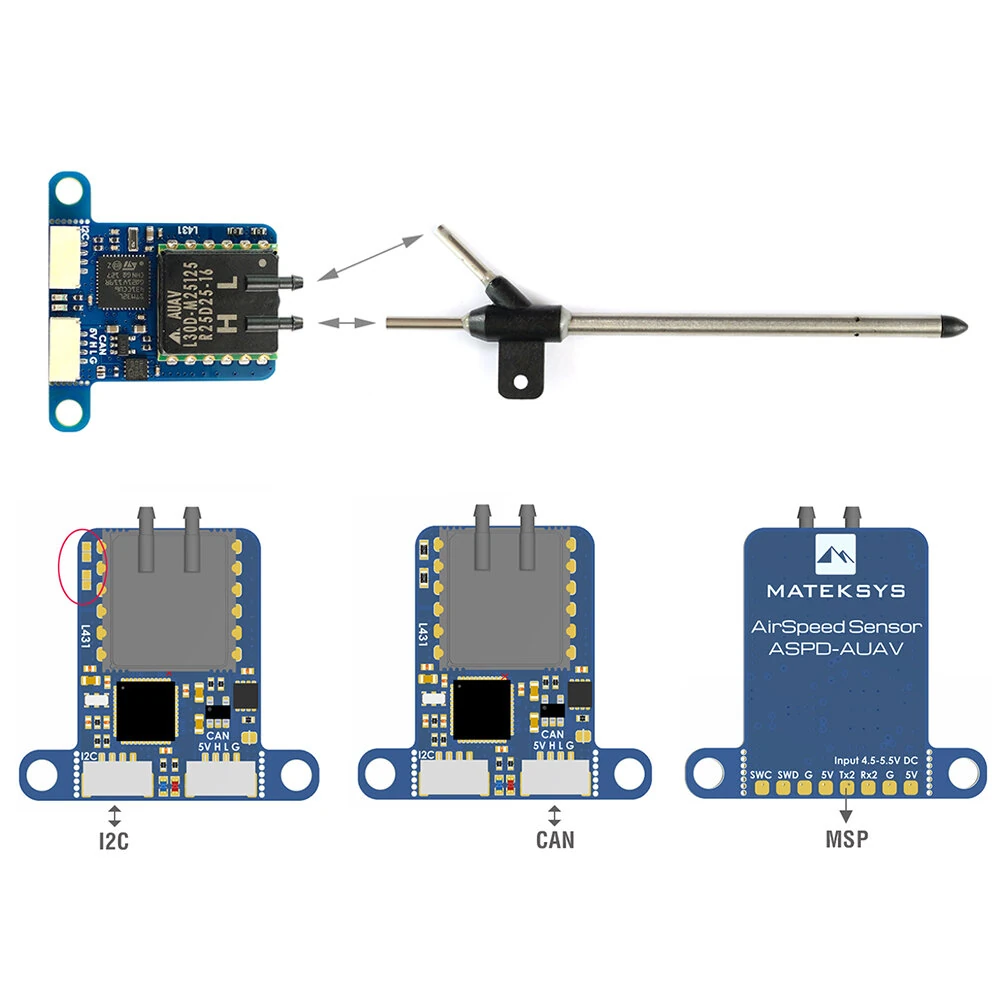

MATEK ASPD-AUAV Digital Airspeed Sensor AUAV-L30D L431 CAN Node All Sensors for RC FPV Fixed Wing RC Airplane
1 in stock
- SKU : 2041918
- Condition : New
- Brand : MATEK
- Processing Time : Ships Within 24-48 Hours
- Return Policy : 30-day refund or replacement
$188.99 $269.99

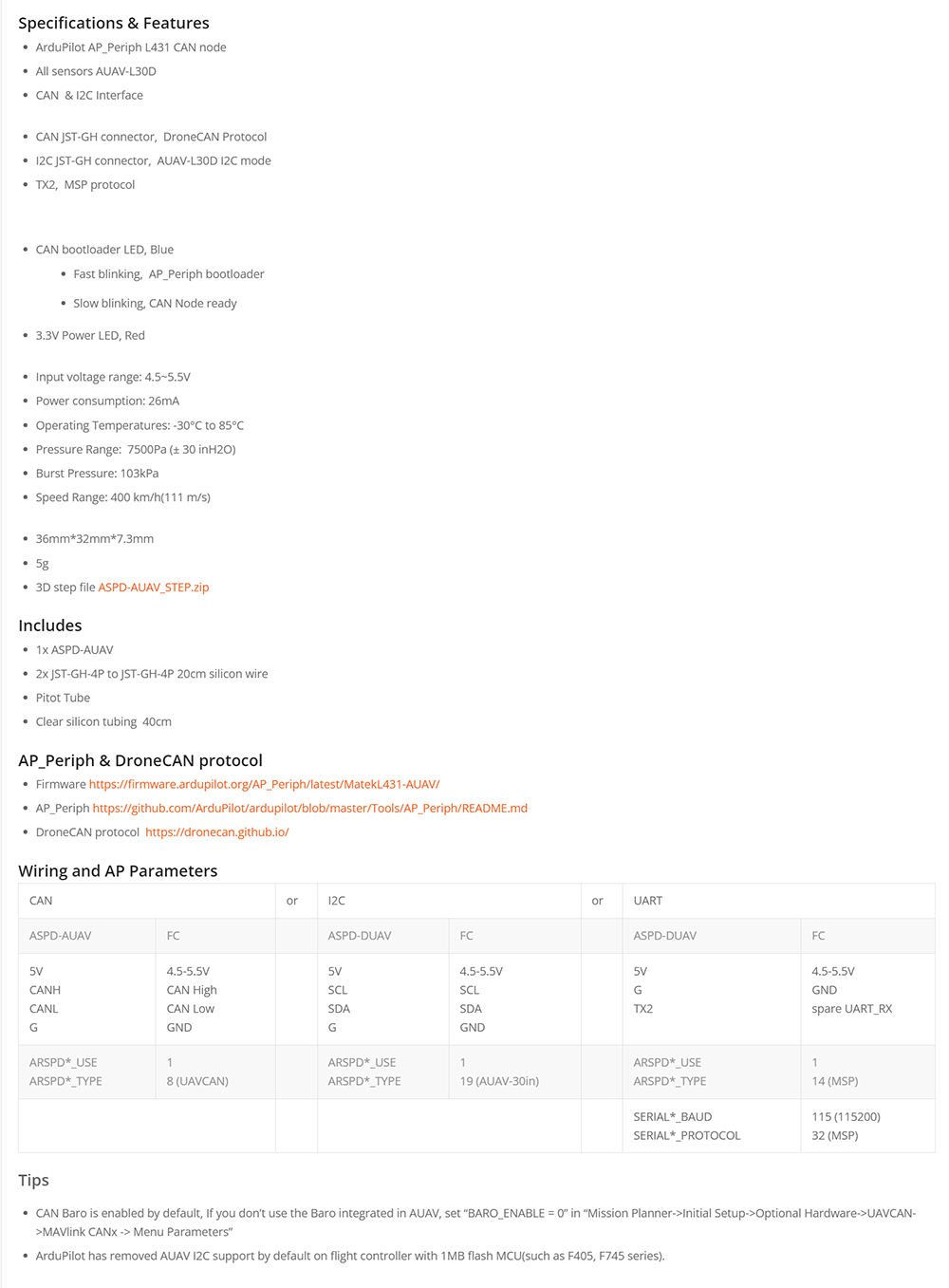

Specification:
Brand: MATEK
Model: Digital Airspeed Sensor ASPD-AUAV
Input Voltage Range: 4.5~5.5V
Power Consumption: 26mA
Operating Temperatures: -30°C to 85°C
Pressure Range: 7500Pa (± 30 inH2O)
Burst Pressure: 103kPa
Speed Range: 400 km/h(111 m/s)

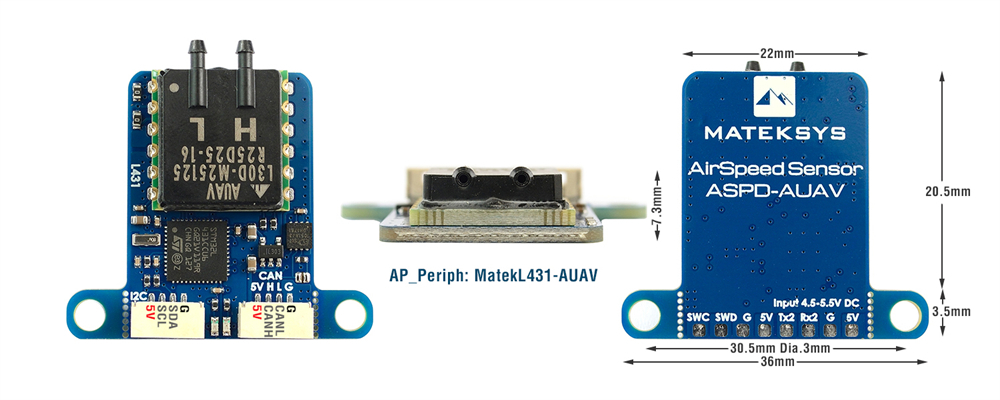

Size: 36mm*32mm*7.3mm
Weight: 5g
3D step file ASPD-AUAV_STEP.zip
Features:
– ArduPilot AP_Periph L431 CAN node
– All sensors AUAV-L30D

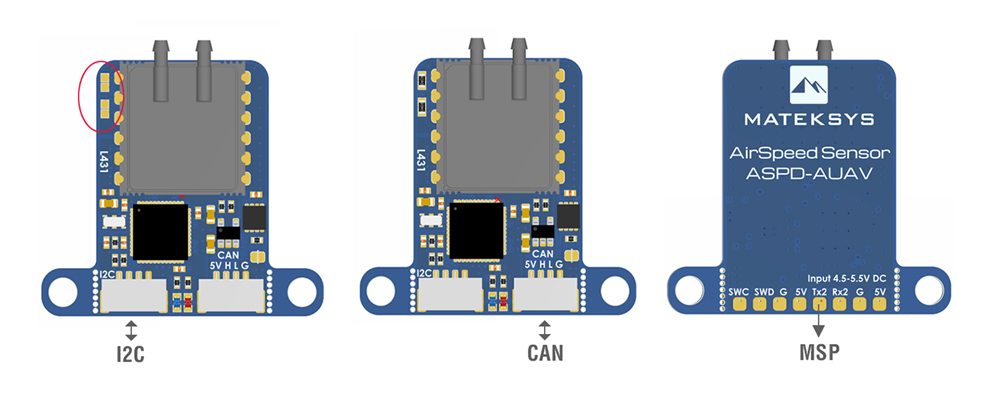

– CAN & I2C Interface
– CAN JST-GH connector, DroneCAN Protocol
– I2C JST-GH connector, AUAV-L30D I2C mode
– TX2, MSP protocol
– CAN bootloader LED, Blue
– Fast blinking, AP_Periph bootloader
– Slow blinking, CAN Node ready
– 3.3V Power LED, Red
AP_Periph & DroneCAN Protocol
Firmware, Click Here
AP_Periph, Click Here
DroneCAN protocol, Click Here
Package Included:
1 x ASPD-AUAV
2 x JST-GH-4P to JST-GH-4P 20cm silicon wire

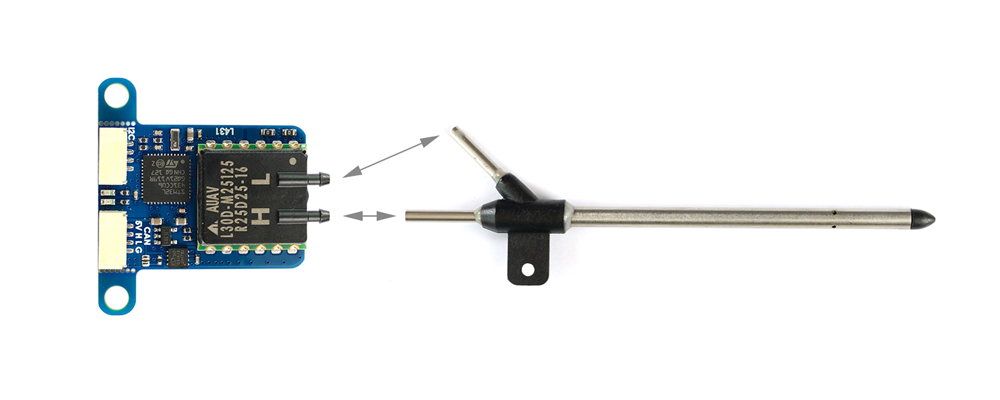

1 x Pitot Tube
1 x Clear silicon tubing 40cm
